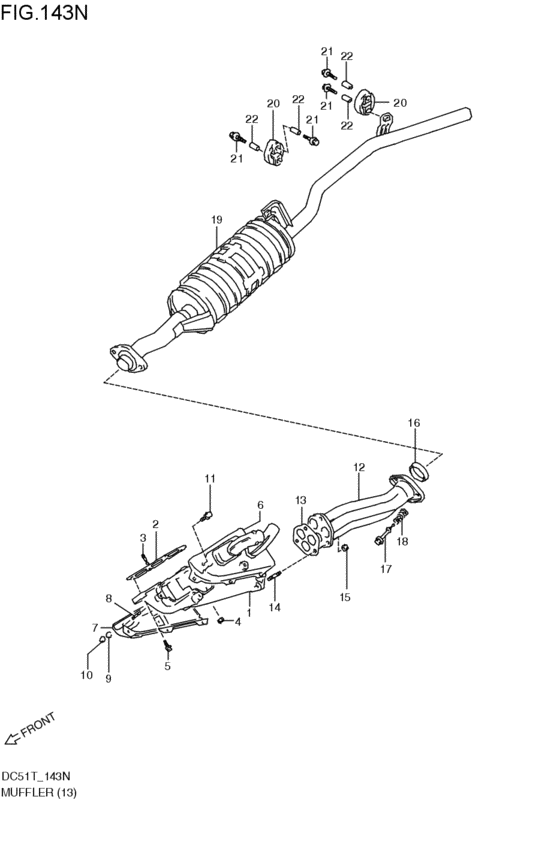

muffler (C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1995 - 2011
- Sales region
- Japan
- supercharge
- CARB
- drive
- P4WD
- transmission
- MT
- grade
- NSB
- number of the gears
- EL+5MT
- type
- TYPE4
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-75D00-000
MANIFOLD,EXH
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14111-75D00-000 |
— | ||
|
2
|
2
14141-63F00-000 GASKET,EXH MANFC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14141-63F00-000 |
US $43.20 |
||
|
3
|
3
14119-81402-000 STUD BOLTC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14119-81402-000 |
US $2.72 |
||
|
4
|
4
08310-00083-000
Nut
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUTC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
01500-08253-000
Bolt
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01500-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0825A-000 BoltC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01500-0825A-000 |
from US $0.91 |
||
|
6
|
6
14120-65C21-000
カバー,エキゾーストマニホールド
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14120-65C21-000 |
— | ||
| replacement | |||||
|
6
|
6
14120-65C2V-000
COVER,EXH MANF,UPPER
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14120-65C2V-000 |
— | ||
|
7
|
7
14131-65C00-000
COVER,EXH LOWER
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14131-65C00-000 |
— | ||
|
8
|
8
01411-06123-000
Bolt, stud
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0612A-000 BOLT,STUDC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01411-0612A-000 |
from US $0.67 |
||
|
9
|
9
08322-01063-000
Washer
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08322-01063-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHERC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
08310-00063-000
Nut
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUTC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
09103-06168-000 BOLT(6X10)C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09103-06168-000 |
from US $1.01 |
||
|
12
|
12
14190-85001-000
パイプ,エキゾースト
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14190-85001-000 |
— | ||
| replacement | |||||
|
12
|
12
14190-8500V-000
PIPE,EXHAUST
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14190-8500V-000 |
— | ||
|
13
|
13
14181-85000-000
ガスケット,エキゾーストパイプ
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14181-85000-000 |
— | ||
| replacement | |||||
|
13
|
13
14181-85001-000
GASKET,EXH PIPE
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14181-85001-000 |
— | ||
|
14
|
14
01411-10253-000
New Genuine Part
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01411-10253-000 |
— | ||
| replacement | |||||
|
14
|
14
01411-1025A-000 BOLT,STUDC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01411-1025A-000 |
US $1.60 |
||
|
15
|
15
09159-10016-000 NUTNut, clamp bracket C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09159-10016-000 |
US $2.24 |
||
|
16
|
16
14183-82601-000
リング,シール
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14183-82601-000 |
— | ||
| replacement | |||||
|
16
|
16
14183-76A00-000 RING,SEAL EXH PIPEC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14183-76A00-000 |
from US $11.57 |
||
|
17
|
17
09119-10042-000
ボルト,10X65
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
17
|
17
09119-10041-000 BOLT(10X65)C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09119-10041-000 |
from US $5.92 |
||
|
18
|
18
14492-82600-000
Spring
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
18
|
18
14492-67D00-000 SPRING,EXH PIPEC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14492-67D00-000 |
from US $5.69 |
||
|
19
|
19
14300-53F20-000
マフラ
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14300-53F20-000 |
— | ||
| replacement | |||||
|
19
|
19
14300-53F2V-000
マフラ
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14300-53F2V-000 |
— | ||
|
20
|
20
14281-79010-000
Mounting, muffler
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
20
|
20
14281-60G11-000 MOUNTING,MUFFLER(HS60)C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
14281-60G11-000 |
US $5.78 |
||
|
21
|
21
01550-08353-000
Bolt, rear
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 BOLTC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
21
|
21
01550-0835A-000 BOLTC:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
09180-08057-000
Spacer
C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
22
|
22
09180-08227-000 SPACER(8.2X12.5X23.5)C:P4WD:KA:TYPE4; 1995-05-01~1997-03-01 |
09180-08227-000 |
from US $1.92 |
||
