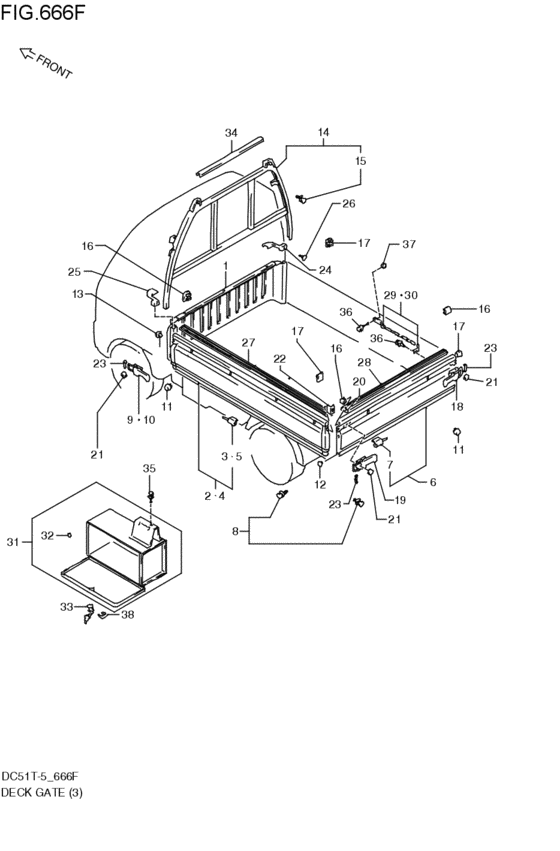

deck gate (C:K:KL; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- P4WD
- transmission
- MT
- grade
- KL
- number of the gears
- 2X4MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66600-51F00-000
Panel assy,deck front
C:K:KL; 1997-04-01~1998-11-01 |
66600-51F00-000 |
— | ||
|
2
|
2
67100-51F00-000
PANEL ASSY,SIDE GATE,R
C:K:KL; 1997-04-01~1998-11-01 |
67100-51F00-000 |
— | ||
|
3
|
3
67120-60C00-000
Hinge, gate
C:K:KL; 1997-04-01~1998-11-01 |
67120-60C00-000 |
— | ||
| replacement | |||||
|
3
|
3
67120-60C01-000 HINGE,GATEC:K:KL; 1997-04-01~1998-11-01 |
67120-60C01-000 |
US $10.56 |
||
|
4
|
4
67400-51F00-000 PANEL ASSY,SIDE GATE,LC:K:KL; 1997-04-01~1998-11-01 |
67400-51F00-000 |
US $520.96 |
||
|
5
|
5
67420-60C00-000
Hinge, gate
C:K:KL; 1997-04-01~1998-11-01 |
67420-60C00-000 |
— | ||
| replacement | |||||
|
5
|
5
67420-60C01-000 HINGE,GATEC:K:KL; 1997-04-01~1998-11-01 |
67420-60C01-000 |
US $10.03 |
||
|
6
|
6
67700-52F20-000
パネルアッシ,リヤゲート
C:K:KL; 1997-04-01~1998-11-01 |
67700-52F20-000 |
— | ||
|
7
|
7
67120-60C00-000
Hinge, gate
C:K:KL; 1997-04-01~1998-11-01 |
67120-60C00-000 |
— | ||
| replacement | |||||
|
7
|
7
67120-60C01-000 HINGE,GATEC:K:KL; 1997-04-01~1998-11-01 |
67120-60C01-000 |
US $10.56 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
C:K:KL; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt C:K:KL; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket C:K:KL; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
72840-51F01-000 HANDLE,SIDE GATE LOCKC:K:KL; 1997-04-01~1998-11-01 |
72840-51F01-000 |
US $31.20 |
||
|
10
|
10
72840-51F01-000 HANDLE,SIDE GATE LOCKC:K:KL; 1997-04-01~1998-11-01 |
72840-51F01-000 |
US $31.20 |
||
|
11
|
11
73941-79001-000
Stopper, gate open
C:K:KL; 1997-04-01~1998-11-01 |
73941-79001-000 |
— | ||
| replacement | |||||
|
11
|
11
73941-79010-000 STOPPER,GATE OPENC:K:KL; 1997-04-01~1998-11-01 |
73941-79010-000 |
from US $5.25 |
||
|
12
|
12
72866-60C00-000 STOPPER,REAR GATE OPENC:K:KL; 1997-04-01~1998-11-01 |
72866-60C00-000 |
US $5.12 |
||
|
13
|
13
09321-08005-000
CUSHION
C:K:KL; 1997-04-01~1998-11-01 |
09321-08005-000 |
— | ||
| replacement | |||||
|
13
|
13
09321-08025-000 CushionC:K:KL; 1997-04-01~1998-11-01 |
09321-08025-000 |
from US $1.76 |
||
|
14
|
14
65930-52811-26U
ガードセット,キャビンバック(ホワイト)
ホワイト; C:K:KL; 1997-04-01~1998-11-01 |
65930-52811-26U |
— | ||
| replacement | |||||
|
14
|
14
65930-52812-26U
ガードセット,キャビンバック(ホワイト)
ホワイト; C:K:KL; 1997-04-01~1998-11-01 |
65930-52812-26U |
— | ||
|
15
|
15
01550-08123-000
Bolt
C:K:KL; 1997-04-01~1998-11-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0812B-000 BoltPlug, drain C:K:KL; 1997-04-01~1998-11-01 |
01550-0812B-000 |
from US $0.96 |
||
|
15
|
15
01550-0812A-000 BOLTC:K:KL; 1997-04-01~1998-11-01 |
01550-0812A-000 |
from US $0.91 |
||
|
16
|
16
72861-51FF0-000 CAP,GATE PANEL,RC:K:KL; 1997-04-01~1998-11-01 |
72861-51FF0-000 |
US $2.59 |
||
|
17
|
17
72862-51FF0-000 CAP,GATE PANEL,LC:K:KL; 1997-04-01~1998-11-01 |
72862-51FF0-000 |
US $2.59 |
||
|
18
|
18
72870-51F01-000 HANDLE,REAR GATE LOCKC:K:KL; 1997-04-01~1998-11-01 |
72870-51F01-000 |
US $31.20 |
||
|
19
|
19
72870-51F01-000 HANDLE,REAR GATE LOCKC:K:KL; 1997-04-01~1998-11-01 |
72870-51F01-000 |
US $31.20 |
||
|
20
|
20
03541-05123-000
Screw
C:K:KL; 1997-04-01~1998-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03541-0512B-000 SCREWC:K:KL; 1997-04-01~1998-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
21
|
21
08316-10063-000
Nut
C:K:KL; 1997-04-01~1998-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1006B-000 NUTC:K:KL; 1997-04-01~1998-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
22
|
22
72867-60C00-000 PROTECTOR,SIDE GATE RRC:K:KL; 1997-04-01~1998-11-01 |
72867-60C00-000 |
US $2.08 |
||
|
23
|
23
72893-70D00-000 PROTECTOR,GATE LOCK HANDLEC:K:KL; 1997-04-01~1998-11-01 |
72893-70D00-000 |
US $1.60 |
||
|
24
|
24
72897-51FF0-000
COVER,DECK FR PILLAR UPPER,R
C:K:KL; 1997-04-01~1998-11-01 |
72897-51FF0-000 |
— | ||
|
25
|
25
72898-51FF0-000
COVER,DECK FR PILLAR UPPER,L
C:K:KL; 1997-04-01~1998-11-01 |
72898-51FF0-000 |
— | ||
|
26
|
26
09409-06318-000 CLIPC:K:KL; 1997-04-01~1998-11-01 |
09409-06318-000 |
US $12.90 |
||
|
27
|
27
72891-52F10-000
プロテクタ,サイドゲート,アッパ
サユウセット; C:K:KL; 1997-04-01~1998-11-01 |
72891-52F10-000 |
— | ||
|
28
|
28
72892-60C60-000
プロテクタ,リヤゲート,アッパ
C:K:KL; 1997-04-01~1998-11-01 |
72892-60C60-000 |
— | ||
|
29
|
29
72910-60C60-000
チェーン,リヤゲート,ライト
C:K:KL; 1997-04-01~1998-11-01 |
72910-60C60-000 |
— | ||
|
30
|
30
72920-60C60-000
チェーン,リヤゲート,レフト
C:K:KL; 1997-04-01~1998-11-01 |
72920-60C60-000 |
— | ||
|
31
|
31
93101-52F10-26U
ロッカアッシ,ツール(ホワイト)
ホワイト; C:K:KL; 1997-04-01~1998-11-01 |
93101-52F10-26U |
— | ||
|
32
|
32
72831-85010-000 CUSHION,FIXED STAYC:K:KL; 1997-04-01~1998-11-01 |
72831-85010-000 |
US $1.62 |
||
|
33
|
33
93100-52811-000
シリンダ,ツールロッカ
C:K:KL; 1997-04-01~1998-11-01 |
93100-52811-000 |
— | ||
|
34
|
34
93313-85061-000
ガード,バー,アッパ
C:K:KL; 1997-04-01~1998-11-01 |
93313-85061-000 |
— | ||
|
35
|
35
09118-06106-000 BOLT(6X16)C:K:KL; 1997-04-01~1998-11-01 |
09118-06106-000 |
from US $1.15 |
||
|
36
|
36
02162-06163-000
Screw
C:K:KL; 1997-04-01~1998-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
36
|
36
02162-0616B-000 SCREWBolt, adjust C:K:KL; 1997-04-01~1998-11-01 |
02162-0616B-000 |
from US $0.80 |
||
|
37
|
37
08316-10063-000
Nut
C:K:KL; 1997-04-01~1998-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
37
|
37
08316-1006B-000 NUTC:K:KL; 1997-04-01~1998-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
38
|
38
82577-70B01-000 CLIP,CYLINDERC:K:KL; 1997-04-01~1998-11-01 |
82577-70B01-000 |
US $3.72 |
||
