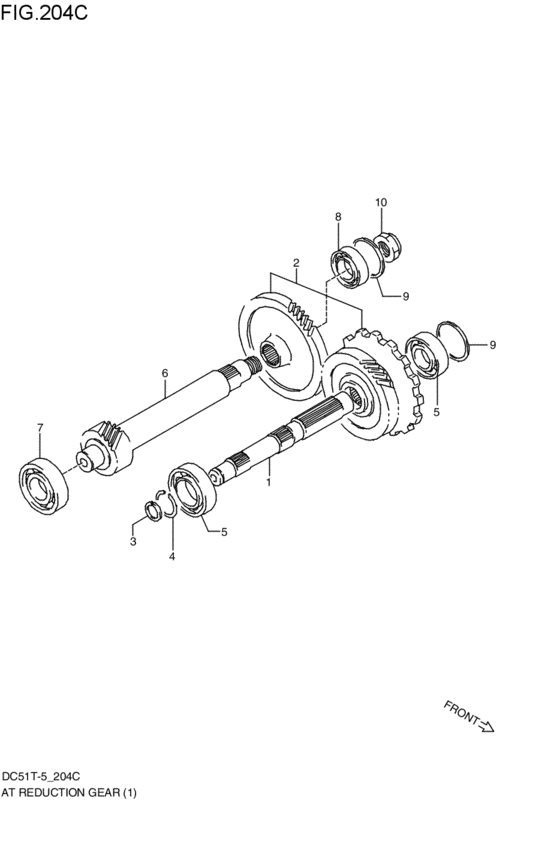

at - reduction gear (V:AT:2WD; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- grade
- PAL
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-51F00-000
シャフト,アウトプツト
V:AT:2WD; 1997-04-01~1998-11-01 |
24121-51F00-000 |
— | ||
|
2
|
2
24120-51FT0-000
ギヤセット,リダクション
V:AT:2WD; 1997-04-01~1998-11-01 |
24120-51FT0-000 |
— | ||
|
3
|
3
09288-15601-000 RINGV:AT:2WD; 1997-04-01~1998-11-01 |
09288-15601-000 |
US $56.70 |
||
|
4
|
4
09380-20015-000 RINGV:AT:2WD; 1997-04-01~1998-11-01 |
09380-20015-000 |
US $53.70 |
||
|
5
|
5
24135-61D00-000 ベアリングV:AT:2WD; 1997-04-01~1998-11-01 |
24135-61D00-000 |
US $24.19 |
||
| replacement | |||||
|
5
|
5
09262-20106-000 BEARING(20X42X12)Bearing V:AT:2WD; 1997-04-01~1998-11-01 |
09262-20106-000 |
from US $11.20 |
||
|
6
|
6
24131-51F00-000
シャフト,カウンタ
V:AT:2WD:4V; 1997-04-01~1998-11-01 |
24131-51F00-000 |
— | ||
|
7
|
7
09262-22025-000 BEARING(22X56X16)B1 22x56x16 bearing rh V:AT:2WD; 1997-04-01~1998-11-01 |
09262-22025-000 |
from US $34.96 |
||
|
8
|
8
24135-61D00-000 ベアリングV:AT:2WD; 1997-04-01~1998-11-01 |
24135-61D00-000 |
US $24.19 |
||
| replacement | |||||
|
8
|
8
09262-20106-000 BEARING(20X42X12)Bearing V:AT:2WD; 1997-04-01~1998-11-01 |
09262-20106-000 |
from US $11.20 |
||
|
9
|
9
09170-34401-040 SHIM(34X40X0.4)V:AT:2WD; 1997-04-01~1998-11-01 |
09170-34401-040 |
US $37.90 |
||
|
9
|
9
09170-34401-050 SHIM(34X40X0.5)V:AT:2WD; 1997-04-01~1998-11-01 |
09170-34401-050 |
US $37.90 |
||
|
9
|
9
09170-34401-060
Shim,34x40x0.6
V:AT:2WD; 1997-04-01~1998-11-01 |
09170-34401-060 |
— | ||
|
9
|
9
09170-34401-070
SHIM(34X40X0.7)
V:AT:2WD; 1997-04-01~1998-11-01 |
09170-34401-070 |
— | ||
|
10
|
10
09159-16017-000 NUTV:AT:2WD; 1997-04-01~1998-11-01 |
09159-16017-000 |
US $42.70 |
||
