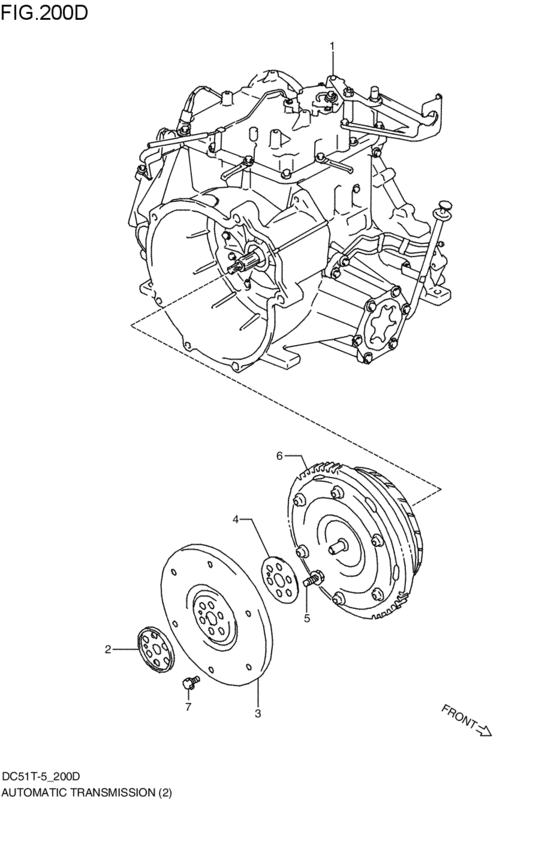

at - transmission assy (V:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- grade
- PAL
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-51F01-000
トランスミッションアッシ,オートマチック
V:AT:4V:2WD; 1997-04-01~1997-04-01 |
20002-51F01-000 |
— | ||
|
1
|
1
20002-51F01-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; V:AT:4V:2WD; 1997-04-01~1997-04-01 |
20002-51F01-111 |
— | ||
|
1
|
1
20002-51F10-000
トランスミッションアッシ,オートマチック
V:AT:4V:2WD; 1997-04-01~1998-11-01 |
20002-51F10-000 |
— | ||
|
1
|
1
20002-51F10-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; V:AT:4V:2WD; 1997-04-01~1998-11-01 |
20002-51F10-111 |
— | ||
|
2
|
2
22611-55A11-000 FLANGE,T/C DRIVE PLATEV:AT; 1997-04-01~1998-11-01 |
22611-55A11-000 |
US $48.21 |
||
|
3
|
3
22621-51F00-000
プレート,トルクコンバータドライブ
V:AT; 1997-04-01~1998-11-01 |
22621-51F00-000 |
— | ||
|
4
|
4
22631-78131-000 PLATE,DRIVE REARV:AT; 1997-04-01~1998-11-01 |
22631-78131-000 |
US $11.89 |
||
|
5
|
5
09103-10097-000 BOLT(10X17)V:AT; 1997-04-01~1998-11-01 |
09103-10097-000 |
US $1.12 |
||
|
6
|
6
22710-51F00-000
コンバータ,トルク
V:AT:4V; 1997-04-01~1998-11-01 |
22710-51F00-000 |
— | ||
|
7
|
7
09103-08335-000
Bolt
V:AT; 1997-04-01~1998-11-01 |
09103-08335-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-08421-000 BOLT(8X9.5)V:AT; 1997-04-01~1998-11-01 |
09103-08421-000 |
from US $5.61 |
||
