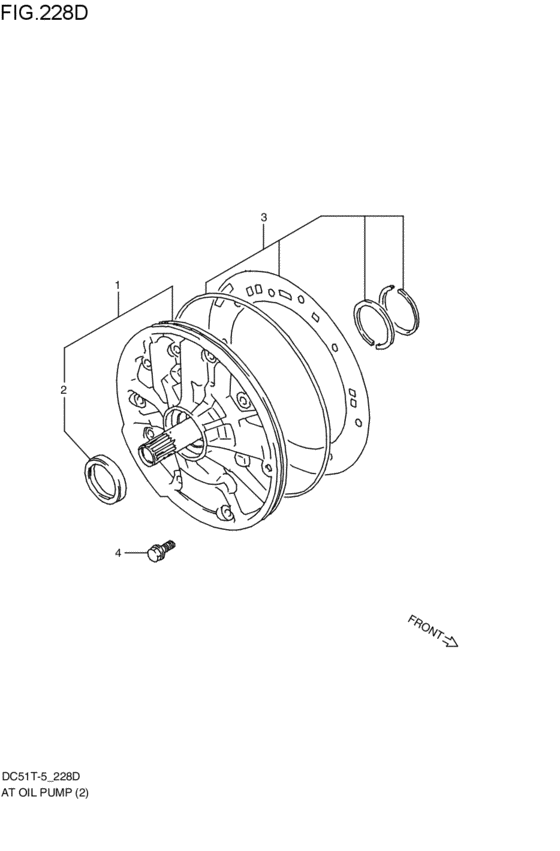

at - oil pump (V:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- grade
- PAQ
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-51F00-000
ポンプアッシ,オイル
V:AT; 1997-04-01~1998-11-01 |
22800-51F00-000 |
— | ||
|
2
|
2
09282-32005-000
Seal, oil (32x45x8)
V:AT; 1997-04-01~1998-11-01 |
09282-32005-000 |
— | ||
| replacement | |||||
|
2
|
2
29282-73H10-000 SEAL,INPUT SHAFT OILV:AT; 1997-04-01~1998-11-01 |
29282-73H10-000 |
from US $8.12 |
||
|
3
|
3
22860-51FT0-000
シールリングセット,オイル
V:AT; 1997-04-01~1998-11-01 |
22860-51FT0-000 |
— | ||
|
4
|
4
02162-06203-000
Bolt
V:AT; 1997-04-01~1998-11-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0620C-000 SCREWV:AT; 1997-04-01~1998-11-01 |
02162-0620C-000 |
from US $0.80 |
||
