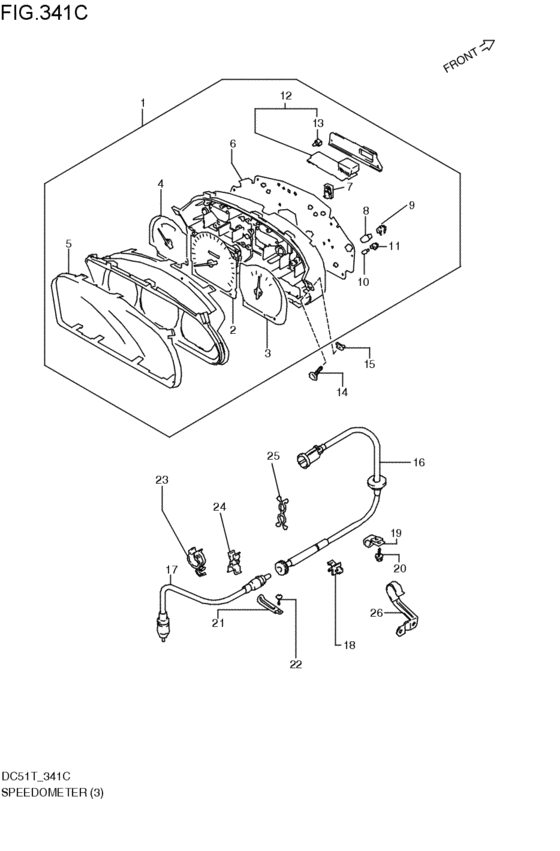

speed meter (V:2WD:(TYPE1,TYPE2); 1991-09-01~1993-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- P
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-54F22-000
スピードメータアッシ,コンビネーション
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1993-10-01 |
34100-54F22-000 |
— | ||
|
2
|
2
34120-53F20-000
ボディアッシ,スピードメータ
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1991-10-01 |
34120-53F20-000 |
— | ||
| replacement | |||||
|
2
|
2
34120-53F21-000
ボディアッシ,スピードメータ
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1991-10-01 |
34120-53F21-000 |
— | ||
|
2
|
2
34120-53F21-000
ボディアッシ,スピードメータ
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1993-10-01 |
34120-53F21-000 |
— | ||
|
3
|
3
34320-53F20-000
ボディアッシ,フューエルメータ
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1993-10-01 |
34320-53F20-000 |
— | ||
|
4
|
4
34420-53F20-000
ボディアッシ,テンパレチャメータ
V:2WD:(TYPE1,TYPE2):(GA,PA):AT; 1991-09-01~1993-10-01 |
34420-53F20-000 |
— | ||
|
5
|
5
34112-51F10-000
ガラス,メータウィンド
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
34112-51F10-000 |
— | ||
|
6
|
6
34152-61FG1-000
プレート,プリンテッド
V:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34152-61FG1-000 |
— | ||
|
7
|
7
34155-50E10-000 CIRCUIT,ABS WARNINGV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
34155-50E10-000 |
US $40.48 |
||
|
8
|
8
34171-50E10-000 BULB,12V 3.4WV:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34171-50E10-000 |
US $5.48 |
||
|
9
|
9
34172-50E10-000 SOCKETV:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34172-50E10-000 |
US $1.60 |
||
|
10
|
10
09471-12055-000 BULB(14V1.4W,T5)V:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
09471-12055-000 |
from US $2.40 |
||
|
11
|
11
34175-78900-000 SOCKETブラック; V:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34175-78900-000 |
US $1.52 |
||
|
12
|
12
34156-55F20-000 PLATE,SHIFT INDICATORV:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34156-55F20-000 |
US $94.58 |
||
|
13
|
13
34171-50E00-000 BULB,14V 1.12WV:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34171-50E00-000 |
US $6.70 |
||
|
14
|
14
03541-05163-000
Screw
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0516A-000 SCREWV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
03541-0516A-000 |
from US $0.76 |
||
|
15
|
15
09148-05013-000 NUTV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09148-05013-000 |
from US $0.91 |
||
|
16
|
16
34910-50F00-000
CABLE ASSY,SPEEDOMETER
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
34910-50F00-000 |
— | ||
|
17
|
17
34911-50F30-000
ケーブルアッシ,スピードメータ,NO.2
V:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
34911-50F30-000 |
— | ||
|
18
|
18
09403-07306-000 CLAMPClamp V:2WD:(TYPE1,TYPE2):AT:(GA,PA); 1991-09-01~1993-10-01 |
09403-07306-000 |
from US $2.56 |
||
|
19
|
19
09403-13408-000
CLAMP
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09403-13408-000 |
— | ||
| replacement | |||||
|
19
|
19
09403-13413-000 ClampV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09403-13413-000 |
from US $8.31 |
||
|
20
|
20
09132-06008-000 SCREW(6X12)V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09132-06008-000 |
US $12.90 |
||
|
21
|
21
09404-06435-000 CLAMP(L:135)V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09404-06435-000 |
from US $2.13 |
||
|
22
|
22
02112-06083-000
Screw
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
02112-06083-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-0608A-000 SCREWV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
02112-0608A-000 |
from US $0.76 |
||
|
23
|
23
09408-00109-000
Clamp
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09408-00109-000 |
— | ||
|
24
|
24
09408-00078-000 CLAMPClamp, evaporation hose V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09408-00078-000 |
from US $3.43 |
||
|
25
|
25
09408-00022-000 CLIPV:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1991-09-01~1993-10-01 |
09408-00022-000 |
US $9.90 |
||
|
26
|
26
34926-50F10-000
クランプ,スピードメータケーブル
V:2WD:(TYPE1,TYPE2):(GA,PA,GL,PL,PC); 1992-03-01~1993-10-01 |
34926-50F10-000 |
— | ||
