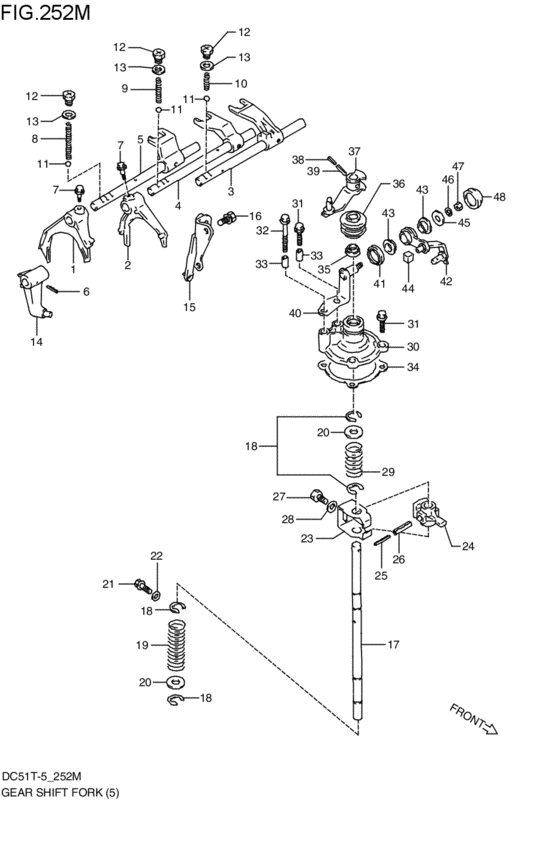

mt - gearlever fork (シフト/セレクトシャフト / フォーク; V:4MT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- grade
- PB
- number of the gears
- 4MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-50F00-000
FORK,LOW SPEED GEAR SHIFT
V:4MT; 1997-04-01~1998-11-01 |
25211-50F00-000 |
— | ||
|
2
|
2
25221-50F00-000
FORK,HIGH SPEED GEAR SHF
V:4MT; 1997-04-01~1998-11-01 |
25221-50F00-000 |
— | ||
|
3
|
3
25260-50F40-000
ヨークアッシ,リバースギヤシフト
V:4MT; 1997-04-01~1998-11-01 |
25260-50F40-000 |
— | ||
|
4
|
4
25280-50F00-000
YOKE ASSY,HIGH SPEED GEAR SHF
V:4MT; 1997-04-01~1998-11-01 |
25280-50F00-000 |
— | ||
|
5
|
5
25270-50F00-000
YOKE ASSY,LOW SPEED GEAR SHIFT
V:4MT; 1997-04-01~1998-11-01 |
25270-50F00-000 |
— | ||
|
6
|
6
09205-04001-000 PIN,SPRING(4.5X22)V:4MT; 1997-04-01~1998-11-01 |
09205-04001-000 |
from US $0.18 |
||
|
7
|
7
25291-70C00-000 BOLT,LOW&HIGH SPEED FORKV:4MT; 1997-04-01~1998-11-01 |
25291-70C00-000 |
from US $0.95 |
||
|
8
|
8
25415-50F00-000
Spring,low speed locating
V:4MT; 1997-04-01~1998-11-01 |
25415-50F00-000 |
— | ||
|
9
|
9
25425-60B10-000 SPRING,HIGH SPEED LOCATINGV:4MT; 1997-04-01~1998-11-01 |
25425-60B10-000 |
from US $1.92 |
||
|
10
|
10
25415-60B02-000 SPRING,LOW SPEED LOCATINGV:4MT; 1997-04-01~1998-11-01 |
25415-60B02-000 |
from US $1.71 |
||
|
11
|
11
06111-10003-000 BALLV:4MT; 1997-04-01~1998-11-01 |
06111-10003-000 |
from US $0.96 |
||
|
12
|
12
09128-10002-000 BOLT(10X9)V:4MT; 1997-04-01~1998-11-01 |
09128-10002-000 |
from US $0.47 |
||
|
13
|
13
08322-01103-000
Washer
V:4MT; 1997-04-01~1998-11-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0110B-000 WASHERWasher, knuckle end V:4MT; 1997-04-01~1998-11-01 |
08322-0110B-000 |
from US $0.76 |
||
|
13
|
13
08322-0110A-000 WASHERWasher, knuckle end V:4MT; 1997-04-01~1998-11-01 |
08322-0110A-000 |
from US $0.80 |
||
|
14
|
14
25251-50F40-000
アーム,リバースギヤシフト
V:4MT; 1997-04-01~1998-11-01 |
25251-50F40-000 |
— | ||
|
15
|
15
25460-50F00-000
LEVER,REV GEAR SHF
V:4MT; 1997-04-01~1998-11-01 |
25460-50F00-000 |
— | ||
|
16
|
16
09117-08070-000 BOLT(8X19)V:4MT; 1997-04-01~1998-11-01 |
09117-08070-000 |
US $19.10 |
||
|
17
|
17
25571-50FV0-000
SHAFT,GEAR SHIFT&SELECT
V:4MT; 1997-04-01~1998-11-01 |
25571-50FV0-000 |
— | ||
|
18
|
18
08332-11126-000
E ring
V:4MT; 1997-04-01~1998-11-01 |
08332-11126-000 |
— | ||
| replacement | |||||
|
18
|
18
08332-1112A-000 E RINGV:4MT; 1997-04-01~1998-11-01 |
08332-1112A-000 |
from US $0.96 |
||
|
19
|
19
25576-60D00-000 SPRING,SPEED SELECTV:4MT; 1997-04-01~1998-11-01 |
25576-60D00-000 |
from US $1.67 |
||
|
20
|
20
08212-14301-000 WASHERV:4MT; 1997-04-01~1998-11-01 |
08212-14301-000 |
from US $0.77 |
||
|
21
|
21
25584-70C00-000
Bolt,5th to rev guide
V:4MT; 1997-04-01~1998-11-01 |
25584-70C00-000 |
— | ||
| replacements | |||||
|
21
|
21
25584-51KA0-000
BOLT,5TH TO REV INTLK GUIDE
V:4MT; 1997-04-01~1998-11-01 |
25584-51KA0-000 |
— | ||
|
21
|
21
25584-51KA1-000 Bolt,5Th To Rev Intlk GuideV:4MT; 1997-04-01~1998-11-01 |
25584-51KA1-000 |
US $2.90 |
||
|
22
|
22
08322-01083-000
WASHER
V:4MT; 1997-04-01~1998-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
22
|
22
08322-0108B-000 WASHERV:4MT; 1997-04-01~1998-11-01 |
08322-0108B-000 |
from US $0.96 |
||
|
22
|
22
08322-0108A-000 WASHERV:4MT; 1997-04-01~1998-11-01 |
08322-0108A-000 |
from US $0.96 |
||
|
23
|
23
25311-60B20-000 PLATE,GEAR SHF INTERLOCKV:4MT; 1997-04-01~1998-11-01 |
25311-60B20-000 |
from US $5.92 |
||
|
24
|
24
25541-74B00-000 LEVER,GEAR SHF&SLTV:4MT; 1997-04-01~1998-11-01 |
25541-74B00-000 |
from US $17.93 |
||
|
25
|
25
09205-03016-000 PIN,SPRING(3.5X28)V:4MT; 1997-04-01~1998-11-01 |
09205-03016-000 |
from US $0.41 |
||
|
26
|
26
09205-06004-000 PIN,SPRING(6X28)V:4MT; 1997-04-01~1998-11-01 |
09205-06004-000 |
from US $0.36 |
||
|
27
|
27
25321-60B01-000 BOLT,GEAR SHF INTERLOCKV:4MT; 1997-04-01~1998-11-01 |
25321-60B01-000 |
from US $1.73 |
||
|
28
|
28
08322-01103-000
Washer
V:4MT; 1997-04-01~1998-11-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
28
|
28
08322-0110B-000 WASHERWasher, knuckle end V:4MT; 1997-04-01~1998-11-01 |
08322-0110B-000 |
from US $0.76 |
||
|
28
|
28
08322-0110A-000 WASHERWasher, knuckle end V:4MT; 1997-04-01~1998-11-01 |
08322-0110A-000 |
from US $0.80 |
||
|
29
|
29
25577-60D01-000 SPRING,REVERSE SELECTV:4MT; 1997-04-01~1998-11-01 |
25577-60D01-000 |
US $3.86 |
||
|
30
|
30
25573-50F00-000
CASE,GEAR SHF GUIDE
V:4MT; 1997-04-01~1998-11-01 |
25573-50F00-000 |
— | ||
|
31
|
31
01550-08253-000
Bolt, rear
V:4MT; 1997-04-01~1998-11-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0825B-000 BoltV:4MT; 1997-04-01~1998-11-01 |
01550-0825B-000 |
from US $1.06 |
||
|
31
|
31
01550-0825A-000 BoltV:4MT; 1997-04-01~1998-11-01 |
01550-0825A-000 |
from US $0.47 |
||
|
32
|
32
09103-08154-000
ボルト,8X45
V:4MT; 1997-04-01~1998-11-01 |
09103-08154-000 |
— | ||
| replacement | |||||
|
32
|
32
09103-08366-000 BOLT(8X45)V:4MT; 1997-04-01~1998-11-01 |
09103-08366-000 |
US $1.68 |
||
|
33
|
33
04211-11129-000 PINV:4MT; 1997-04-01~1998-11-01 |
04211-11129-000 |
from US $0.99 |
||
|
34
|
34
25574-74B00-000 GASKET,GEAR SHF GUIDE CASEV:4MT; 1997-04-01~1998-11-01 |
25574-74B00-000 |
from US $2.25 |
||
|
35
|
35
09283-14006-000 SEAL,OIL(14X22X6)V:4MT; 1997-04-01~1998-11-01 |
09283-14006-000 |
from US $3.87 |
||
|
36
|
36
25651-74B00-000 BOOT,SHIFT&SELECT SFT OILV:4MT; 1997-04-01~1998-11-01 |
25651-74B00-000 |
from US $4.84 |
||
|
37
|
37
25610-50F11-000
レバー,シフトケーブル
V:4MT; 1997-04-01~1998-11-01 |
25610-50F11-000 |
— | ||
| replacement | |||||
|
37
|
37
25610-80G00-000 LEVER,SHIFT CABLEV:4MT; 1997-04-01~1998-11-01 |
25610-80G00-000 |
from US $37.13 |
||
|
38
|
38
09205-03037-000 PIN,SPRING(3X25)V:4MT; 1997-04-01~1998-11-01 |
09205-03037-000 |
from US $0.77 |
||
|
39
|
39
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) V:4MT; 1997-04-01~1998-11-01 |
09205-06007-000 |
from US $1.04 |
||
|
40
|
40
25630-50F00-000
BRACKET,SELECT LEVER
V:4MT; 1997-04-01~1998-11-01 |
25630-50F00-000 |
— | ||
|
41
|
41
25624-74B00-000 BOOT,SEL LEVER INSIDEV:4MT; 1997-04-01~1998-11-01 |
25624-74B00-000 |
from US $1.04 |
||
|
42
|
42
25620-50F00-000
Lever comp,select cable
V:4MT; 1997-04-01~1998-11-01 |
25620-50F00-000 |
— | ||
|
43
|
43
25558-74B01-000 BUSH,SEL LEVER BOSSV:4MT; 1997-04-01~1998-11-01 |
25558-74B01-000 |
from US $1.60 |
||
|
44
|
44
25559-50F00-000 BUSH,SELECT LEVER SHAFTV:4MT; 1997-04-01~1998-11-01 |
25559-50F00-000 |
from US $4.21 |
||
|
45
|
45
09160-08133-000
Washer
V:4MT; 1997-04-01~1998-11-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
45
|
45
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) V:4MT; 1997-04-01~1998-11-01 |
09160-08151-000 |
from US $0.91 |
||
|
46
|
46
08321-01083-000
Lock washer
V:4MT; 1997-04-01~1998-11-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
46
|
46
08321-0108B-000 WASHER,LOCKV:4MT; 1997-04-01~1998-11-01 |
08321-0108B-000 |
from US $0.76 |
||
|
46
|
46
08321-0108A-000 WASHER,LOCKV:4MT; 1997-04-01~1998-11-01 |
08321-0108A-000 |
from US $0.88 |
||
|
47
|
47
08310-00083-000
Nut
V:4MT; 1997-04-01~1998-11-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
47
|
47
08310-0008B-000 NUTV:4MT; 1997-04-01~1998-11-01 |
08310-0008B-000 |
from US $0.96 |
||
|
47
|
47
08310-0008A-000 NUTNut, bead stopper V:4MT; 1997-04-01~1998-11-01 |
08310-0008A-000 |
from US $0.76 |
||
|
48
|
48
25625-74B00-000 BOOT,SEL LEVER OUTSIDEV:4MT; 1997-04-01~1998-11-01 |
25625-74B00-000 |
from US $1.04 |
||
