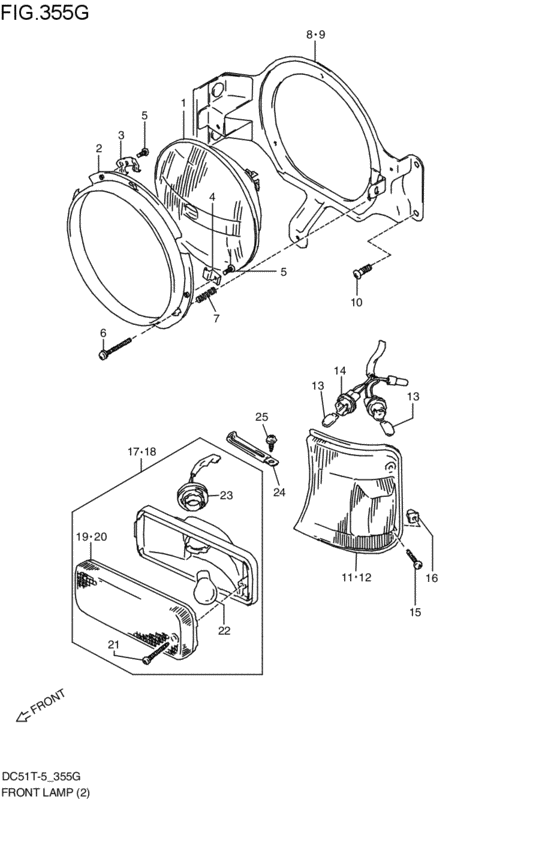

front lamp (フロントランプ; KAC,PGC; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- grade
- PGC
- number of the gears
- 5MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-85011-000
ユニット,ランプ
KAC,PGC; 1997-04-01~1998-11-01 |
35121-85011-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-83021-000 UNIT,LAMPKAC,PGC; 1997-04-01~1998-11-01 |
35121-83021-000 |
US $256 |
||
|
2
|
2
35131-50F00-000
RING,RETAINER
KAC,PGC; 1997-04-01~1998-11-01 |
35131-50F00-000 |
— | ||
|
3
|
3
35132-72600-000 PLATE,NO.2KAC,PGC; 1997-04-01~1998-11-01 |
35132-72600-000 |
US $1.60 |
||
|
4
|
4
35136-72600-000 PLATE,NO.3KAC,PGC; 1997-04-01~1998-11-01 |
35136-72600-000 |
US $1.60 |
||
|
5
|
5
02112-04087-000 SCREWKAC,PGC; 1997-04-01~1998-11-01 |
02112-04087-000 |
from US $0.80 |
||
|
6
|
6
35151-80C10-000
スクリュ,ヘッドランプ
KAC,PGC; 1997-04-01~1998-11-01 |
35151-80C10-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-45002-000 SCREW(5X45)KAC,PGC; 1997-04-01~1998-11-01 |
09122-45002-000 |
US $2.24 |
||
|
7
|
7
35154-80C00-000
スプリング,ヘッドランプ
KAC,PGC; 1997-04-01~1998-11-01 |
35154-80C00-000 |
— | ||
| replacement | |||||
|
7
|
7
35154-80C01-000 SPRING,HEADLAMPKAC,PGC; 1997-04-01~1998-11-01 |
35154-80C01-000 |
US $4.16 |
||
|
8
|
8
35130-50F00-000
BRACKET,HEADLAMP,R
KAC,PGC; 1997-04-01~1998-11-01 |
35130-50F00-000 |
— | ||
|
9
|
9
35330-50F00-000
BRACKET,HEADLAMP,L
KAC,PGC; 1997-04-01~1998-11-01 |
35330-50F00-000 |
— | ||
|
10
|
10
02162-06123-000
Bolt (6x12)
KAC,PGC; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02162-0612B-000 SCREWBolt KAC,PGC; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket KAC,PGC; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
36420-50F10-000 LAMP UNIT,SIDE TURN SIG,RKAC,PGC; 1997-04-01~1998-11-01 |
36420-50F10-000 |
US $76.91 |
||
|
12
|
12
36440-50F10-000
LAMP UNIT,SIDE TURN SIG,L
KAC,PGC; 1997-04-01~1998-11-01 |
36440-50F10-000 |
— | ||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; KAC,PGC; 1997-04-01~1998-11-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; KAC,PGC; 1997-04-01~1998-11-01 |
09471-12216-000 |
from US $2.84 |
||
|
14
|
14
36418-50F00-000 SOCKET,SIDE TURN SIGNAL LAMPKAC,PGC; 1997-04-01~1998-11-01 |
36418-50F00-000 |
US $27.42 |
||
|
15
|
15
09132-04032-000 SCREW(4X20)Screw, fr turnsignal (4x20) KAC,PGC; 1997-04-01~1998-11-01 |
09132-04032-000 |
from US $0.91 |
||
|
16
|
16
09148-04021-000 NUTKAC,PGC; 1997-04-01~1998-11-01 |
09148-04021-000 |
from US $0.96 |
||
|
17
|
17
35601-50F00-000
LAMP ASSY,FR TURN SIG,R
KAC,PGC; 1997-04-01~1998-11-01 |
35601-50F00-000 |
— | ||
|
18
|
18
35602-50F00-000 LAMP ASSY,FR TURN SIG,LKAC,PGC; 1997-04-01~1998-11-01 |
35602-50F00-000 |
US $102.67 |
||
|
19
|
19
35612-50F00-000 LENS,FR TURN SIG LAMP,RKAC,PGC; 1997-04-01~1998-11-01 |
35612-50F00-000 |
US $25.60 |
||
|
20
|
20
35632-50F00-000 LENS,FR TURN SIG LAMP,LKAC,PGC; 1997-04-01~1998-11-01 |
35632-50F00-000 |
from US $19.44 |
||
|
21
|
21
09125-04018-000
Screw 4x35 (sus
KAC,PGC; 1997-04-01~1998-11-01 |
09125-04018-000 |
— | ||
| replacement | |||||
|
21
|
21
09125-04018-XC0 SCREW(4X35)KAC,PGC; 1997-04-01~1998-11-01 |
09125-04018-XC0 |
from US $1.12 |
||
|
22
|
22
09471-12045-000 BULB(12V21W)KAC,PGC; 1997-04-01~1998-11-01 |
09471-12045-000 |
from US $2.54 |
||
|
23
|
23
35618-50F00-000 SOCKET,FRONT TURN SIGNAL LAMPKAC,PGC; 1997-04-01~1998-11-01 |
35618-50F00-000 |
US $29.99 |
||
|
24
|
24
09404-06432-000
CLAMP(L:65)
KAC,PGC; 1997-04-01~1998-11-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
24
|
24
09404-06039-000 Clamp(L:65)KAC,PGC; 1997-04-01~1998-11-01 |
09404-06039-000 |
from US $1.82 |
||
|
25
|
25
03541-05123-000
Screw
KAC,PGC; 1997-04-01~1998-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03541-0512B-000 SCREWKAC,PGC; 1997-04-01~1998-11-01 |
03541-0512B-000 |
from US $0.76 |
||
