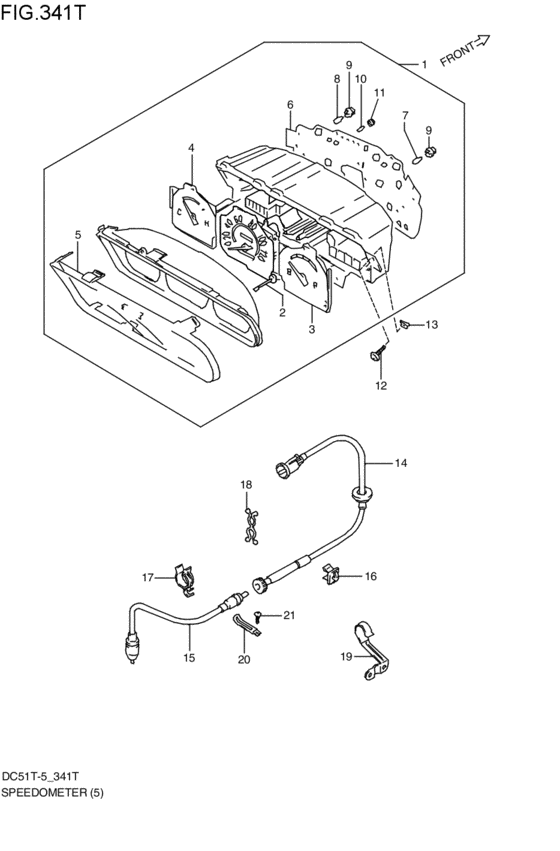

speed meter (V:PGC; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- grade
- PGC
- number of the gears
- 5MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-51FE0-000
スピードメータアッシ,コンビネーション
V:PGC; 1997-04-01~1997-10-01 |
34100-51FE0-000 |
— | ||
|
1
|
1
34100-51FE1-000
スピードメータアッシ,コンビネーション
V:PGC; 1997-10-01~1998-11-01 |
34100-51FE1-000 |
— | ||
|
2
|
2
34120-51FE0-000
ボディアッシ,スピードメータ
V:PGC; 1997-04-01~1998-11-01 |
34120-51FE0-000 |
— | ||
|
3
|
3
34320-51FE0-000
ボディアッシ,フューエルメータ
V:PGC; 1997-04-01~1998-11-01 |
34320-51FE0-000 |
— | ||
|
4
|
4
34420-51FE0-000
ボディアッシ,テンパレチャメータ
V:PGC; 1997-04-01~1998-11-01 |
34420-51FE0-000 |
— | ||
|
5
|
5
34112-50F10-000 GLASS,METER WINDOWV:PGC; 1997-04-01~1998-11-01 |
34112-50F10-000 |
US $77.60 |
||
|
6
|
6
34152-57F00-000
プレート,プリンテッド
V:PGC; 1997-04-01~1998-11-01 |
34152-57F00-000 |
— | ||
|
7
|
7
09471-12028-000 BULB(12V3.4W,T10)STANLEY,WB125; V:PGC; 1997-04-01~1998-11-01 |
09471-12028-000 |
from US $1.98 |
||
|
8
|
8
34171-50FA0-000 BULB,12V 3.4WV:PGC; 1997-04-01~1998-11-01 |
34171-50FA0-000 |
US $4.64 |
||
|
9
|
9
34172-50E10-000 SOCKETV:PGC; 1997-04-01~1998-11-01 |
34172-50E10-000 |
US $1.60 |
||
|
10
|
10
09471-12055-000 BULB(14V1.4W,T5)V:PGC; 1997-04-01~1998-11-01 |
09471-12055-000 |
from US $2.40 |
||
|
11
|
11
34175-78900-000 SOCKETV:PGC; 1997-04-01~1998-11-01 |
34175-78900-000 |
US $1.52 |
||
|
12
|
12
03541-05163-000
Screw
V:PGC; 1997-04-01~1998-11-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREWV:PGC; 1997-04-01~1998-11-01 |
03541-0516A-000 |
from US $0.68 |
||
|
13
|
13
09148-05004-000 NUTV:PGC; 1997-04-01~1998-11-01 |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
13
|
13
09148-05013-000 NUTV:PGC; 1997-04-01~1998-11-01 |
09148-05013-000 |
from US $0.91 |
||
|
14
|
14
34910-50F00-000
CABLE ASSY,SPEEDOMETER
V:PGC; 1997-04-01~1998-11-01 |
34910-50F00-000 |
— | ||
|
15
|
15
34911-50F10-000
CABLE ASSY,SPEEDOMETER NO.2
V:PGC; 1997-04-01~1998-11-01 |
34911-50F10-000 |
— | ||
|
16
|
16
09403-07306-000 CLAMPClamp V:PGC; 1997-04-01~1998-11-01 |
09403-07306-000 |
from US $2.56 |
||
|
17
|
17
09408-00161-000 CLAMPV:PGC; 1997-04-01~1998-11-01 |
09408-00161-000 |
US $2.64 |
||
|
18
|
18
34980-50F00-000
クランプ,メータケーブル
V:PGC; 1997-04-01~1998-11-01 |
34980-50F00-000 |
— | ||
|
19
|
19
34926-50F40-000
CLAMP,SPEEDOMETER CABLE
V:PGC; 1997-04-01~1998-11-01 |
34926-50F40-000 |
— | ||
|
20
|
20
09404-06434-000
CLAMP(L:80 T:1.0)
V:PGC; 1997-04-01~1998-11-01 |
09404-06434-000 |
— | ||
| replacement | |||||
|
20
|
20
09404-06036-000 Clamp(L:80)V:PGC; 1997-04-01~1998-11-01 |
09404-06036-000 |
from US $1.82 |
||
|
21
|
21
02112-06083-000
Screw
V:PGC; 1997-04-01~1998-11-01 |
02112-06083-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0608A-000 SCREWV:PGC; 1997-04-01~1998-11-01 |
02112-0608A-000 |
from US $0.76 |
||
