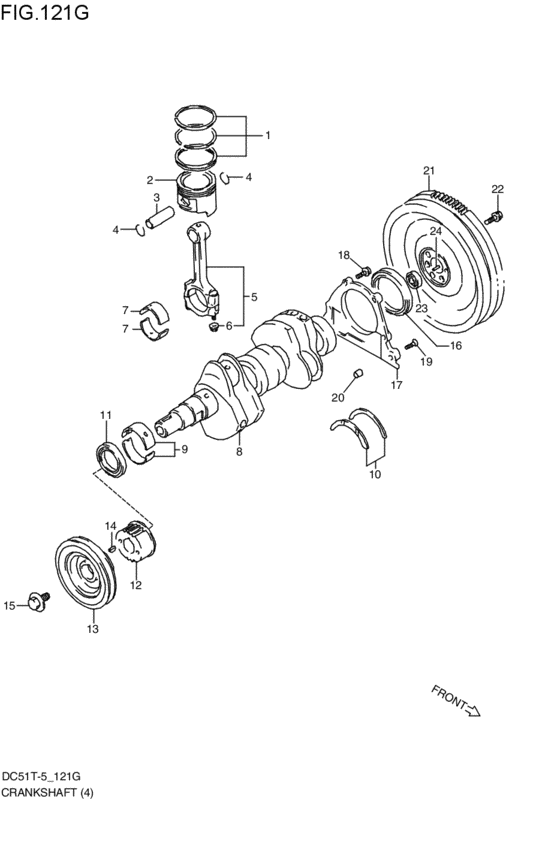

crankshaft (V:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- PY
- number of the gears
- 5MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-50E50-000 RING SET,PISTONV:TURBO; 1997-04-01~1998-11-01 |
12140-50E50-000 |
US $152 |
||
|
2
|
2
12111-60D51-0B0 PISTON,STDV:TURBO; 1997-04-01~1998-11-01 |
12111-60D51-0B0 |
US $75.07 |
||
|
3
|
3
12151-54A50-000 PIN,PISTONV:TURBO; 1997-04-01~1998-11-01 |
12151-54A50-000 |
US $10.56 |
||
|
4
|
4
09381-18005-000 CIRCLIPV:TURBO; 1997-04-01~1998-11-01 |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-60D51-000 CONNROD ASSYV:TURBO; 1997-04-01~1998-11-01 |
12160-60D51-000 |
US $214.32 |
||
|
6
|
6
09159-08033-000 NUTV:TURBO; 1997-04-01~1998-11-01 |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12181-81051-0A0 BEARING,CONNROD STDV:TURBO; 1997-04-01~1998-11-01 |
12181-81051-0A0 |
US $12.46 |
||
|
8
|
8
12221-60D50-000
クランクシャフト
V:TURBO; 1997-04-01~1998-11-01 |
12221-60D50-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-60H50-000
CRANKSHAFT
V:TURBO; 1997-04-01~1998-11-01 |
12221-60H50-000 |
— | ||
|
9
|
9
12300-61810-0A0
ベアリングセット,クランクシャフト
V:TURBO; 1997-04-01~1998-11-01 |
12300-61810-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12300-61810-0B0 BEARING SET,CRANKSHAFTV:TURBO; 1997-04-01~1998-11-01 |
12300-61810-0B0 |
US $270.40 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
V:TURBO; 1997-04-01~1998-11-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)V:TURBO; 1997-04-01~1998-11-01 |
12300-60840-000 |
from US $19.60 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
V:TURBO; 1997-04-01~1998-11-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)V:TURBO; 1997-04-01~1998-11-01 |
12300-60840-012 |
US $30.40 |
||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6)V:TURBO; 1997-04-01~1998-11-01 |
09283-32042-000 |
US $11.10 |
||
|
12
|
12
12631-61D01-000
PULLEY,CRANK TIMING BELT
V:TURBO; 1997-04-01~1998-11-01 |
12631-61D01-000 |
— | ||
|
13
|
13
12611-63C00-000 PULLEY,CRANKSHAFTV:TURBO; 1997-04-01~1998-11-01 |
12611-63C00-000 |
US $69.92 |
||
|
14
|
14
08341-31059-000 KEYKey V:TURBO; 1997-04-01~1998-11-01 |
08341-31059-000 |
from US $1.60 |
||
|
15
|
15
12619-60B00-000 BOLT,CRANK PULLEYV:TURBO; 1997-04-01~1998-11-01 |
12619-60B00-000 |
US $7.36 |
||
|
16
|
16
09283-60005-000
OIL SEAL
V:TURBO; 1997-04-01~1998-11-01 |
09283-60005-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-60009-000 SEAL,OIL(60X80X8)V:TURBO; 1997-04-01~1998-11-01 |
09283-60009-000 |
from US $27.52 |
||
|
17
|
17
11341-70B01-000 HOUSING,OIL SEALV:TURBO; 1997-04-01~1998-11-01 |
11341-70B01-000 |
US $31.16 |
||
|
18
|
18
01550-06203-000
Bolt
V:TURBO; 1997-04-01~1998-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0620B-000 BOLTBolt, inspection cap V:TURBO; 1997-04-01~1998-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
19
|
19
02122-06253-000
Screw (6x25)
V:TURBO; 1997-04-01~1998-11-01 |
02122-06253-000 |
— | ||
| replacement | |||||
|
19
|
19
02122-0625A-000 SCREWV:TURBO; 1997-04-01~1998-11-01 |
02122-0625A-000 |
from US $0.80 |
||
|
20
|
20
04211-09109-000 PINKnock pin V:TURBO; 1997-04-01~1998-11-01 |
04211-09109-000 |
from US $0.96 |
||
|
21
|
21
12620-72D02-000
フライホイール
V:TURBO:MT; 1997-04-01~1997-10-01 |
12620-72D02-000 |
— | ||
|
21
|
21
12620-72D03-000
フライホイール
V:TURBO:MT; 1997-10-01~1998-11-01 |
12620-72D03-000 |
— | ||
|
22
|
22
09103-10097-000 BOLT(10X17)V:TURBO:MT; 1997-04-01~1998-11-01 |
09103-10097-000 |
US $1.12 |
||
|
23
|
23
12623-70B00-000 BEARING,INPUT SHAFTV:TURBO:MT; 1997-04-01~1998-11-01 |
12623-70B00-000 |
US $15.96 |
||
|
24
|
24
04221-06129-000 PINV:TURBO:MT; 1997-04-01~1998-11-01 |
04221-06129-000 |
from US $0.96 |
||
