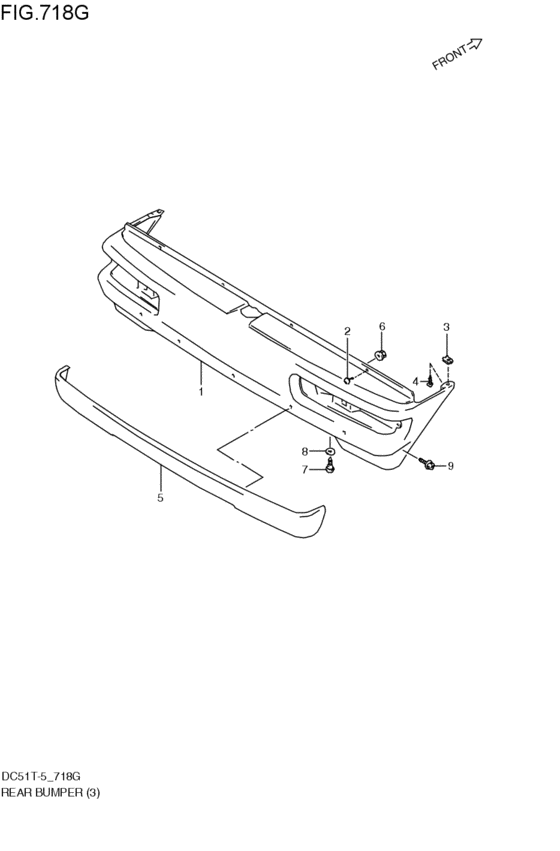

rear bumper (V:PGC; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- P4WD
- transmission
- MT
- grade
- PGC
- number of the gears
- 5MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-54FB1-799
バー,リヤバンパ(プライマリー)
プライマリ-; V:PGC; 1997-04-01~1998-11-01 |
71811-54FB1-799 |
— | ||
|
2
|
2
09122-66004-000
Screw,6x14
V:PGC; 1997-04-01~1998-11-01 |
09122-66004-000 |
— | ||
| replacement | |||||
|
2
|
2
09122-66007-000 SCREW(6X14)V:PGC; 1997-04-01~1998-11-01 |
09122-66007-000 |
from US $0.80 |
||
|
3
|
3
09148-06013-000 NUTV:PGC; 1997-04-01~1998-11-01 |
09148-06013-000 |
US $1.52 |
||
|
4
|
4
03242-06163-000
Screw
V:PGC; 1997-04-01~1998-11-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0616C-000 SCREWV:PGC; 1997-04-01~1998-11-01 |
03241-0616C-000 |
from US $0.76 |
||
|
5
|
5
71821-54FR0-0PG
バー,リヤバンパ,ロア(クローム)
クロ-ム; V:PGC; 1997-04-01~1998-11-01 |
71821-54FR0-0PG |
— | ||
|
6
|
6
09159-06076-000 NUTV:PGC; 1997-04-01~1998-11-01 |
09159-06076-000 |
from US $1.28 |
||
|
7
|
7
09139-06040-000 SCREW(6X20)V:PGC; 1997-04-01~1998-11-01 |
09139-06040-000 |
US $9.60 |
||
|
8
|
8
08322-01083-000
WASHER
V:PGC; 1997-04-01~1998-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
8
|
8
08322-0108B-000 WASHERV:PGC; 1997-04-01~1998-11-01 |
08322-0108B-000 |
from US $0.80 |
||
|
8
|
8
08322-0108A-000 WASHERV:PGC; 1997-04-01~1998-11-01 |
08322-0108A-000 |
from US $0.80 |
||
|
9
|
9
02162-06163-000
Screw
V:PGC; 1997-04-01~1998-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust V:PGC; 1997-04-01~1998-11-01 |
02162-0616B-000 |
from US $0.80 |
||
