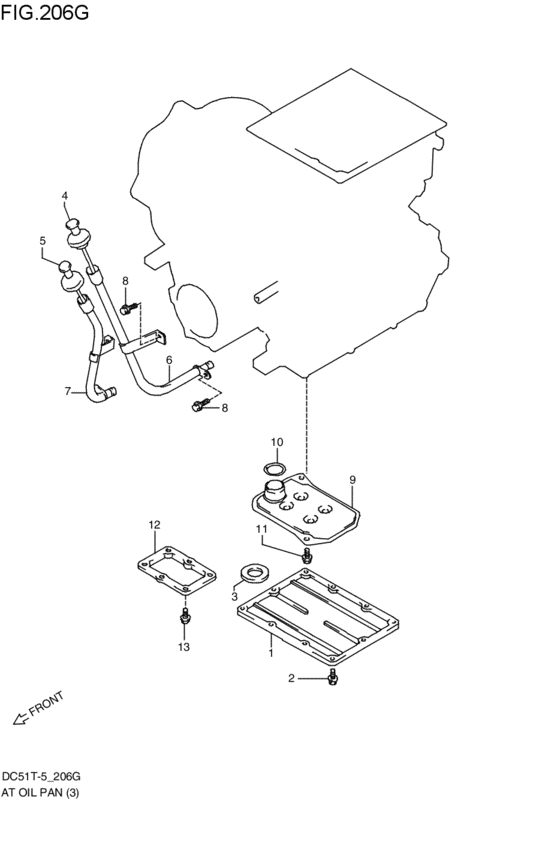

at - oil pan (V:AT:F4WD; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- F4WD
- transmission
- AT
- grade
- PX
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-51F00-000
Pan, transmission oil
V:AT:F4WD; 1997-04-01~1998-11-01 |
24761-51F00-000 |
— | ||
|
2
|
2
02162-06123-000
Bolt (6x12)
V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
24861-71B70-000 MAGNET,OIL CLEANERV:AT:F4WD; 1997-04-01~1998-11-01 |
24861-71B70-000 |
US $4.82 |
||
|
4
|
4
24830-51F11-000
ゲージ,トランスミッションオイルレベル
V:AT:F4WD; 1997-04-01~1998-11-01 |
24830-51F11-000 |
— | ||
| replacement | |||||
|
4
|
4
24830-51F12-000
ゲージ,トランスミッションオイルレベル
V:AT:F4WD; 1997-04-01~1998-11-01 |
24830-51F12-000 |
— | ||
|
5
|
5
24840-56F01-000
ゲージ,トランスファオイルレベル
V:AT:F4WD; 1997-04-01~1998-11-01 |
24840-56F01-000 |
— | ||
|
6
|
6
24770-51F00-000
チューブ,トランスミッションオイルフィラ
V:AT:F4WD; 1997-04-01~1998-11-01 |
24770-51F00-000 |
— | ||
| replacement | |||||
|
6
|
6
24770-51F0V-000
New Genuine Part
V:AT:F4WD; 1997-04-01~1998-11-01 |
24770-51F0V-000 |
— | ||
|
7
|
7
24780-56F00-000
チューブ,トランスファオイルフィラ
V:AT:F4WD; 1997-04-01~1998-11-01 |
24780-56F00-000 |
— | ||
|
8
|
8
24772-61D00-000
ボルト
V:AT:F4WD; 1997-04-01~1998-11-01 |
24772-61D00-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp V:AT:F4WD; 1997-04-01~1998-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTV:AT:F4WD; 1997-04-01~1998-11-01 |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
01550-06123-000
Bolt
V:AT:F4WD; 1997-04-01~1998-11-01 |
01550-06123-000 |
— | ||
|
9
|
9
26572-51F00-000
Strainer, Oil
V:AT:F4WD; 1997-04-01~1998-11-01 |
26572-51F00-000 |
— | ||
|
10
|
10
26586-51F00-000
Oリング,オイルストレーナ
V:AT:F4WD; 1997-04-01~1998-11-01 |
26586-51F00-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
V:AT:F4WD; 1997-04-01~1998-11-01 |
01550-06123-000 |
— | ||
|
12
|
12
24762-56F00-000
パン,トランスファオイル
V:AT:F4WD; 1997-04-01~1998-11-01 |
24762-56F00-000 |
— | ||
|
13
|
13
02162-06123-000
Bolt (6x12)
V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket V:AT:F4WD; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.80 |
||
