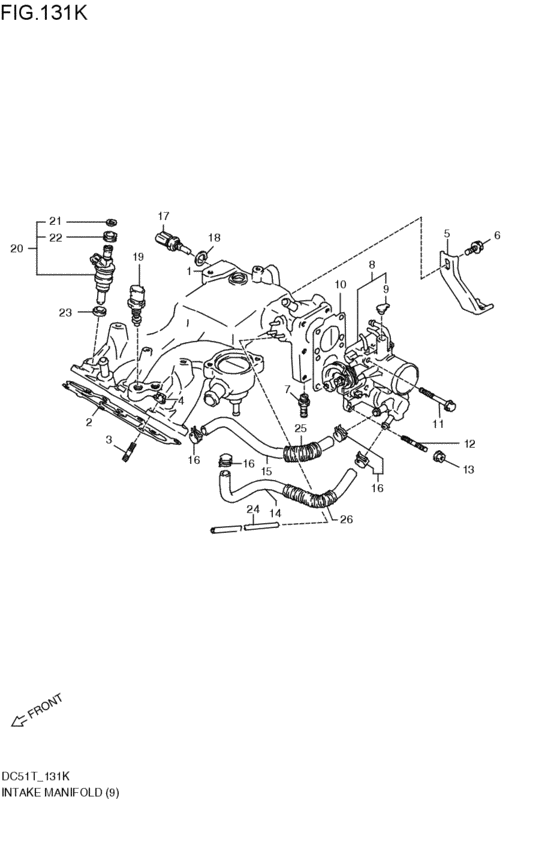

intake manifold (V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1995 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- F4WD
- transmission
- MT
- grade
- NSB
- number of the gears
- 5MT
- type
- TYPE4
- body
- P
- valve
- 2V
- air-conditioner
- AIRCON
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-56F10-000
マニホールド,インテーク
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13110-56F10-000 |
— | ||
|
2
|
2
13119-84360-000 GASKET,INTK MANFV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13119-84360-000 |
US $5.47 |
||
|
3
|
3
01411-08203-000
Stud 8x20
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0820B-000 BOLT,STUDV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01411-0820B-000 |
US $1.12 |
||
|
4
|
4
08316-10083-000
Nut
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
13626-56F00-000
ブラケット,インテークマニホールド
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13626-56F00-000 |
— | ||
|
6
|
6
01550-08163-000
Bolt, holder
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BOLTV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BOLTBolt, rear V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01550-0816A-000 |
from US $0.81 |
||
|
7
|
7
09362-09010-000
UNION
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09362-09010-000 |
— | ||
|
8
|
8
13400-56F00-000
ボディアッシ,スロットル
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13400-56F00-000 |
— | ||
|
9
|
9
13419-84150-000
PLUG
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13419-84150-000 |
— | ||
|
10
|
10
13421-64D03-000 GASKET,THROTTLE BODYV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13421-64D03-000 |
US $2.40 |
||
|
11
|
11
01550-06453-000
Bolt
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0645A-000 BoltV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01550-0645A-000 |
from US $0.96 |
||
|
12
|
12
01421-06163-000
Bolt
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-0616A-000 BOLT,STUDV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
01421-0616A-000 |
from US $1.07 |
||
|
13
|
13
08316-10063-000
Nut
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
13491-56F00-000
ホース,スロットルボディ,インレット
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13491-56F00-000 |
— | ||
| replacements | |||||
|
14
|
14
09401-13419-000 CLIPV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09401-13419-000 |
from US $1.60 |
||
|
14
|
14
13491-56F01-000
ホース,スロットルボディ,インレット
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13491-56F01-000 |
— | ||
|
15
|
15
13492-56F00-000
ホース,スロットルボディ,アウトレット
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13492-56F00-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-13419-000 CLIPV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09401-13419-000 |
from US $1.60 |
||
|
15
|
15
13492-56F01-000
ホース,スロットルボディ,アウトレット
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13492-56F01-000 |
— | ||
|
16
|
16
09401-11407-000
CLIP
V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-11415-000 CLIPV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
13650-61B00-000 SENSOR,TEMPV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13650-61B00-000 |
from US $51.04 |
||
|
18
|
18
09168-12016-000 GASKET(12.2X21X0.8)V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09168-12016-000 |
from US $1.12 |
||
|
19
|
19
13650-50G01-000 Sensor,water TempV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
13650-50G01-000 |
US $103.20 |
||
|
20
|
20
15710-75D50-000
INJECTOR ASSY,FUEL
V:2V:TURBO:MT:TYPE4; 1995-05-01~1996-08-01 |
15710-75D50-000 |
— | ||
|
20
|
20
15710-83C00-000
インジェクタアッシ,フューエル
V:2V:TURBO:MT:TYPE4; 1996-08-01~1997-03-01 |
15710-83C00-000 |
— | ||
|
21
|
21
15710-09300-000 O-RINGV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
15710-09300-000 |
from US $1.60 |
||
|
22
|
22
15720-09300-000 GROMMETV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
15720-09300-000 |
from US $1.60 |
||
|
23
|
23
09320-08062-000 CUSHIONV:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09320-08062-000 |
from US $4.32 |
||
|
24
|
24
09355-35754-600
ホース,3.5X7.5X600
L:600>460; V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
24
|
24
09355-35754-601
HOSE(3.5X7.5X601)
L:600>460; V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09355-35754-601 |
— | ||
|
24
|
24
09355-35006-601 Hose(3.5X7.5X601)L:600>460; V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
09355-35006-601 |
from US $6.08 |
||
|
25
|
25
17858-86501-000 PROTECTOR,HOSEL:415>50; V:2V:TURBO:MT:TYPE4; 1995-05-01~1997-03-01 |
17858-86501-000 |
US $9.60 |
||
|
26
|
26
17858-86501-000 PROTECTOR,HOSEV:2V:TURBO:MT:TYPE4; 1996-03-01~1997-03-01 |
17858-86501-000 |
US $9.60 |
||
