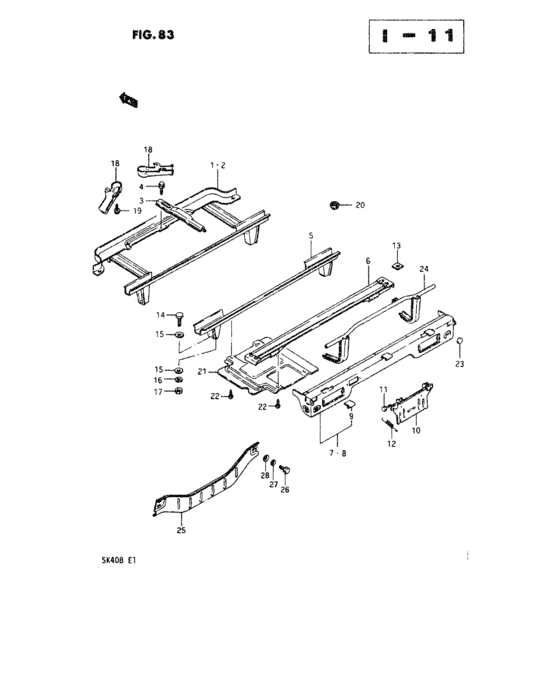

Deck floor member (T/K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66101-85211-000
Member assy, dock floor front
T |
66101-85211-000 |
— | ||
|
2
|
2
66101-85401-000
Member assy, deck floor front
K |
66101-85401-000 |
— | ||
|
3
|
3
67911-85001-000 MEMBER,SERVICE HOLE,CTR |
67911-85001-000 |
US $19.87 |
||
|
4
|
4
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
5
|
5
66201-85080-000
Member assy, deck floor no.3
<-66201-85000 |
66201-85080-000 |
— | ||
| replacement | |||||
|
5
|
5
66201-51F02-000 CROSSMEMBER,DECK FL NO.3<-66201-85000 |
66201-51F02-000 |
US $140.21 |
||
|
6
|
6
66210-85090-000 X MBR,DECK FLOOR NO.4<-66210-85400 |
66210-85090-000 |
US $69.55 |
||
|
7
|
7
66102-85080-000
Member assy, deck floor tail
T,<-66102-85210 |
66102-85080-000 |
— | ||
|
8
|
8
66102-85420-000
MEMBER ASSY,DECK FL TAIL
K,<-66102-85400 |
66102-85420-000 |
— | ||
|
8
|
8
66102-85230-000
Member assy, deck floor tail
K:, |
66102-85230-000 |
— | ||
|
8
|
8
66102-85220-000
Member assy, deck floor tail
K:Finland,Switzerland,Belgium,Holland,Israel |
66102-85220-000 |
— | ||
|
9
|
9
66571-85080-000
Hinge, deck cate
<-65671-67100 |
66571-85080-000 |
— | ||
| replacement | |||||
|
9
|
9
66571-70D00-000 HINGE,DECK GATE<-65671-67100 |
66571-70D00-000 |
US $4.86 |
||
|
10
|
10
73860-79000-000
ブラケット,リヤライセンス
|
73860-79000-000 |
— | ||
| replacement | |||||
|
10
|
10
73860-70D00-000 BRACKET,RR LICENSE |
73860-70D00-000 |
US $17.60 |
||
|
10
|
10
73860-79230-000
Bracket, rear licence
,,Finland,Switzerland,Belgium,5,Israel |
73860-79230-000 |
— | ||
|
11
|
11
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
12
|
12
09443-15004-000 SPRING |
09443-15004-000 |
US $2.08 |
||
|
13
|
13
73221-67400-000 PAD,MOUNTING |
73221-67400-000 |
US $2.13 |
||
|
14
|
14
01107-10256-000
Bolt 10x25 upper
|
01107-10256-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
15
|
15
09160-10002-000
ワッシャ,10.5X30X3.2
|
09160-10002-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
16
|
16
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
16
|
16
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
17
|
17
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
17
|
17
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
18
|
18
72811-85000-000 BRACKET,RR BODY FLOOR DRAIN |
72811-85000-000 |
US $15.84 |
||
|
19
|
19
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
20
|
20
09250-20011-000
キャップ
|
09250-20011-000 |
— | ||
| replacement | |||||
|
20
|
20
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
21
|
21
57151-79203-000 INSULATOR,DECK FLOOR |
57151-79203-000 |
US $27.42 |
||
|
22
|
22
03241-06126-000
New Genuine Part
|
03241-06126-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
23
|
23
72831-85010-000 CUSHION,FIXED STAYK |
72831-85010-000 |
US $1.62 |
||
|
24
|
24
59860-85220-000
CROSSMEMBER,FRAME,RR
,,Finland,Switzerland,Belgium,5,Israel |
59860-85220-000 |
— | ||
|
25
|
25
66480-79232-000
PANEL,FUEL TANK PROTECTOR
K:,,Finland,Switzerland,Belgium,5,Israel |
66480-79232-000 |
— | ||
|
26
|
26
01107-08166-000
Bolt m8x1.25x16
K:,,Finland,Switzerland,Belgium,5,Israel |
01107-08166-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0816B-000 BoltBolt K:,,Finland,Switzerland,Belgium,5,Israel |
01500-0816B-000 |
from US $0.80 |
||
|
27
|
27
08321-21086-000
Wsherlck8.2x15.2x1.6
K:,,Finland,Switzerland,Belgium,5,Israel |
08321-21086-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCKK:,,Finland,Switzerland,Belgium,5,Israel |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCKK:,,Finland,Switzerland,Belgium,5,Israel |
08321-0108A-000 |
from US $0.80 |
||
|
28
|
28
08322-11086-000
Washer
K:,,Finland,Switzerland,Belgium,5,Israel |
08322-11086-000 |
— | ||
| replacements | |||||
|
28
|
28
08322-0108B-000 WASHERK:,,Finland,Switzerland,Belgium,5,Israel |
08322-0108B-000 |
from US $0.80 |
||
|
28
|
28
08322-0108A-000 WASHERK:,,Finland,Switzerland,Belgium,5,Israel |
08322-0108A-000 |
from US $0.80 |
||
