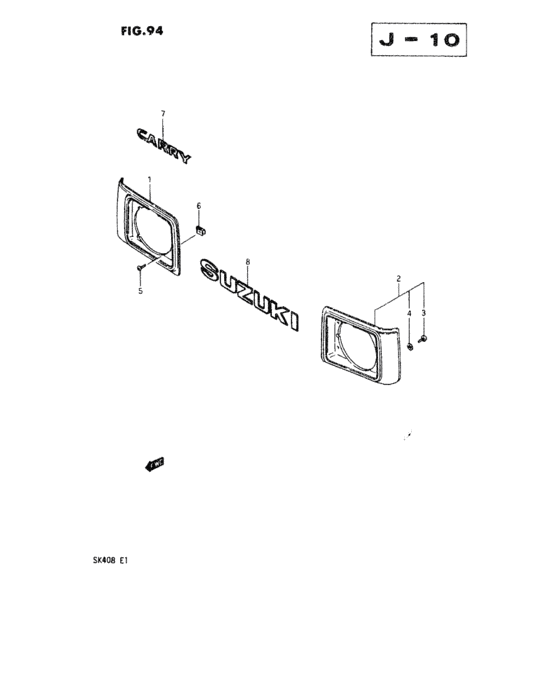

Front grille (FRONT GRILLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-85000-291
Grille, headlamp rh
|
72110-85000-291 |
— | ||
| replacement | |||||
|
1
|
1
72111-85000-291
GRILLE,HEAD LAMP,R
|
72111-85000-291 |
— | ||
|
2
|
2
72120-85000-291
Grille, headlamp lh
|
72120-85000-291 |
— | ||
|
3
|
3
03141-06106-000
Screw 6 x 10
|
03141-06106-000 |
— | ||
| replacement | |||||
|
3
|
3
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
4
|
4
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
03232-05125-000
スクリュ
|
03232-05125-000 |
— | ||
| replacement | |||||
|
5
|
5
03222-0512B-000 SCREW |
03222-0512B-000 |
US $0.80 |
||
|
6
|
6
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
7
|
7
77742-85200-019
Emblem, carry
BLACK |
77742-85200-019 |
— | ||
|
7
|
7
77742-85200-742
Emblem, carry
SILVER |
77742-85200-742 |
— | ||
|
8
|
8
77814-85201-000
Emblem, suzuki
<-77814-85200 |
77814-85201-000 |
— | ||
