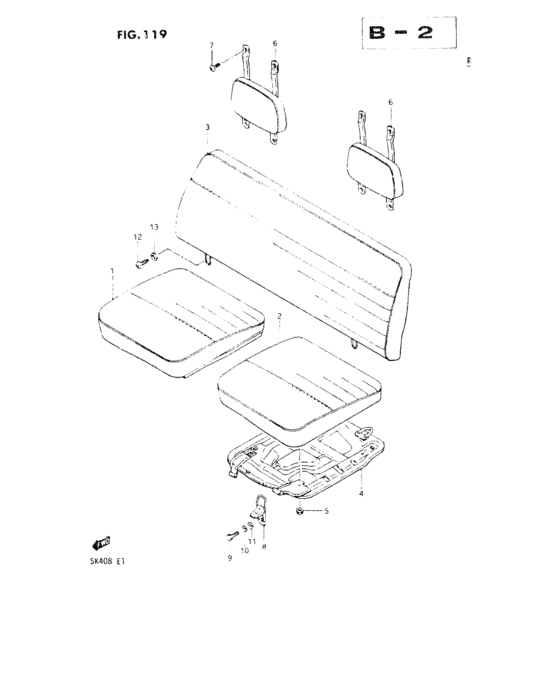

Front seat (T/K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-85031-7WT
クッションアッシ,フロントシートライト
BEIGE,TYPE 1 |
85101-85031-7WT |
— | ||
| replacement | |||||
|
1
|
1
85180-85031-7WT
Trim,front seat cushion,r
BEIGE,TYPE 1 |
85180-85031-7WT |
— | ||
|
1
|
1
85101-85031-7WW
クッションアッシ,フロントシート,ライト
BLUE,TYPE 1 |
85101-85031-7WW |
— | ||
| replacement | |||||
|
1
|
1
85180-85031-7WW
TRIM,FR SEAT CUSHION,R
BLUE,TYPE 1 |
85180-85031-7WW |
— | ||
|
1
|
1
85101-85031-9WN
クッションアッシ,フロントシート,ライト
BROWN,TYPE 2 |
85101-85031-9WN |
— | ||
| replacement | |||||
|
1
|
1
85180-85031-9WN
Trim,fr seat cushion
BROWN,TYPE 2 |
85180-85031-9WN |
— | ||
|
1
|
1
85101-85031-7WS
Cushion assy, rh
BEIGE,Chile |
85101-85031-7WS |
— | ||
|
1
|
1
85101-85031-7WV
Cushion assy, rh
BLUE,Chile |
85101-85031-7WV |
— | ||
| replacement | |||||
|
1
|
1
85180-85031-7WW
TRIM,FR SEAT CUSHION,R
BLUE,Chile |
85180-85031-7WW |
— | ||
|
1
|
1
85101-85341-8FG
Cushion assy, rh
BEIGE,Saudi Arabia |
85101-85341-8FG |
— | ||
|
1
|
1
85101-85341-8FS
Cushion assy, rh
BLUE,Saudi Arabia |
85101-85341-8FS |
— | ||
|
2
|
2
85102-85210-7WT
Cushion assy, lh
BEIGE,TYPE 1 |
85102-85210-7WT |
— | ||
|
2
|
2
85102-85210-7WW
Cushion assy, lh
BLUE,TYPE 1 |
85102-85210-7WW |
— | ||
|
2
|
2
85102-85210-9WN
Cushion assy, lh
BROWN,TYPE 2 |
85102-85210-9WN |
— | ||
|
2
|
2
85102-85210-7WS
Cushion assy, lh
BEIGE,Chile |
85102-85210-7WS |
— | ||
|
2
|
2
85102-85210-7WV
Cushion assy, lh
BLUE,Chile |
85102-85210-7WV |
— | ||
|
2
|
2
85102-85270-8FG
Cushion assy, lh
BEIGE,Saudi Arabia |
85102-85270-8FG |
— | ||
|
2
|
2
85102-85270-8FS
Cushion assy, lh
BLUE,Saudi Arabia |
85102-85270-8FS |
— | ||
|
3
|
3
85301-85041-7WT
バックアッシ,フロントシート,ライト
BEIGE,TYPE 1 |
85301-85041-7WT |
— | ||
| replacement | |||||
|
3
|
3
85380-85042-7WT
Trim,fr seat back,r
BEIGE,TYPE 1 |
85380-85042-7WT |
— | ||
|
3
|
3
85301-85041-7WW
バックアッシ,フロントシート
BLUE,TYPE 1 |
85301-85041-7WW |
— | ||
|
3
|
3
85301-85041-9WN
バックアッシ,フロントシート
BROWN,TYPE 2 |
85301-85041-9WN |
— | ||
|
3
|
3
85301-85041-7WS
Back assy
BEIGE,Chile |
85301-85041-7WS |
— | ||
| replacement | |||||
|
3
|
3
85380-85042-7WT
Trim,fr seat back,r
BEIGE,Chile |
85380-85042-7WT |
— | ||
|
3
|
3
85301-85041-7WV
Back assy
BLUE,Chile |
85301-85041-7WV |
— | ||
|
3
|
3
85301-85341-8FG
Back assy, rh
BEIGE,Saudi Arabia |
85301-85341-8FG |
— | ||
|
3
|
3
85301-85341-8FS
Back assy, rh
BLUE,Saudi Arabia |
85301-85341-8FS |
— | ||
|
4
|
4
85910-85210-000
Panel, seat riser lh
|
85910-85210-000 |
— | ||
| replacement | |||||
|
4
|
4
85910-85211-000 PANEL,FR SEAT RISER,L |
85910-85211-000 |
US $165.60 |
||
|
5
|
5
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
5
|
5
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
86401-85000-4GG
ヘッドレストレイントアッシ
BEIGE,TYPE 1 |
86401-85000-4GG |
— | ||
|
6
|
6
86401-85000-4GJ
ヘッドレストレイントアッシ
GRAY,TYPE 1 |
86401-85000-4GJ |
— | ||
|
6
|
6
86401-85000-5CZ
ヘッドレストレイントアッシ(ブラウン)
BROWN,TYPE 2 |
86401-85000-5CZ |
— | ||
|
6
|
6
86401-85200-4JR
Headrestraint assy
BEIGE,Saudi Arabia |
86401-85200-4JR |
— | ||
|
6
|
6
86401-85200-4JS
Headrestraint assy
GRAY,Saudi Arabia |
86401-85200-4JS |
— | ||
|
7
|
7
02142-06105-000
Screw
|
02142-06105-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
7
|
7
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
8
|
8
86650-85000-000 LOCK,FR SEAT CUSHION |
86650-85000-000 |
US $8.46 |
||
|
9
|
9
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
10
|
10
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
03211-06128-000
スクリュ
|
03211-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
03211-0612A-000 SCREW |
03211-0612A-000 |
US $7.70 |
||
|
13
|
13
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
