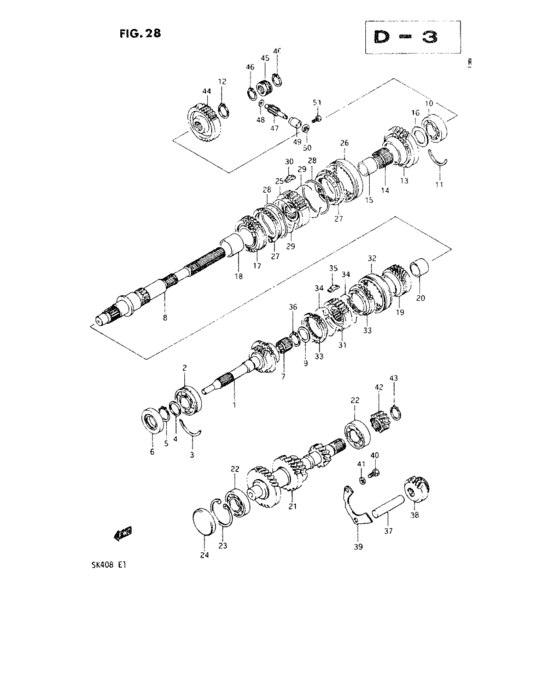

Transmission (TRANSMISSION) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-05101-000
Shaft, input
<-24110-85100 |
24110-05101-000 |
— | ||
|
2
|
2
09262-20097-000 BEARING(20X47X14) |
09262-20097-000 |
US $15.68 |
||
|
3
|
3
09390-47002-000 C RING |
09390-47002-000 |
from US $1.98 |
||
|
4
|
4
08211-20281-000 Shim, fwd (1.0) |
08211-20281-000 |
US $2.38 |
||
| replacement | |||||
|
4
|
4
09181-20167-000 SHIM(20X28X1)Shim (20x28x1.0) |
09181-20167-000 |
from US $4.13 |
||
|
5
|
5
08331-11209-000
Circlip
|
08331-11209-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-3120A-000 CIRCLIPCirclip, gear cam |
08331-3120A-000 |
from US $1.38 |
||
|
6
|
6
09283-20028-000 SEAL,OIL(20X47X8.5) |
09283-20028-000 |
US $5.12 |
||
|
7
|
7
09263-17014-000
ベアリング,17.5X22X15.8
|
09263-17014-000 |
— | ||
| replacement | |||||
|
7
|
7
09263-17043-000 BEARING(17.5X22X15.8) |
09263-17043-000 |
US $5.92 |
||
|
8
|
8
24121-85001-000
シャフト,トランスミッションメイン
|
24121-85001-000 |
— | ||
|
9
|
9
09160-21011-000 WASHER(21X28X1.5) |
09160-21011-000 |
US $16.20 |
||
|
10
|
10
08163-62050-000 BEARING |
08163-62050-000 |
from US $12.32 |
||
|
11
|
11
09390-52003-000 C RING |
09390-52003-000 |
from US $3.47 |
||
|
12
|
12
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
12
|
12
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
13
|
13
24211-85101-000
Gear, main shaft low
<-24211-85100 |
24211-85101-000 |
— | ||
|
14
|
14
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
15
|
15
09300-25025-000
ブッシュ,25X30X27.1
|
09300-25025-000 |
— | ||
|
16
|
16
09160-25058-000
ワッシャ
|
09160-25058-000 |
— | ||
|
17
|
17
24221-85102-000
Gear, main shaft 2nd
<-24221-85101 |
24221-85102-000 |
— | ||
|
18
|
18
09300-30004-000
ブッシュ
|
09300-30004-000 |
— | ||
|
19
|
19
24231-85101-000
Gear, main shaft 3rd
<-24231-85100 |
24231-85101-000 |
— | ||
|
20
|
20
09300-25024-000
ブッシュ
|
09300-25024-000 |
— | ||
|
21
|
21
24130-85101-000
Shaft, counter
NT:13/22/29/32 <-24130-85100 |
24130-85101-000 |
— | ||
|
22
|
22
09262-20079-000
ベアリング
|
09262-20079-000 |
— | ||
| replacement | |||||
|
22
|
22
08133-62047-000 BEARINGBearing, rh |
08133-62047-000 |
from US $15.04 |
||
|
23
|
23
08331-21479-000
Circlip
|
08331-21479-000 |
— | ||
| replacement | |||||
|
23
|
23
08331-41479-000 CIRCLIP |
08331-41479-000 |
from US $2.56 |
||
|
24
|
24
09241-47002-000
PLUG
|
09241-47002-000 |
— | ||
| replacement | |||||
|
24
|
24
09241-47009-000 PLUG |
09241-47009-000 |
US $4.10 |
||
|
25
|
25
24411-85001-000
ハブ,ロースピードシンクロナイザ
<-24411-85000 |
24411-85001-000 |
— | ||
|
26
|
26
24421-85001-000
スリーブ,シンクロナイザ
|
24421-85001-000 |
— | ||
|
26
|
26
24421-85040-000
スリーブ,シンクロナイザ
DA11T-100744~ DA11V-100778~,JSAEDA11T00100159~,JSAEDA11V00101664~ |
24421-85040-000 |
— | ||
|
27
|
27
24431-72143-000
リング,シンクロナイザ
|
24431-72143-000 |
— | ||
| replacement | |||||
|
27
|
27
24431-85020-000 RING,LOW SPEED SYNC |
24431-85020-000 |
US $72.80 |
||
|
27
|
27
24431-85020-000 RING,LOW SPEED SYNCDA11T-100744~ DA11V-100778~,JSAEDA11T00100159~,JSAEDA11V00101664~ |
24431-85020-000 |
US $72.80 |
||
|
28
|
28
24436-84200-000 SPRING,SYNC RING LOW |
24436-84200-000 |
US $13.28 |
||
|
29
|
29
09388-00009-000 SPRING |
09388-00009-000 |
US $11 |
||
|
30
|
30
09422-05011-000
キー
|
09422-05011-000 |
— | ||
| replacement | |||||
|
30
|
30
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
31
|
31
24412-85002-000
ハブ,ハイスピードシンクロナイザ
<-24412-85001 |
24412-85002-000 |
— | ||
|
32
|
32
24422-85001-000
スリーブ,シンクロナイザ
|
24422-85001-000 |
— | ||
|
32
|
32
24422-85040-000
スリーブ,シンクロナイザ
DA11T-100744~ DA11V-100778~,JSAEDA11T00100159~,JSAEDA11V00101664~ |
24422-85040-000 |
— | ||
|
33
|
33
24431-74034-000
リング,シンクロナイザ
|
24431-74034-000 |
— | ||
| replacement | |||||
|
33
|
33
24431-74050-000 RING,HIGH SPEED SYNC |
24431-74050-000 |
US $56.67 |
||
|
33
|
33
24431-78430-000
リング,シンクロナイザ
DA11T-100744~ DA11V-100778~,JSAEDA11T00100159~,JSAEDA11V00101664~ |
24431-78430-000 |
— | ||
| replacement | |||||
|
33
|
33
24432-73D00-000 RING,HIGH SPEED SYNCDA11T-100744~ DA11V-100778~,JSAEDA11T00100159~,JSAEDA11V00101664~ |
24432-73D00-000 |
US $57.60 |
||
|
34
|
34
09388-00007-000 SPRING |
09388-00007-000 |
US $12.90 |
||
| replacement | |||||
|
34
|
34
24443-80F00-000 SPRING,5TH SYNC |
24443-80F00-000 |
US $1.60 |
||
|
35
|
35
09422-05011-000
キー
|
09422-05011-000 |
— | ||
| replacement | |||||
|
35
|
35
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
36
|
36
08331-31218-000 Circlip |
08331-31218-000 |
US $1.51 |
||
| replacement | |||||
|
36
|
36
08331-31219-000 CIRCLIP |
08331-31219-000 |
from US $1.38 |
||
|
37
|
37
24551-63204-000
Shaft, reverse idle gear
|
24551-63204-000 |
— | ||
| replacement | |||||
|
37
|
37
24551-85100-000 SHAFT,REVERSE IDLE GEAR |
24551-85100-000 |
US $17.30 |
||
|
37
|
37
24551-85100-000 SHAFT,REVERSE IDLE GEARDA11T-100302~ DA11V-100301~,JSAEDA11T00100052~,JSAEDA11V00100448~ |
24551-85100-000 |
US $17.30 |
||
|
38
|
38
24560-85000-000
GEAR,REV IDLE
|
24560-85000-000 |
— | ||
|
38
|
38
24560-85100-000
Gear, reverse idle
DA11T-100302~ DA11V-100301~,JSAEDA11T00100052~,JSAEDA11V00100448~ |
24560-85100-000 |
— | ||
|
39
|
39
25482-85000-000
プレート,リバースギヤシャフトストップ
|
25482-85000-000 |
— | ||
|
40
|
40
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
40
|
40
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
41
|
41
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
41
|
41
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
42
|
42
24671-85000-000
GEAR,CTSHFT REV
NT:13 |
24671-85000-000 |
— | ||
|
42
|
42
24671-85100-000
Gear, counter shaft reverse
NT:13 DA11T-100302~ DA11V-100301~,JSAEDA11T00100052~,JSAEDA11V00100448~ |
24671-85100-000 |
— | ||
|
43
|
43
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
43
|
43
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
44
|
44
24681-85000-000 GEAR,MAIN SFT REVNT:32 |
24681-85000-000 |
US $243.20 |
||
|
44
|
44
24681-85100-000
Gear, main shaft reverse
NT:32 DA11T-100302~ DA11V-100301~,JSAEDA11T00100052~,JSAEDA11V00100448~ |
24681-85100-000 |
— | ||
|
45
|
45
26121-85100-000
Gear, speedometer drive
NT:3 |
26121-85100-000 |
— | ||
|
46
|
46
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
46
|
46
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
47
|
47
26131-85101-000
Gear, speedometer driven
NT:15 |
26131-85101-000 |
— | ||
|
48
|
48
09160-08003-000 WASHER(8X13.7X1)Washer (8x13.7x1) |
09160-08003-000 |
from US $1.60 |
||
|
49
|
49
09300-08017-000 BUSH(8X16X18) |
09300-08017-000 |
US $25.80 |
||
|
50
|
50
09282-08001-000 SEAL,OIL(8X16X5) |
09282-08001-000 |
US $2.31 |
||
|
51
|
51
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
51
|
51
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
51
|
51
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
