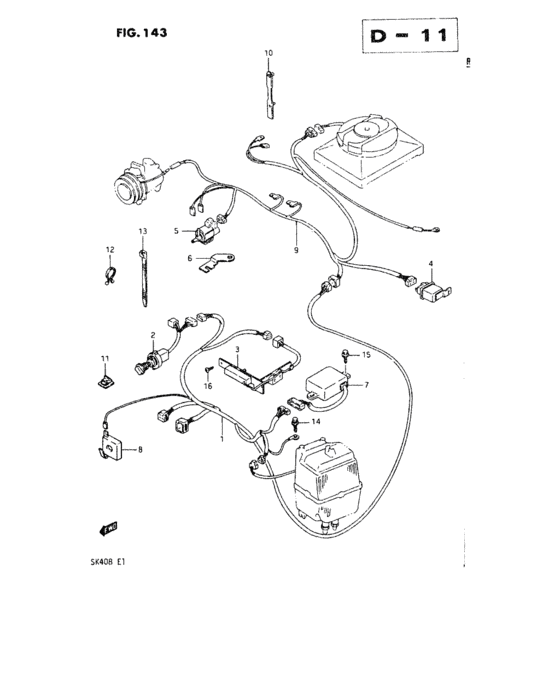

Wiring harness (RHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95581-85500-000
ハーネス,ワイヤリング,NO.1
|
95581-85500-000 |
— | ||
|
2
|
2
95571-85000-000
SWITCH ASSY,AIR CON
|
95571-85000-000 |
— | ||
|
3
|
3
95590-85001-000 SWITCH ASSY,AIR CONTROL |
95590-85001-000 |
US $49.31 |
||
|
4
|
4
95572-79640-000
Relay, damp switch
|
95572-79640-000 |
— | ||
| replacement | |||||
|
4
|
4
95572-79641-000 RELAY,A/C |
95572-79641-000 |
US $42.69 |
||
|
4
|
4
95572-78041-000
Relay,cooling fan
|
95572-78041-000 |
— | ||
|
5
|
5
95551-79640-000
バルブ,アイドルアップ
|
95551-79640-000 |
— | ||
| replacement | |||||
|
5
|
5
95160-70B00-000 VSV,IDLE UP |
95160-70B00-000 |
US $59.98 |
||
|
6
|
6
95989-85000-000 BRACKET,VSV |
95989-85000-000 |
US $3.72 |
||
|
7
|
7
95575-85500-000
AMPLIFIER,A/C
|
95575-85500-000 |
— | ||
|
8
|
8
95579-85000-000
スイッチアッシ,アクセルオフ
|
95579-85000-000 |
— | ||
|
9
|
9
95582-85401-000
Harness, wiring no.2
|
95582-85401-000 |
— | ||
|
9
|
9
95582-85402-000
Harness, wiring no.2
DA21T-100552~ |
95582-85402-000 |
— | ||
| replacements | |||||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap DA21T-100552~ |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
95533-68C50-000 HARNESS,A/C FUSEDA21T-100552~ |
95533-68C50-000 |
US $10.12 |
||
|
9
|
9
95582-85201-000
Harness, wiring no.2
|
95582-85201-000 |
— | ||
| replacements | |||||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
95533-68C50-000 HARNESS,A/C FUSE |
95533-68C50-000 |
US $10.12 |
||
|
9
|
9
95582-85202-000
Harness, wiring no.2
DA21V-101790~ |
95582-85202-000 |
— | ||
| replacements | |||||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap DA21V-101790~ |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
95533-68C50-000 HARNESS,A/C FUSEDA21V-101790~ |
95533-68C50-000 |
US $10.12 |
||
|
10
|
10
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
11
|
11
09403-06310-000 CLAMP |
09403-06310-000 |
from US $2.15 |
||
|
12
|
12
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
13
|
13
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
14
|
14
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
14
|
14
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
15
|
15
03541-06166-000
スクリュ
|
03541-06166-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
16
|
16
03241-04126-000
Screw l:12
|
03241-04126-000 |
— | ||
| replacement | |||||
|
16
|
16
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
