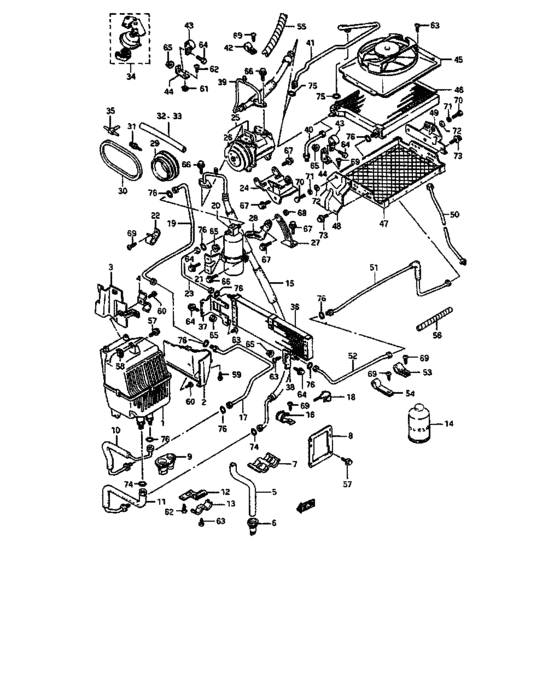

Air conditioner (RHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-85200-000
Air conditioner assy
W/HEATER |
95000-85200-000 |
— | ||
|
|
95000-85270-000
Air conditioner assy
N/HEATER |
95000-85270-000 |
— | ||
|
|
95000-85220-000
Air conditioner assy
W/HEATER |
95000-85220-000 |
— | ||
|
|
95000-85230-000
Air conditioner assy
N/HEATER |
95000-85230-000 |
— | ||
|
1
|
1
95400-85000-000
ユニット,エバポレータ
INNER PARTS:FIG.189(A- 7) |
95400-85000-000 |
— | ||
|
2
|
2
95461-85000-000
プロテクタ,エバポレータ
|
95461-85000-000 |
— | ||
|
3
|
3
95632-85001-000
ブラケット,エバポレータ,ライト
|
95632-85001-000 |
— | ||
|
4
|
4
95777-85000-000
CLAMP,INNER PIPE
|
95777-85000-000 |
— | ||
|
5
|
5
95491-85000-000
ホース,ドレーン
|
95491-85000-000 |
— | ||
| replacement | |||||
|
5
|
5
95491-60C01-000
Hose,drain
|
95491-60C01-000 |
— | ||
|
6
|
6
95764-85000-000 GROMMET,DRAIN HOSE |
95764-85000-000 |
US $4.12 |
||
|
7
|
7
95769-85000-000 PACKING,EVAPORATOR PIPE |
95769-85000-000 |
US $7.47 |
||
|
8
|
8
74214-85000-000 PACKING,HEATER CONTROL BOXW/HEATER |
74214-85000-000 |
US $6.24 |
||
|
9
|
9
95762-85000-000
グロメット,エバポレータパイプ
|
95762-85000-000 |
— | ||
|
10
|
10
95731-85000-000
Pipe,evapo inlet
|
95731-85000-000 |
— | ||
|
11
|
11
95741-85000-000
PIPE,EVAPORATOR OUTLET
|
95741-85000-000 |
— | ||
|
12
|
12
95772-85000-000
STAY,PIPE CLAMP
|
95772-85000-000 |
— | ||
|
13
|
13
95771-85000-000
CLAMP,EVAP PIPE
|
95771-85000-000 |
— | ||
|
14
|
14
95790-78050-000
Drum, refrigerant
400G |
95790-78050-000 |
— | ||
|
15
|
15
95710-85500-000
ホース,コンプレッササクション
|
95710-85500-000 |
— | ||
| replacement | |||||
|
15
|
15
95710-85501-000
HOSE,CPRSR SUCT
|
95710-85501-000 |
— | ||
|
16
|
16
95778-85000-000
クランプ,サクションホース
|
95778-85000-000 |
— | ||
|
17
|
17
95736-85200-000 PIPE,RECEIVER DRYER OUT NO.2 |
95736-85200-000 |
US $37.17 |
||
|
18
|
18
95781-85000-000 PROTECTOR,WATER HOSE |
95781-85000-000 |
US $9.90 |
||
|
19
|
19
95732-85200-000
PIPE,RECEIVER DRYER OUT NO.1
|
95732-85200-000 |
— | ||
|
20
|
20
95330-78090-000
レシーバドライヤ
|
95330-78090-000 |
— | ||
| replacement | |||||
|
20
|
20
95330-78091-000 RECEIVER DRYER |
95330-78091-000 |
from US $62.40 |
||
|
21
|
21
95930-85500-000
ブラケット,レシーバドライヤ
|
95930-85500-000 |
— | ||
| replacement | |||||
|
21
|
21
95930-85501-000
BRACKET,RCVR DRYER
|
95930-85501-000 |
— | ||
|
22
|
22
95776-85000-000
クランプ,レシーバアウトレットパイプ
|
95776-85000-000 |
— | ||
| replacement | |||||
|
22
|
22
95776-85001-000 CLAMP,RCVR OUTLET PIPE |
95776-85001-000 |
US $11.22 |
||
|
23
|
23
95733-85200-000
PIPE,FRONT COND OUTLET
|
95733-85200-000 |
— | ||
|
24
|
24
95111-85200-000
BRACKET,CPRSR
|
95111-85200-000 |
— | ||
|
25
|
25
95200-78180-000
Compressor/magnet clutch
|
95200-78180-000 |
— | ||
| replacement | |||||
|
25
|
25
95200-78181-000
COMPRESSOR&MAGNET CLUTCH
|
95200-78181-000 |
— | ||
|
26
|
26
95220-78140-000
MAGNET,CLUTCH
|
95220-78140-000 |
— | ||
|
27
|
27
95114-85201-000 STAY,ALTERNATOR ADJUST |
95114-85201-000 |
US $37.54 |
||
|
28
|
28
95113-85200-000 STAY,COMPRESSOR MOUNT |
95113-85200-000 |
US $19.69 |
||
|
29
|
29
12611-85200-000
PULLEY,CRANKSHAFT
|
12611-85200-000 |
— | ||
|
30
|
30
17521-77300-000 V-BELT,CPRSR FM-29.5HM-29.5" |
17521-77300-000 |
US $11.96 |
||
|
31
|
31
95562-78190-000
ユニオン,バキュームホース
|
95562-78190-000 |
— | ||
| replacement | |||||
|
31
|
31
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
32
|
32
09343-03094-000
New Genuine Part
L:150 |
09343-03094-000 |
— | ||
| replacements | |||||
|
32
|
32
09355-35754-601
HOSE(3.5X7.5X601)
L:150 |
09355-35754-601 |
— | ||
|
32
|
32
09355-35006-601 Hose(3.5X7.5X601)L:150 |
09355-35006-601 |
from US $5.78 |
||
|
33
|
33
09343-03080-000
Hose, vacuum no.2
L:250 |
09343-03080-000 |
— | ||
| replacements | |||||
|
33
|
33
09355-35755-600
HOSE(3.5X7.5X600)
L:250 |
09355-35755-600 |
— | ||
|
33
|
33
09355-35007-600 Hose(3.5X7.5X600)L:250 |
09355-35007-600 |
from US $5.76 |
||
|
34
|
34
95550-85200-000
IDLE UP ASSY,A/C
|
95550-85200-000 |
— | ||
|
35
|
35
09367-04002-000 CONNECTOR, , Sinagpore, Hong Kong |
09367-04002-000 |
US $4.80 |
||
|
36
|
36
95321-85200-000 COND,FR |
95321-85200-000 |
US $298.08 |
||
|
37
|
37
95951-85220-000 BRACKET,FR COND,R |
95951-85220-000 |
US $12.36 |
||
|
38
|
38
95952-85200-000 BRACKET,FR COND,L |
95952-85200-000 |
US $4.93 |
||
|
39
|
39
95720-85400-000
Hose, compressor delivery
|
95720-85400-000 |
— | ||
|
39
|
39
95720-85500-000
ホース,コンプレッサデリバリ
|
95720-85500-000 |
— | ||
| replacement | |||||
|
39
|
39
95720-85501-000
HOSE,CPRSR DLVY
|
95720-85501-000 |
— | ||
|
40
|
40
95737-85750-000
Pipe, side condenser inlet
|
95737-85750-000 |
— | ||
|
41
|
41
95737-85200-000
PIPE,SIDE COND INLET
|
95737-85200-000 |
— | ||
|
41
|
41
95737-85700-000
Pipe, side condenser inlet
, Bangladesh, Saudi Arabia |
95737-85700-000 |
— | ||
|
42
|
42
95774-85000-000
クランプ,デリバリパイプ
|
95774-85000-000 |
— | ||
| replacement | |||||
|
42
|
42
95774-60C00-000 CLAMP,DELIVERY PIPE |
95774-60C00-000 |
US $11.70 |
||
|
43
|
43
95775-85000-000
Clamp
|
95775-85000-000 |
— | ||
|
44
|
44
95772-79140-000
STAY,CONDENSER PIPE CLAMP
|
95772-79140-000 |
— | ||
|
45
|
45
95520-85501-000
Fan assy, condenser cooling
|
95520-85501-000 |
— | ||
| replacement | |||||
|
45
|
45
95520-85502-000
FAN ASSY,COND
|
95520-85502-000 |
— | ||
|
46
|
46
95310-85210-000
COND,SIDE
|
95310-85210-000 |
— | ||
|
46
|
46
95310-85510-000
コンデンサ,サイド
|
95310-85510-000 |
— | ||
|
47
|
47
95334-85201-000
ガード,コンデンサ
|
95334-85201-000 |
— | ||
|
48
|
48
95331-85201-000
Bracket, side condenser front
|
95331-85201-000 |
— | ||
|
48
|
48
95331-85500-000
ブラケット,サイドコンデンサ,フロント
|
95331-85500-000 |
— | ||
|
49
|
49
95332-85200-000
Bracket, side condenser rear
|
95332-85200-000 |
— | ||
|
49
|
49
95332-85500-000
ブラケット,サイドコンデンサ,リヤ
|
95332-85500-000 |
— | ||
|
50
|
50
95738-85460-000
PIPE,SIDE COND JOINT
|
95738-85460-000 |
— | ||
|
51
|
51
95734-85460-000
Pipe, side condenser outlet
TYPE 1 |
95734-85460-000 |
— | ||
|
51
|
51
95734-85420-000
Pipe, side condenser outler
TYPE 2 |
95734-85420-000 |
— | ||
|
51
|
51
95734-85200-000
PIPE,SIDE COND OUTLET
|
95734-85200-000 |
— | ||
|
52
|
52
95735-85200-000
PIPE,FRONT COND INLET
|
95735-85200-000 |
— | ||
|
53
|
53
95773-85000-000 CLAMP,PIPE |
95773-85000-000 |
US $3.83 |
||
|
54
|
54
95771-79140-000
CLAMP,CONDENSER PIPE
|
95771-79140-000 |
— | ||
|
55
|
55
95767-78040-000
PROTECTOR,RADIATOR HOSE
|
95767-78040-000 |
— | ||
|
56
|
56
95767-85000-000
Protector,clutch cable
|
95767-85000-000 |
— | ||
|
57
|
57
01517-06166-000
Bolt
W/HEATER |
01517-06166-000 |
— | ||
| replacement | |||||
|
57
|
57
01550-0616B-000 BOLTW/HEATER |
01550-0616B-000 |
from US $0.76 |
||
|
58
|
58
95782-85000-000
ナット,エバポレータ
|
95782-85000-000 |
— | ||
|
59
|
59
03541-06166-000
スクリュ
|
03541-06166-000 |
— | ||
| replacement | |||||
|
59
|
59
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
60
|
60
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
60
|
60
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
60
|
60
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
61
|
61
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
62
|
62
03141-06166-000
New Genuine Part
|
03141-06166-000 |
— | ||
| replacement | |||||
|
62
|
62
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
63
|
63
03141-05126-000
Screw
|
03141-05126-000 |
— | ||
| replacement | |||||
|
63
|
63
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
64
|
64
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
64
|
64
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
64
|
64
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
65
|
65
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
65
|
65
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
65
|
65
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
66
|
66
01517-06206-000
Bolt 6x20
|
01517-06206-000 |
— | ||
| replacements | |||||
|
66
|
66
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
66
|
66
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
67
|
67
01517-08208-000
Bolt
|
01517-08208-000 |
— | ||
| replacement | |||||
|
67
|
67
01550-08207-000 BOLT |
01550-08207-000 |
from US $0.96 |
||
|
68
|
68
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
68
|
68
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
68
|
68
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
|
69
|
69
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
69
|
69
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
70
|
70
09138-06038-000
SCREW(6X16)
|
09138-06038-000 |
— | ||
|
71
|
71
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
71
|
71
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
72
|
72
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
72
|
72
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
73
|
73
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
73
|
73
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
73
|
73
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
74
|
74
95751-84000-000
O ring, suction
|
95751-84000-000 |
— | ||
| replacements | |||||
|
74
|
74
95897-60E00-000 O-RING |
95897-60E00-000 |
US $30.50 |
||
|
74
|
74
09280-14012-000
Oリング,D:1.78,ID:14.0
|
09280-14012-000 |
— | ||
|
75
|
75
95752-84000-000
Oリング,デリバリ
|
95752-84000-000 |
— | ||
| replacements | |||||
|
75
|
75
95894-60E00-000 O-RING |
95894-60E00-000 |
US $1.28 |
||
|
75
|
75
09280-11006-000
Oリング,D:1.78,ID:10.8
|
09280-11006-000 |
— | ||
|
76
|
76
95753-84040-000
Oリング,パイプ,ハイ
|
95753-84040-000 |
— | ||
| replacements | |||||
|
76
|
76
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
76
|
76
09280-07005-000
Oリング,D:1.42,ID:6.8
|
09280-07005-000 |
— | ||
