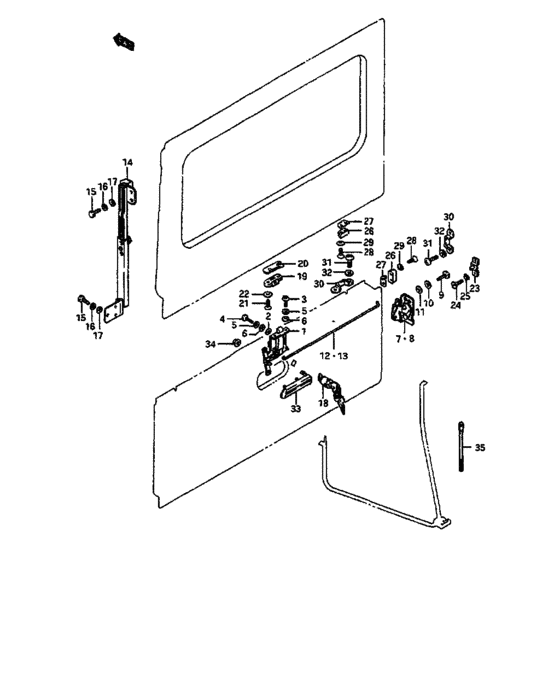

Back door lock (PANEL VAN) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77310-61320-000
Lock assy, center
|
77310-61320-000 |
— | ||
| replacements | |||||
|
1
|
1
82991-84000-000 CAP,DR INSIDE LOCK KNOB |
82991-84000-000 |
US $1.60 |
||
|
1
|
1
77310-53FA0-000
LATCH ASSY,BACK DR CTR
|
77310-53FA0-000 |
— | ||
|
1
|
1
83181-53FA0-000
New Genuine Part
|
83181-53FA0-000 |
— | ||
|
1
|
1
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK) |
87846-82000-5ES |
US $1.76 |
||
|
2
|
2
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
2
|
2
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
3
|
3
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
3
|
3
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
4
|
4
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
4
|
4
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
5
|
5
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
7
|
7
77330-60420-000
Lock assy, side door
|
77330-60420-000 |
— | ||
| replacement | |||||
|
7
|
7
77350-58D70-000 LOCK,SIDE DR,L |
77350-58D70-000 |
US $38.27 |
||
|
8
|
8
77350-60420-000
Lock assy, side lh
|
77350-60420-000 |
— | ||
| replacement | |||||
|
8
|
8
77330-58D70-000 LOCK,SIDE DR,R |
77330-58D70-000 |
US $38.27 |
||
|
9
|
9
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
9
|
9
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
10
|
10
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
77711-61320-000
ROD,BACK DOOR REMOCON,R
|
77711-61320-000 |
— | ||
|
13
|
13
77721-61320-000
ROD,BACK DOOR REMOCON,L
|
77721-61320-000 |
— | ||
|
14
|
14
76430-61320-000
STAY,UPPER BACK DOOR,L
|
76430-61320-000 |
— | ||
|
15
|
15
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
16
|
16
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
18
|
18
77400-79810-000
Key cylinder assy
|
77400-79810-000 |
— | ||
|
19
|
19
77851-54000-000 STRIKER,BACK DOOR LOCK CENTER |
77851-54000-000 |
US $14.79 |
||
|
20
|
20
77881-54000-000
Spacer,t/gate center strik
|
77881-54000-000 |
— | ||
|
21
|
21
02132-06166-000
スクリュ
|
02132-06166-000 |
— | ||
| replacement | |||||
|
21
|
21
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
22
|
22
08323-31066-000
ワッシャ
|
08323-31066-000 |
— | ||
| replacement | |||||
|
22
|
22
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
23
|
23
77860-54020-000 STRIKER |
77860-54020-000 |
US $6.15 |
||
|
24
|
24
02132-06166-000
スクリュ
|
02132-06166-000 |
— | ||
| replacement | |||||
|
24
|
24
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
25
|
25
08323-31066-000
ワッシャ
|
08323-31066-000 |
— | ||
| replacement | |||||
|
25
|
25
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
26
|
26
77771-54030-000
STOP MALE,UPPER DOWN
|
77771-54030-000 |
— | ||
|
27
|
27
77772-61300-000
SHIM,DOWN STOPPER
|
77772-61300-000 |
— | ||
|
28
|
28
02122-05258-000
Screw, outer
|
02122-05258-000 |
— | ||
| replacements | |||||
|
28
|
28
02122-05253-000
SCREW
|
02122-05253-000 |
— | ||
|
28
|
28
02122-0525B-000 Screw |
02122-0525B-000 |
from US $3.03 |
||
|
29
|
29
08323-31058-000
Lock washer
|
08323-31058-000 |
— | ||
| replacement | |||||
|
29
|
29
08323-3105A-000 WASHER,LOCK |
08323-3105A-000 |
from US $1.97 |
||
|
30
|
30
77781-60400-000
Female,door stop
|
77781-60400-000 |
— | ||
|
31
|
31
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
32
|
32
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
32
|
32
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
33
|
33
78150-60460-000
Handle,back door
|
78150-60460-000 |
— | ||
|
34
|
34
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
34
|
34
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
34
|
34
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
35
|
35
57241-73130-000
Bolt, spare tire carrier
|
57241-73130-000 |
— | ||
| replacement | |||||
|
35
|
35
57241-7720V-000
BOLT,SPARE TIRE CARRIER
|
57241-7720V-000 |
— | ||
