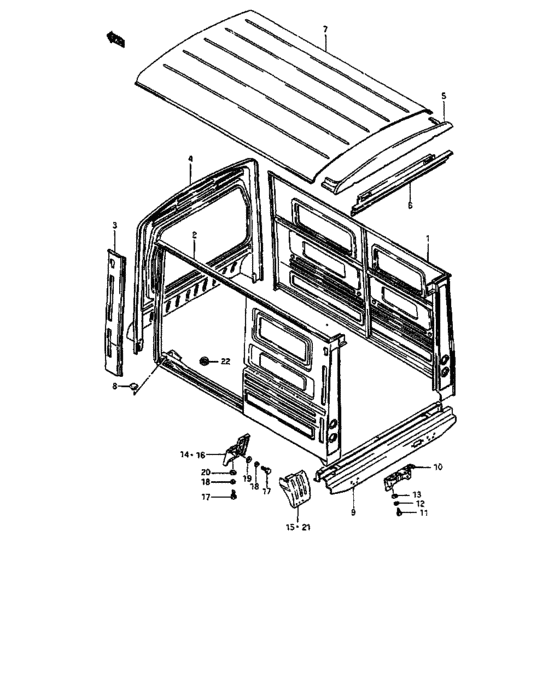

Body panel (PANEL VAN) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67003-79300-000
Frame assy, side rh
|
67003-79300-000 |
— | ||
|
2
|
2
67004-79300-000
Frame assy, side lh
|
67004-79300-000 |
— | ||
| replacement | |||||
|
2
|
2
81860-74301-000
New Genuine Part
|
81860-74301-000 |
— | ||
|
3
|
3
68571-79300-000
Panel, outer lh
|
68571-79300-000 |
— | ||
|
4
|
4
64510-85300-000
Panel assy, front
|
64510-85300-000 |
— | ||
|
5
|
5
71400-79300-000
Rail, roof back
|
71400-79300-000 |
— | ||
|
6
|
6
71430-67300-000
Frame, roof back
|
71430-67300-000 |
— | ||
|
7
|
7
71000-72200-000
Panel assy, roof
|
71000-72200-000 |
— | ||
|
8
|
8
09250-16004-000
Plug, slide lower rail
|
09250-16004-000 |
— | ||
| replacement | |||||
|
8
|
8
09250-16008-000 PLUG(OD:24) |
09250-16008-000 |
US $1.44 |
||
|
9
|
9
66102-85321-000
Tail member assy
<-66102-85320 |
66102-85321-000 |
— | ||
|
10
|
10
72840-85320-000
Bracket, rear licence plate
|
72840-85320-000 |
— | ||
|
11
|
11
01107-06127-000 Bolt |
01107-06127-000 |
US $2.71 |
||
| replacement | |||||
|
11
|
11
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
12
|
12
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
13
|
13
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
14
|
14
73322-79300-000
Fender, front rh
|
73322-79300-000 |
— | ||
| replacement | |||||
|
14
|
14
73333-79300-000
FENDER,DECK
|
73333-79300-000 |
— | ||
|
15
|
15
73323-79300-000
Fender,deck rr rh
|
73323-79300-000 |
— | ||
|
16
|
16
73390-79300-000
Fender, front lh
|
73390-79300-000 |
— | ||
|
17
|
17
01107-06127-000 Bolt |
01107-06127-000 |
US $2.71 |
||
| replacement | |||||
|
17
|
17
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
18
|
18
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
20
|
20
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
21
|
21
73333-79300-000
FENDER,DECK
|
73333-79300-000 |
— | ||
|
22
|
22
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
