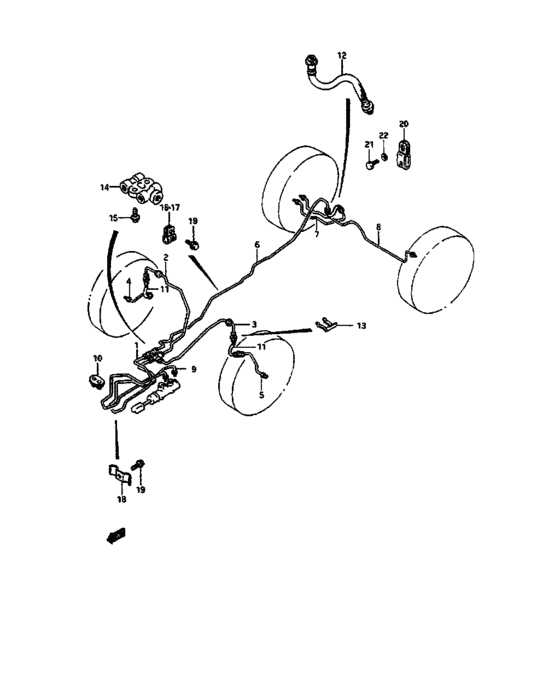

Brake piping (BRAKE PIPING) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85200-000
Pipe, brake no.1
LHD |
51410-85200-000 |
— | ||
|
1
|
1
51410-85001-000
Pipe, brake no.1
RHD, <-51410-85000 |
51410-85001-000 |
— | ||
|
2
|
2
51420-85400-000 PIPE,BRAKE NO.2 |
51420-85400-000 |
US $13.92 |
||
|
3
|
3
51430-85400-000 PIPE,BRAKE NO.3 |
51430-85400-000 |
US $15.20 |
||
|
4
|
4
51440-85200-000
Pipe, brake no.4
|
51440-85200-000 |
— | ||
|
5
|
5
51450-85200-000
Pipe, brake no.5
|
51450-85200-000 |
— | ||
|
6
|
6
51460-85200-000
パイプ,ブレーキ,NO.6
|
51460-85200-000 |
— | ||
|
6
|
6
51460-85571-000
パイプ,ブレーキ,NO.6
FLAT FLOOR |
51460-85571-000 |
— | ||
|
6
|
6
51460-85551-000
パイプ,ブレーキ,NO.6
LOW FLOOR:TYPE 1 |
51460-85551-000 |
— | ||
|
6
|
6
51460-85560-000
Pipe, brake no.6
LOW FLOOR:TYPE 2 |
51460-85560-000 |
— | ||
|
7
|
7
51470-85200-000
PIPE,BRAKE NO.7
|
51470-85200-000 |
— | ||
|
8
|
8
51480-85200-000
PIPE,BRAKE NO.8
|
51480-85200-000 |
— | ||
|
9
|
9
51510-85200-000
Pipe, brake no.12
LHD |
51510-85200-000 |
— | ||
|
9
|
9
51510-85001-000
Pipe, brake no.12
RHD, <-51510-85000 |
51510-85001-000 |
— | ||
|
10
|
10
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
11
|
11
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
11
|
11
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
12
|
12
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
12
|
12
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
13
|
13
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
13
|
13
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
14
|
14
51640-85030-000 JOINT,5WAY BRAKE |
51640-85030-000 |
US $45.60 |
||
|
15
|
15
01517-06206-000
Bolt 6x20
|
01517-06206-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
15
|
15
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
16
|
16
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
17
|
17
09403-06407-000 CLAMPDA21V-100756~ |
09403-06407-000 |
US $16.20 |
||
|
18
|
18
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
19
|
19
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
20
|
20
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
21
|
21
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
21
|
21
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
22
|
22
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
