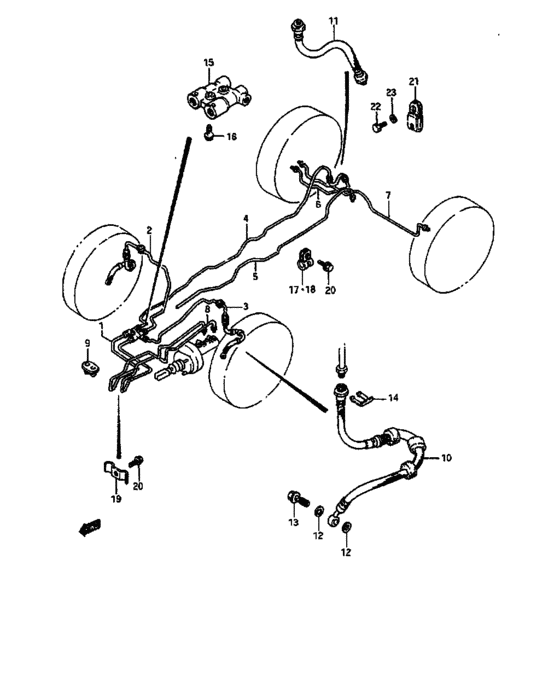

Brake piping (TYPE 1:Switzerland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85750-000
Pipe, brake no.1
|
51410-85750-000 |
— | ||
|
2
|
2
51420-85700-000
Pipe, brake no.2
|
51420-85700-000 |
— | ||
|
3
|
3
51430-85700-000
Pipe, brake no.3
|
51430-85700-000 |
— | ||
|
4
|
4
51460-85750-000
Pipe, brake no.6
|
51460-85750-000 |
— | ||
|
5
|
5
51460-85770-000
Pipe, brake no.6
FLAT FLOOR |
51460-85770-000 |
— | ||
|
5
|
5
51460-85760-000
Pipe, brake no.6
LOW FLOOR |
51460-85760-000 |
— | ||
|
6
|
6
51470-85200-000
PIPE,BRAKE NO.7
|
51470-85200-000 |
— | ||
|
7
|
7
51480-85200-000
PIPE,BRAKE NO.8
|
51480-85200-000 |
— | ||
|
8
|
8
51510-85750-000
Pipe, brake no.12
|
51510-85750-000 |
— | ||
|
9
|
9
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
10
|
10
51540-85752-000 HOSE,FR BRAKE FLEXIBLE |
51540-85752-000 |
US $54.10 |
||
|
11
|
11
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
11
|
11
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
12
|
12
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
13
|
13
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
14
|
14
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
15
|
15
51910-85220-000
Valve assy, proportioning
|
51910-85220-000 |
— | ||
|
16
|
16
01517-06353-000
ボルト
|
01517-06353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
16
|
16
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
17
|
17
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
18
|
18
09403-06407-000 CLAMP |
09403-06407-000 |
US $16.20 |
||
|
19
|
19
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
20
|
20
09130-06006-000
Screw
|
09130-06006-000 |
— | ||
|
21
|
21
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
22
|
22
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
22
|
22
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
23
|
23
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
