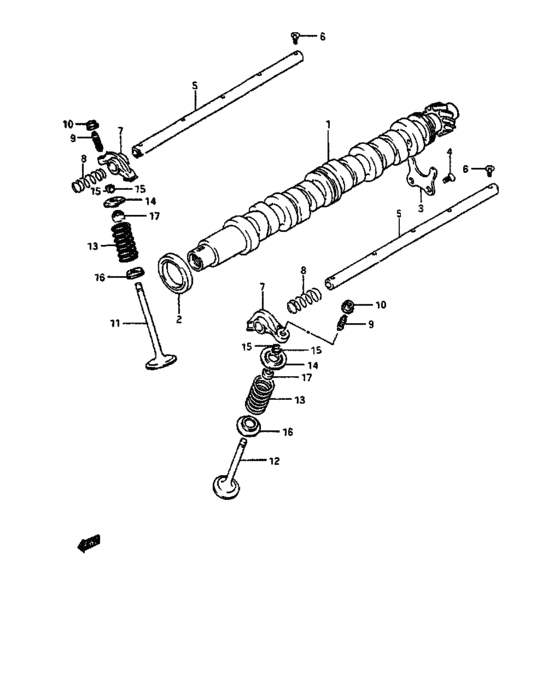

Cam shaft (CAM SHAFT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-77312-000
Cam shaft assy
<-12710-77311 |
12710-77312-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-77314-000 CAMSHAFT<-12710-77311 |
12710-77314-000 |
US $340.40 |
||
|
2
|
2
09283-32022-000
オイルシール,32X47X8
|
09283-32022-000 |
— | ||
| replacement | |||||
|
2
|
2
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
3
|
3
12749-73001-000
プレート,カムシャフトスラスト
|
12749-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
12749-73002-000 PLATE,CAMSHAFT THRUST |
12749-73002-000 |
US $7.20 |
||
|
4
|
4
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
5
|
5
12860-73004-000 SHAFT,VALVE ROCKER |
12860-73004-000 |
US $45.63 |
||
|
6
|
6
02122-06167-000 SCREW |
02122-06167-000 |
from US $0.76 |
||
|
7
|
7
12841-73002-000
Culbuteur
|
12841-73002-000 |
— | ||
| replacements | |||||
|
7
|
7
12841-77300-000 ARM,VALVE ROCKER |
12841-77300-000 |
US $26.50 |
||
|
7
|
7
12841-60C00-000 ARM,VALVE ROCKER |
12841-60C00-000 |
US $26.50 |
||
|
8
|
8
12891-73002-000
スプリング,ロッカアーム
<-12891-73001 |
12891-73002-000 |
— | ||
| replacement | |||||
|
8
|
8
12891-51G00-000 SPRING,ROCKER ARMSpring, rocket arm <-12891-73001 |
12891-51G00-000 |
US $1.60 |
||
|
9
|
9
12848-73010-000 SCREW |
12848-73010-000 |
US $4.80 |
||
|
10
|
10
09159-07002-000 NUT |
09159-07002-000 |
US $18 |
||
|
11
|
11
12911-78101-000
Valve,intake
<-12911-78100 |
12911-78101-000 |
— | ||
| replacement | |||||
|
11
|
11
12911-78120-000 Valve,intake<-12911-78100 |
12911-78120-000 |
US $28.80 |
||
|
12
|
12
12915-73003-000
バルブ,エキゾースト
<-12915-73002 |
12915-73003-000 |
— | ||
| replacement | |||||
|
12
|
12
12915-84010-000 Valve,exhaust<-12915-73002 |
12915-84010-000 |
US $41.60 |
||
|
13
|
13
12921-73002-000 SPRING,VALVE |
12921-73002-000 |
US $7.52 |
||
|
14
|
14
12931-82000-000
リテーナ,バルブスプリング
|
12931-82000-000 |
— | ||
| replacement | |||||
|
14
|
14
12900-82811-000 RETAINER SET,COTTER VALVE |
12900-82811-000 |
US $6.88 |
||
|
15
|
15
12932-82000-000 COTTER,VALVE |
12932-82000-000 |
from US $1.52 |
||
|
16
|
16
12933-73000-000 SEAT,VALVE SPRINGSeat, valve spring |
12933-73000-000 |
US $1.60 |
||
|
17
|
17
09289-07005-000
オイルシール
|
09289-07005-000 |
— | ||
| replacement | |||||
|
17
|
17
09289-07007-000 SEAL,OIL(6.5X14.5X9.7)Seal |
09289-07007-000 |
from US $3.69 |
||
