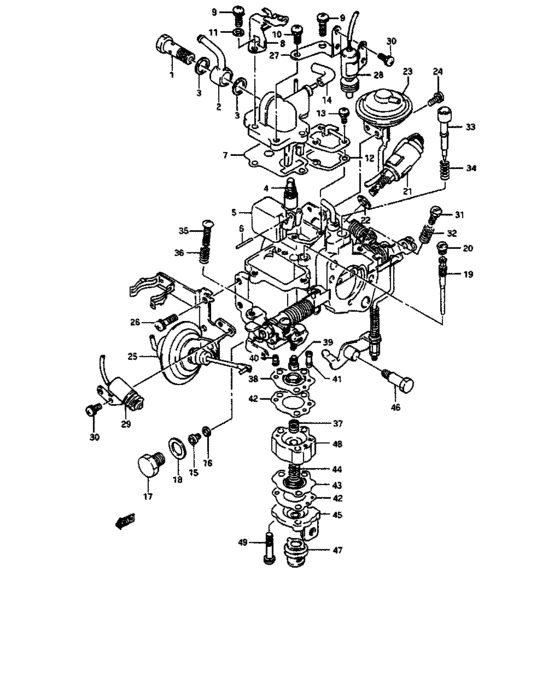

Carburetor (TYPE 2:Switzerland, Austria) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-85250-000
Carburetor assy
|
13200-85250-000 |
— | ||
| replacement | |||||
|
|
13200-85251-000
Carburetor assy
|
13200-85251-000 |
— | ||
|
1
|
1
13274-80000-000
Vis raccord carburat
|
13274-80000-000 |
— | ||
|
2
|
2
13272-80000-000
Raccord carburateur
|
13272-80000-000 |
— | ||
| replacement | |||||
|
2
|
2
13274-800T0-000
Nipple set,union
|
13274-800T0-000 |
— | ||
|
3
|
3
13292-80000-000
Joint
|
13292-80000-000 |
— | ||
|
4
|
4
13370-80000-000 VALVE ASSY,NEEDLE |
13370-80000-000 |
US $78.28 |
||
|
5
|
5
13250-80000-000
Flotteur
|
13250-80000-000 |
— | ||
| replacement | |||||
|
5
|
5
13250-80DT0-000 FLOAT SET |
13250-80DT0-000 |
US $63.84 |
||
|
6
|
6
13221-82100-000
Clavette flotteur
|
13221-82100-000 |
— | ||
|
7
|
7
13251-80000-000
Joint couvercle
|
13251-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
13361-80D00-000
Gasket
|
13361-80D00-000 |
— | ||
|
8
|
8
13272-85250-000
BRACKET
|
13272-85250-000 |
— | ||
|
9
|
9
13226-82100-000 Vis |
13226-82100-000 |
US $1.86 |
||
| replacements | |||||
|
9
|
9
02112-3520B-000 SCREW |
02112-3520B-000 |
from US $2.21 |
||
|
9
|
9
02112-35203-000
Screw
|
02112-35203-000 |
— | ||
|
10
|
10
13375-82660-000
Screw
|
13375-82660-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
10
|
10
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
11
|
11
13381-85250-000
Washer
|
13381-85250-000 |
— | ||
| replacement | |||||
|
11
|
11
13238-82100-000
WASHER
|
13238-82100-000 |
— | ||
|
12
|
12
13212-80000-000
Rondelle
|
13212-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
13212-80000-H17
Gasket
|
13212-80000-H17 |
— | ||
|
13
|
13
13373-85250-000
Screw
|
13373-85250-000 |
— | ||
| replacements | |||||
|
13
|
13
02112-3410A-000 SCREW |
02112-3410A-000 |
from US $2.99 |
||
|
13
|
13
02112-34103-000
Screw
|
02112-34103-000 |
— | ||
|
14
|
14
13291-85250-000 HOSE |
13291-85250-000 |
US $7.95 |
||
|
15
|
15
09491-24024-000
Jet, main
|
09491-24024-000 |
— | ||
|
16
|
16
13259-82100-000
Joint gicleur
|
13259-82100-000 |
— | ||
|
17
|
17
13248-80000-000
Bouchon
|
13248-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
13374-800T0-000
PLUG SET
|
13374-800T0-000 |
— | ||
|
18
|
18
13249-80000-000
Joint
|
13249-80000-000 |
— | ||
|
19
|
19
09492-52008-000
Jet, slow
|
09492-52008-000 |
— | ||
|
20
|
20
13246-80000-000 PLUG,SLOW JET |
13246-80000-000 |
US $6.29 |
||
|
21
|
21
13260-85250-000
Valve
|
13260-85250-000 |
— | ||
| replacement | |||||
|
21
|
21
13260-852T0-000
SOLENOID SET
|
13260-852T0-000 |
— | ||
|
22
|
22
13611-80000-000
Joint
|
13611-80000-000 |
— | ||
| replacement | |||||
|
22
|
22
13269-82100-000
Gasket
|
13269-82100-000 |
— | ||
|
23
|
23
13210-85250-000
DIAPHRAGM ASSY
|
13210-85250-000 |
— | ||
|
24
|
24
13223-82100-000
Screw
|
13223-82100-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-3406A-000 SCREW |
02112-3406A-000 |
from US $0.76 |
||
|
24
|
24
02112-34063-000
Screw
|
02112-34063-000 |
— | ||
|
25
|
25
13350-85250-000
POSITIONER ASSY
|
13350-85250-000 |
— | ||
|
26
|
26
13375-82660-000
Screw
|
13375-82660-000 |
— | ||
| replacements | |||||
|
26
|
26
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
26
|
26
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
27
|
27
13271-85250-000
Bracket
|
13271-85250-000 |
— | ||
|
28
|
28
13341-85250-000
SWITCH,THROTTLE
|
13341-85250-000 |
— | ||
|
29
|
29
13342-85250-000
SWITCH,THROTTLE
|
13342-85250-000 |
— | ||
|
30
|
30
13223-82100-000
Screw
|
13223-82100-000 |
— | ||
| replacements | |||||
|
30
|
30
02112-3406A-000 SCREW |
02112-3406A-000 |
from US $0.76 |
||
|
30
|
30
02112-34063-000
Screw
|
02112-34063-000 |
— | ||
|
31
|
31
13374-85250-000
Screw, throttle adjust
|
13374-85250-000 |
— | ||
| replacement | |||||
|
31
|
31
13275-852T0-000 SCREW SET,THROTTLE ADJUST |
13275-852T0-000 |
US $10.97 |
||
|
32
|
32
13282-82100-000
Ressort vis
|
13282-82100-000 |
— | ||
|
33
|
33
13379-85250-000
Screw, idle adjust
|
13379-85250-000 |
— | ||
| replacement | |||||
|
33
|
33
13270-852T0-000
SCREW SET,IDLE ADJUST
|
13270-852T0-000 |
— | ||
|
34
|
34
13271-80000-000
Ressort starter
|
13271-80000-000 |
— | ||
|
35
|
35
13291-82100-000
SCREW,IDLE ADJUST
|
13291-82100-000 |
— | ||
|
36
|
36
13281-82100-000
Spring
|
13281-82100-000 |
— | ||
|
37
|
37
13493-80000-000
Spring
|
13493-80000-000 |
— | ||
|
38
|
38
13492-80000-000
Diaphragm assy
|
13492-80000-000 |
— | ||
| replacement | |||||
|
38
|
38
13490-800T0-000 VALVE SET,ENRITCH |
13490-800T0-000 |
US $158.24 |
||
|
39
|
39
13480-80000-000 VALVE ASSY,POWER |
13480-80000-000 |
US $38.64 |
||
|
40
|
40
13332-85250-000
VALVE
|
13332-85250-000 |
— | ||
|
41
|
41
13333-85250-000
Valve, discharge check
|
13333-85250-000 |
— | ||
|
42
|
42
13495-80000-000
Gasket
|
13495-80000-000 |
— | ||
| replacement | |||||
|
42
|
42
13495-80000-H17
Gasket
|
13495-80000-H17 |
— | ||
|
43
|
43
13491-80000-000
Diaphragm assy
|
13491-80000-000 |
— | ||
|
44
|
44
13494-80000-000
Spring
|
13494-80000-000 |
— | ||
|
45
|
45
13496-80000-000
Cover assy
|
13496-80000-000 |
— | ||
|
46
|
46
13375-85250-000
Bolt
|
13375-85250-000 |
— | ||
|
47
|
47
13497-80000-000
Boot
|
13497-80000-000 |
— | ||
|
48
|
48
13499-80000-000
Case assy
|
13499-80000-000 |
— | ||
|
49
|
49
13498-80000-000
Vis
|
13498-80000-000 |
— | ||
|
50
|
50
13200-80830-000
Gasket set
NOT SHOWN |
13200-80830-000 |
— | ||
| replacement | |||||
|
50
|
50
13380-804T0-000
Gasket set
NOT SHOWN |
13380-804T0-000 |
— | ||
