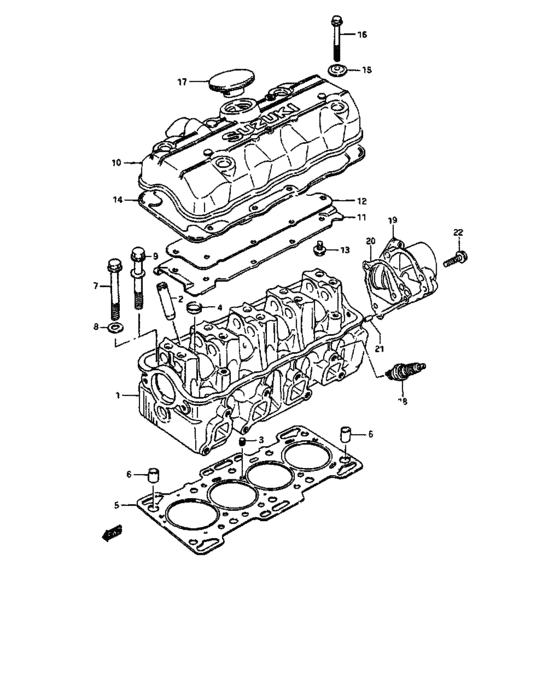

Cylinder head (CYLINDER HEAD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-80001-000
Head, cylinder
|
11110-80001-000 |
— | ||
| replacement | |||||
|
1
|
1
11110-80002-000 Head,cylinder |
11110-80002-000 |
US $1,086.40 |
||
|
2
|
2
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
US $12.80 |
||
|
3
|
3
11112-73001-000
プラグ,オイルベンチュリ
|
11112-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
US $1.60 |
||
|
4
|
4
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
5
|
5
11141-75102-000
Gasket, cylinder head
|
11141-75102-000 |
— | ||
| replacement | |||||
|
5
|
5
11141-75120-000 GASKET,CYL HEAD NA |
11141-75120-000 |
US $64.80 |
||
|
6
|
6
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
6
|
6
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
7
|
7
09103-10018-000
ボルト,10X87
|
09103-10018-000 |
— | ||
| replacement | |||||
|
7
|
7
09116-10116-000 BOLT(10X87) |
09116-10116-000 |
US $2.88 |
||
|
8
|
8
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
|
9
|
9
09116-10116-000 BOLT(10X87)DA21T-101633~,DA21V-104485~,DA21B-100049~,JSAEDA21T00100106~,JSAEDA21V00106945~,JSAEDA21V08100830~ |
09116-10116-000 |
US $2.88 |
||
|
10
|
10
11170-79201-000
Cover, cylinder head
<-11170-79200 |
11170-79201-000 |
— | ||
| replacements | |||||
|
10
|
10
11170-79203-000
Cover,cylinder head
<-11170-79200 |
11170-79203-000 |
— | ||
|
10
|
10
11189-73004-000 GASKET,CYL HEAD COVER<-11170-79200 |
11189-73004-000 |
US $13.12 |
||
|
10
|
10
16920-83G00-000
Cap,oil filler
<-11170-79200 |
16920-83G00-000 |
— | ||
|
10
|
10
16920-83G01-000
CAP OIL FILLER
<-11170-79200 |
16920-83G01-000 |
— | ||
|
11
|
11
11172-73000-000 PLATE,BREATHER |
11172-73000-000 |
US $7.36 |
||
|
12
|
12
11173-73001-000 GASKET,BREATHER PLATE |
11173-73001-000 |
US $1.60 |
||
|
13
|
13
01517-06106-000
Bolt, t/f shift plate
|
01517-06106-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
13
|
13
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
11189-73000-000
Gasket, cover
|
11189-73000-000 |
— | ||
| replacements | |||||
|
14
|
14
11189-73004-000 GASKET,CYL HEAD COVER |
11189-73004-000 |
US $13.12 |
||
|
14
|
14
11189-73002-000 GASKET,CYL HEAD |
11189-73002-000 |
US $32 |
||
|
15
|
15
11180-78101-000
ワッシャ
|
11180-78101-000 |
— | ||
| replacement | |||||
|
15
|
15
11180-82010-000 WASHER,CYL HEAD COVER SEAL |
11180-82010-000 |
from US $2.95 |
||
|
16
|
16
01517-06603-000
Bolt
|
01517-06603-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
17
|
17
16920-80002-000
Cap, oil filler
<-16920-80001 |
16920-80002-000 |
— | ||
| replacement | |||||
|
17
|
17
16920-8001V-000 Cap,oil filler<-16920-80001 |
16920-8001V-000 |
US $30.40 |
||
|
18
|
18
09482-00123-000
スパークプラグ,W16EXーU
|
09482-00123-000 |
— | ||
| replacement | |||||
|
18
|
18
09482-00131-000 PLUG,SPARK(BP5ES) |
09482-00131-000 |
US $7.22 |
||
|
18
|
18
09482-00131-000 PLUG,SPARK(BP5ES) |
09482-00131-000 |
US $7.22 |
||
|
18
|
18
09482-00167-000 PLUG,SPARK(DENSO W16EXR-U), , Finland, Norway, Switzerland, Belgium,,2, 5, 6, Sinagpore, Italy, Hong Kong,,Austria, Israel, 8 |
09482-00167-000 |
US $6.22 |
||
| replacement | |||||
|
18
|
18
09482-00155-000 PLUG,SPARK(NGK BPR5ES), , Finland, Norway, Switzerland, Belgium,,2, 5, 6, Sinagpore, Italy, Hong Kong,,Austria, Israel, 8 |
09482-00155-000 |
from US $2.78 |
||
|
18
|
18
09482-00155-000 PLUG,SPARK(NGK BPR5ES), , Finland, Norway, Switzerland, Belgium,,2, 5, 6, Sinagpore, Italy, Hong Kong,,Austria, Israel, 8 |
09482-00155-000 |
from US $2.78 |
||
|
19
|
19
11161-79120-000 CASE,DISTRIBUTOR |
11161-79120-000 |
US $72.86 |
||
|
19
|
19
11161-85550-000
ケース,ディストリビュータ
TYPE 1,Switzerland, Germany:W/CATALYZER |
11161-85550-000 |
— | ||
| replacement | |||||
|
19
|
19
11161-85551-000
CASE,DISTRIBUTOR
TYPE 1,Switzerland, Germany:W/CATALYZER |
11161-85551-000 |
— | ||
|
20
|
20
11169-73002-000
ガスケット,ディストリビュータケース
|
11169-73002-000 |
— | ||
| replacement | |||||
|
20
|
20
11169-70D01-000 GASKET,DISTRIBUTOR CASE |
11169-70D01-000 |
US $2.56 |
||
|
21
|
21
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
22
|
22
09103-08153-000 BOLT(8X30)Bolt (8x30) |
09103-08153-000 |
US $11.80 |
||
