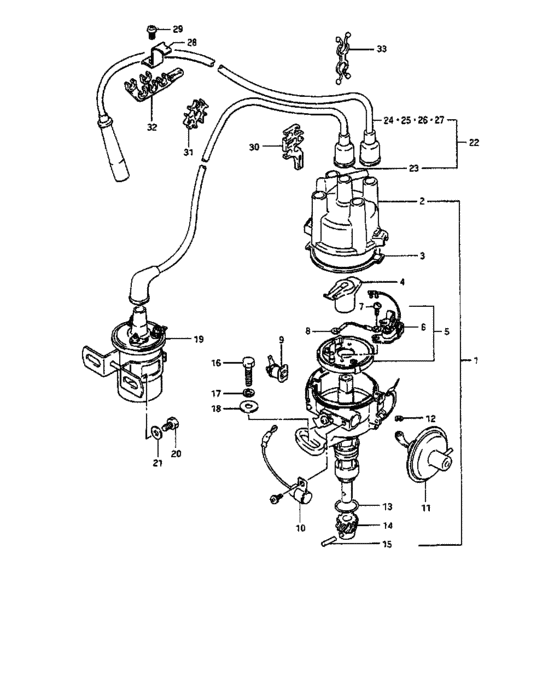

Distributor (DISTRIBUTOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-85210-000
Distributor assy
|
33100-85210-000 |
— | ||
| replacement | |||||
|
1
|
1
33100-85750-000
DISTRIBUTOR ASSY
|
33100-85750-000 |
— | ||
|
1
|
1
33100-85750-000
DISTRIBUTOR ASSY
, , Finland, Norway, Belgium, 6,,Sinagpore, Italy, Hong Kong, Israel, 8 |
33100-85750-000 |
— | ||
|
1
|
1
33100-77310-000
Distributor assy
, New Zealand, Morocco, Egypt, China, Trinidad and Tobago |
33100-77310-000 |
— | ||
| replacement | |||||
|
1
|
1
33100-85750-000
DISTRIBUTOR ASSY
, New Zealand, Morocco, Egypt, China, Trinidad and Tobago |
33100-85750-000 |
— | ||
|
1
|
1
33100-85780-000
Distributor assy
Switzerland:N/CATALYZER |
33100-85780-000 |
— | ||
|
2
|
2
33321-79210-000
Cap
|
33321-79210-000 |
— | ||
| replacement | |||||
|
2
|
2
33321-60A10-000 CAP,DISTRIBUTOR |
33321-60A10-000 |
US $15.96 |
||
|
3
|
3
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
4
|
4
33310-62110-000
Rotor
<-33310-73010 |
33310-62110-000 |
— | ||
|
5
|
5
33102-75110-000 BREAKER ASSY |
33102-75110-000 |
US $34.40 |
||
|
6
|
6
33140-74010-000
POINT ASSY
|
33140-74010-000 |
— | ||
|
7
|
7
33151-52011-000 SCREW,POINT |
33151-52011-000 |
US $0.99 |
||
|
8
|
8
33341-76410-000 WIRE,LEAD |
33341-76410-000 |
US $4.05 |
||
|
9
|
9
33210-73010-000 TERMINAL ASSY |
33210-73010-000 |
US $3.04 |
||
|
10
|
10
33261-73010-000 CONDENSER |
33261-73010-000 |
US $12 |
||
|
10
|
10
33261-77090-000
CONDENSER,DISTRIBUTOR
, , Finland, Norway, Belgium, 6,,Sinagpore, Italy, Hong Kong, Israel, 8 |
33261-77090-000 |
— | ||
|
11
|
11
33230-85210-000
Controller assy, vacuum
|
33230-85210-000 |
— | ||
| replacement | |||||
|
11
|
11
33230-85730-000 CONTROLLER ASSY,VACUUM |
33230-85730-000 |
US $32.80 |
||
|
11
|
11
33230-77310-000
Controller assy, vacuum
, , , Finland, Norway, Belgium, 6,,7, Sinagpore, Italy, Hong Kong, Morocco, Egypt,,China, Israel, 8, Trinidad and Tobago |
33230-77310-000 |
— | ||
| replacement | |||||
|
11
|
11
33230-85730-000 CONTROLLER ASSY,VACUUM, , , Finland, Norway, Belgium, 6,,7, Sinagpore, Italy, Hong Kong, Morocco, Egypt,,China, Israel, 8, Trinidad and Tobago |
33230-85730-000 |
US $32.80 |
||
|
11
|
11
33230-79750-000
CONTROLLER ASSY,VACUUM
Switzerland:N/CATALYZER |
33230-79750-000 |
— | ||
|
12
|
12
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
13
|
13
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
13
|
13
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
|
14
|
14
33267-79610-000
GEAR
|
33267-79610-000 |
— | ||
|
15
|
15
33268-72010-000 PIN,DISTRIBUTOR GEAR |
33268-72010-000 |
US $0.77 |
||
|
16
|
16
09100-08158-000
ボルト,8X30
|
09100-08158-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
17
|
17
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
18
|
18
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
19
|
19
33410-85010-000
コイルアッシ,イグニツシヨン
|
33410-85010-000 |
— | ||
| replacement | |||||
|
19
|
19
33410-850V0-000 COIL ASSY,IGNITION |
33410-850V0-000 |
US $87.58 |
||
|
19
|
19
33410-85210-000
Coil assy, ignition
, , Finland, Norway, Belgium, 6,,7, Sinagpore, Italy, Hong Kong, Saudi Arabia, Egypt,,United Arab Emirates, South Sea Islands, China, Israel, New Caledonia, Yemen (South),,8, Iceland |
33410-85210-000 |
— | ||
| replacement | |||||
|
19
|
19
33410-850V0-000 COIL ASSY,IGNITION, , Finland, Norway, Belgium, 6,,7, Sinagpore, Italy, Hong Kong, Saudi Arabia, Egypt,,United Arab Emirates, South Sea Islands, China, Israel, New Caledonia, Yemen (South),,8, Iceland |
33410-850V0-000 |
US $87.58 |
||
|
20
|
20
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
21
|
21
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
22
|
22
33700-85220-000
Cord assy, high tension
<-33700-85210 |
33700-85220-000 |
— | ||
| replacements | |||||
|
22
|
22
33705-85220-000
CORD SET,HIGH TENSION
<-33700-85210 |
33705-85220-000 |
— | ||
|
22
|
22
33710-85051-000 CORD,HT NO.1<-33700-85210 |
33710-85051-000 |
US $20 |
||
|
23
|
23
33710-85010-000
Cord, no.1
|
33710-85010-000 |
— | ||
| replacement | |||||
|
23
|
23
33710-85051-000 CORD,HT NO.1 |
33710-85051-000 |
US $20 |
||
|
24
|
24
33730-85220-000
CORD,HT NO.2
<-33730-85210 |
33730-85220-000 |
— | ||
|
25
|
25
33740-85220-000
CORD,HT NO.3
<-33740-85210 |
33740-85220-000 |
— | ||
|
26
|
26
33750-85220-000
CORD,HT NO.4
<-33750-85210 |
33750-85220-000 |
— | ||
|
27
|
27
33760-85220-000 CORD,HT NO.5<-33760-85210 |
33760-85220-000 |
US $20.53 |
||
|
28
|
28
33881-75100-000 CLAMP,HIGH TENSION CORD |
33881-75100-000 |
US $2.88 |
||
|
29
|
29
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
29
|
29
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
30
|
30
33881-85210-000
CLAMP,HT CORD DISTR SIDE
|
33881-85210-000 |
— | ||
|
31
|
31
33882-85210-000
SPACER,CORD
|
33882-85210-000 |
— | ||
|
32
|
32
33883-85210-000
CLAMP,HT CORD ENG HEAD
|
33883-85210-000 |
— | ||
|
33
|
33
09408-00022-000 CLIP |
09408-00022-000 |
US $9.90 |
||
