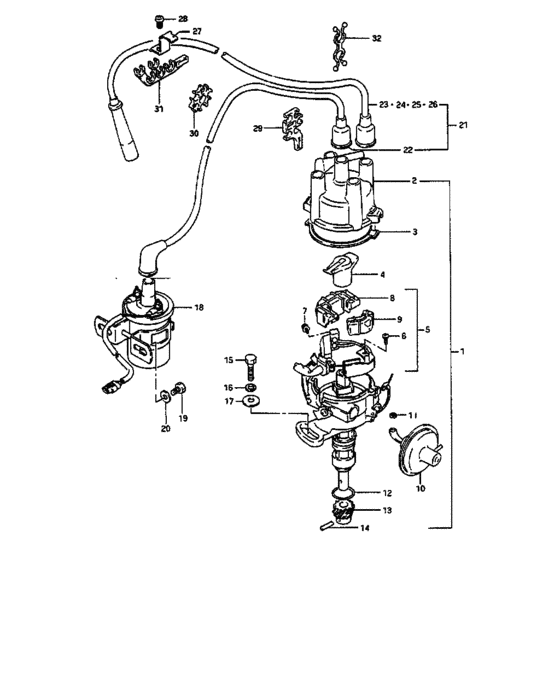

Distributor (Switzerland, Germany, Holland, Austria:W/CATALYZER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-85710-000 DISTRIBUTOR ASSYSwitzerland, Austria |
33100-85710-000 |
US $799.04 |
||
|
1
|
1
33100-85730-000
Distributor assy
Germany, Holland |
33100-85730-000 |
— | ||
| replacement | |||||
|
1
|
1
33100-85760-000
DISTRIBUTOR ASSY
Germany, Holland |
33100-85760-000 |
— | ||
|
2
|
2
33321-79210-000
Cap
|
33321-79210-000 |
— | ||
| replacement | |||||
|
2
|
2
33321-60A10-000 CAP,DISTRIBUTOR |
33321-60A10-000 |
US $15.96 |
||
|
3
|
3
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
4
|
4
33310-82110-000
ロータアッシ
<-33310-73010 |
33310-82110-000 |
— | ||
| replacement | |||||
|
4
|
4
33310-82010-000 ROTOR ASSY<-33310-73010 |
33310-82010-000 |
US $8.21 |
||
|
5
|
5
33370-85710-000 IGNITER ASSY |
33370-85710-000 |
US $390.08 |
||
|
6
|
6
33151-80020-000 SCREW,IGNITER |
33151-80020-000 |
US $1.60 |
||
|
7
|
7
33152-82010-000
スクリュ
|
33152-82010-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-3408A-000 SCREW |
02112-3408A-000 |
from US $0.80 |
||
|
7
|
7
02112-34086-000
Screw
|
02112-34086-000 |
— | ||
|
8
|
8
33297-80020-000
カバー,イグナイタダスト
|
33297-80020-000 |
— | ||
|
9
|
9
33279-80020-000 COVER,GENERATOR DUST |
33279-80020-000 |
US $9.44 |
||
|
10
|
10
33230-86710-000
Controller assy, vacuum
Switzerland, Austria |
33230-86710-000 |
— | ||
| replacement | |||||
|
10
|
10
33230-79750-000
CONTROLLER ASSY,VACUUM
Switzerland, Austria |
33230-79750-000 |
— | ||
|
10
|
10
33230-85730-000 CONTROLLER ASSY,VACUUMGermany, Holland |
33230-85730-000 |
US $32.80 |
||
|
11
|
11
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
12
|
12
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
12
|
12
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
|
13
|
13
33267-79610-000
GEAR
|
33267-79610-000 |
— | ||
|
14
|
14
33268-72010-000 PIN,DISTRIBUTOR GEAR |
33268-72010-000 |
US $0.77 |
||
|
15
|
15
09100-08158-000
ボルト,8X30
|
09100-08158-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
16
|
16
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
17
|
17
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
18
|
18
33410-85710-000
コイルアッシ,イグニツシヨン
|
33410-85710-000 |
— | ||
| replacement | |||||
|
18
|
18
33410-71C10-000 COIL ASSY,IGNITION |
33410-71C10-000 |
US $163.20 |
||
|
19
|
19
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
20
|
20
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
21
|
21
33700-85220-000
Cord assy, high tension
|
33700-85220-000 |
— | ||
| replacements | |||||
|
21
|
21
33705-85220-000
CORD SET,HIGH TENSION
|
33705-85220-000 |
— | ||
|
21
|
21
33710-85051-000 CORD,HT NO.1 |
33710-85051-000 |
US $20 |
||
|
22
|
22
33710-85010-000
Cord, no.1
|
33710-85010-000 |
— | ||
| replacement | |||||
|
22
|
22
33710-85051-000 CORD,HT NO.1 |
33710-85051-000 |
US $20 |
||
|
23
|
23
33730-85220-000
CORD,HT NO.2
|
33730-85220-000 |
— | ||
|
24
|
24
33740-85220-000
CORD,HT NO.3
|
33740-85220-000 |
— | ||
|
25
|
25
33750-85220-000
CORD,HT NO.4
|
33750-85220-000 |
— | ||
|
26
|
26
33760-85220-000 CORD,HT NO.5 |
33760-85220-000 |
US $20.53 |
||
|
27
|
27
33881-75100-000 CLAMP,HIGH TENSION CORD |
33881-75100-000 |
US $2.88 |
||
|
28
|
28
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
29
|
29
33881-85210-000
CLAMP,HT CORD DISTR SIDE
|
33881-85210-000 |
— | ||
|
30
|
30
33882-85210-000
SPACER,CORD
|
33882-85210-000 |
— | ||
|
31
|
31
33883-85210-000
CLAMP,HT CORD ENG HEAD
|
33883-85210-000 |
— | ||
|
32
|
32
09408-00022-000 CLIP |
09408-00022-000 |
US $9.90 |
||
