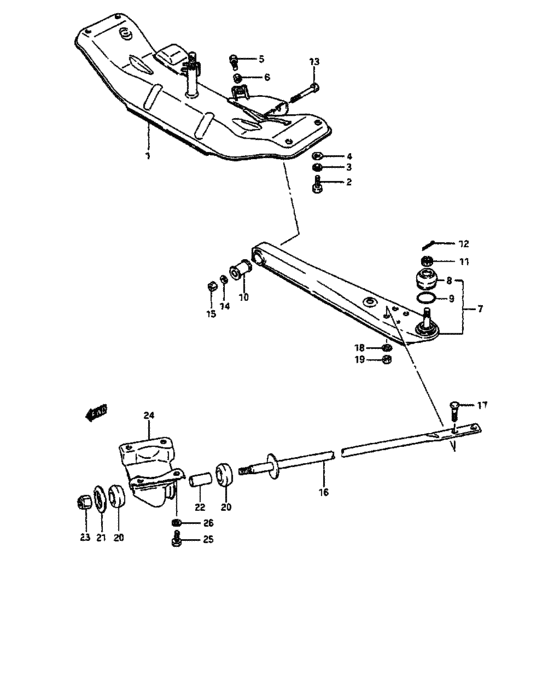

Front suspension frame (FRONT SUSPENSION FRAME) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56310-85202-000 FRAME,FR SUSPENSION<-56310-85002 |
56310-85202-000 |
US $440 |
||
|
2
|
2
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
2
|
2
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
3
|
3
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
4
|
4
08322-11103-000 ワッシャ |
08322-11103-000 |
US $1.07 |
||
| replacements | |||||
|
4
|
4
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
4
|
4
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
5
|
5
09100-08242-000
ボルト
~DA21T-100134,~DA21V-100490,~JSAEDA21T00100014,~JSAEDA21V00100297,~JSAEDA21V08100040 |
09100-08242-000 |
— | ||
|
6
|
6
08310-11083-000
ナット
~DA21T-100134,~DA21V-100490,~JSAEDA21T00100014,~JSAEDA21V00100297,~JSAEDA21V08100040 |
08310-11083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper ~DA21T-100134,~DA21V-100490,~JSAEDA21T00100014,~JSAEDA21V00100297,~JSAEDA21V08100040 |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
08310-0008B-000 NUT~DA21T-100134,~DA21V-100490,~JSAEDA21T00100014,~JSAEDA21V00100297,~JSAEDA21V08100040 |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
45200-85002-000 ARM ASSY,FR SPNSN<-45200-85001 |
45200-85002-000 |
US $120.80 |
||
|
8
|
8
45723-82000-000
ブーツセット
|
45723-82000-000 |
— | ||
| replacements | |||||
|
8
|
8
45723-70B00-000
SEAL SET,DUST
|
45723-70B00-000 |
— | ||
|
8
|
8
45723-70B01-000
Seal Set,dust
|
45723-70B01-000 |
— | ||
|
8
|
8
45700-70810-000 Seal Set,dust |
45700-70810-000 |
US $40.80 |
||
|
9
|
9
09401-27401-000
New Genuine Part
|
09401-27401-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
10
|
10
09319-10030-000 BUSH(10.2X25.5X52.2)Bushing DA21T-100978~,DA21V-102733~,JSAEDA21T00100063~,JSAEDA21V00104011~,JSAEDA21V08100331~ |
09319-10030-000 |
from US $5.87 |
||
|
11
|
11
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
13
|
13
09100-10124-000 BOLT(10X75) |
09100-10124-000 |
from US $2.82 |
||
|
14
|
14
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
15
|
15
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
15
|
15
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
15
|
15
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
16
|
16
45310-85000-000
ROD,FRONT SPNSN TENSION
|
45310-85000-000 |
— | ||
|
17
|
17
09119-10040-000 BOLT(10X25) |
09119-10040-000 |
US $1.92 |
||
|
18
|
18
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
18
|
18
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
19
|
19
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
19
|
19
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
20
|
20
45341-85010-000 BUSHING,TENSION ROD<-45341-79010 |
45341-85010-000 |
US $9.76 |
||
|
21
|
21
45312-85000-000
Washer,tension rod
|
45312-85000-000 |
— | ||
|
22
|
22
09180-15051-000 SPACER(15.3X19.9X44) |
09180-15051-000 |
US $2.08 |
||
|
23
|
23
09159-14016-000
ナット
|
09159-14016-000 |
— | ||
| replacement | |||||
|
23
|
23
09159-14008-000 NUT |
09159-14008-000 |
US $1.60 |
||
|
24
|
24
45350-85001-000 BRACKET,TENSION ROD<-45350-85000 |
45350-85001-000 |
US $32.80 |
||
|
25
|
25
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
26
|
26
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
26
|
26
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
26
|
26
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
