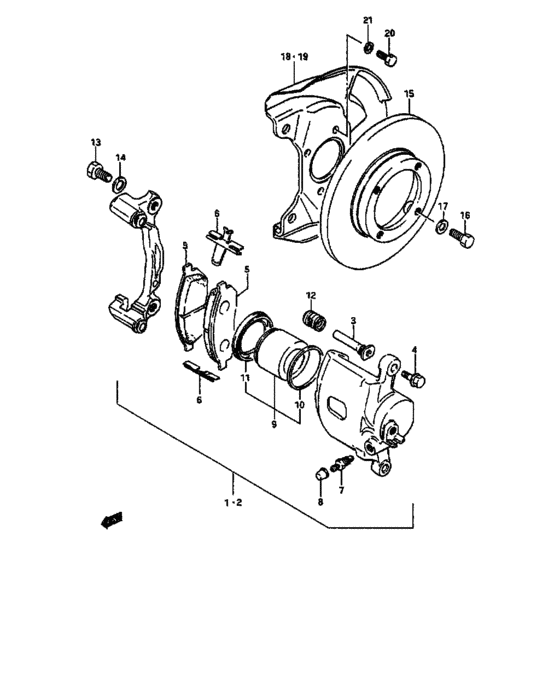

Front wheel brake (DISC TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-78461-000
Cariper assy, rh
TYPE 1 |
55101-78461-000 |
— | ||
| replacements | |||||
|
1
|
1
55101-56A60-999 CALIPER,FR BRAKE,RTYPE 1 |
55101-56A60-999 |
US $277.84 |
||
|
1
|
1
55200-56852-000 PAD SET,DISC BRAKETYPE 1 |
55200-56852-000 |
US $104.51 |
||
|
1
|
1
55101-85200-000
Cariper assy, rh
TYPE 1:Switzerland, Holland,JSAEDA21T00100064~,JSAEDA21V00104443~ |
55101-85200-000 |
— | ||
|
1
|
1
55101-85000-000
Caliper assy, rh
TYPE 2 |
55101-85000-000 |
— | ||
| replacements | |||||
|
1
|
1
55101-56A60-999 CALIPER,FR BRAKE,RTYPE 2 |
55101-56A60-999 |
US $277.84 |
||
|
1
|
1
55200-70862-000
Pad set
TYPE 2 |
55200-70862-000 |
— | ||
|
2
|
2
55102-78461-000
Cariper assy, lh
TYPE 1 |
55102-78461-000 |
— | ||
| replacements | |||||
|
2
|
2
55102-56A60-999 CALIPER,FR BRAKE,LTYPE 1 |
55102-56A60-999 |
US $277.84 |
||
|
2
|
2
55200-56852-000 PAD SET,DISC BRAKETYPE 1 |
55200-56852-000 |
US $104.51 |
||
|
2
|
2
55102-85200-000
Cariper assy, lh
TYPE 1:Switzerland, Holland,JSAEDA21T00100064~,JSAEDA21V00104443~ |
55102-85200-000 |
— | ||
|
2
|
2
55102-85000-000
CALIPER ASSY,FR DISC BRAKE,L
TYPE 2 |
55102-85000-000 |
— | ||
| replacement | |||||
|
2
|
2
55102-56A60-999 CALIPER,FR BRAKE,LTYPE 2 |
55102-56A60-999 |
US $277.84 |
||
|
3
|
3
55191-78450-000 PIN |
55191-78450-000 |
US $12.42 |
||
|
4
|
4
55206-78451-000
Bolt, pin
|
55206-78451-000 |
— | ||
| replacement | |||||
|
4
|
4
55206-78452-000 BOLT,PIN |
55206-78452-000 |
US $4.77 |
||
|
5
|
5
55210-78460-000
Pad
TYPE 1 |
55210-78460-000 |
— | ||
|
5
|
5
55210-85200-000
Pad
TYPE 1:Switzerland, Holland,JSAEDA21T00100064~,JSAEDA21V00104443~ |
55210-85200-000 |
— | ||
|
5
|
5
55210-85000-000
Pad
TYPE 2 |
55210-85000-000 |
— | ||
|
6
|
6
55234-78450-000 SPRING,PAD |
55234-78450-000 |
US $5.74 |
||
|
7
|
7
55151-78450-000
プラグ,ブリーダ
|
55151-78450-000 |
— | ||
| replacement | |||||
|
7
|
7
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
8
|
8
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
9
|
9
55100-78811-000
ピストン/カップセット
TYPE 1 |
55100-78811-000 |
— | ||
| replacement | |||||
|
9
|
9
55840-76G01-000 PISTON / SEAL SETTYPE 1 |
55840-76G01-000 |
US $23.56 |
||
|
9
|
9
55100-78812-000
ピストン/カップセット
TYPE 2 |
55100-78812-000 |
— | ||
| replacement | |||||
|
9
|
9
55840-76G01-000 PISTON / SEAL SETTYPE 2 |
55840-76G01-000 |
US $23.56 |
||
|
10
|
10
55136-78450-000
シール,ピストン
|
55136-78450-000 |
— | ||
| replacement | |||||
|
10
|
10
55830-76G01-000 SEAL SET,PISTON |
55830-76G01-000 |
US $11.55 |
||
|
11
|
11
55141-78450-000
ブーツ,ピストン
|
55141-78450-000 |
— | ||
|
12
|
12
55201-78450-000 BOOT,PIN |
55201-78450-000 |
US $2.31 |
||
|
13
|
13
09100-12117-000
ボルト
|
09100-12117-000 |
— | ||
| replacement | |||||
|
13
|
13
09119-12015-000 Bolt |
09119-12015-000 |
US $1.92 |
||
|
14
|
14
08321-31123-000
ロックワッシャ
|
08321-31123-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
15
|
15
55511-82000-000
ディスク,フロントブレーキ
|
55511-82000-000 |
— | ||
| replacement | |||||
|
15
|
15
55311-60B11-000 DISC,FR BRAKE |
55311-60B11-000 |
US $120.08 |
||
|
16
|
16
09100-10237-000 BOLT(10X23) |
09100-10237-000 |
US $1.44 |
||
|
17
|
17
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
17
|
17
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
18
|
18
55301-85000-000 HOLDER,BRAKE DISC,R |
55301-85000-000 |
US $57.60 |
||
|
19
|
19
55302-85000-000 HOLDER,BRAKE DISC,L |
55302-85000-000 |
US $57.60 |
||
|
20
|
20
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
21
|
21
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
