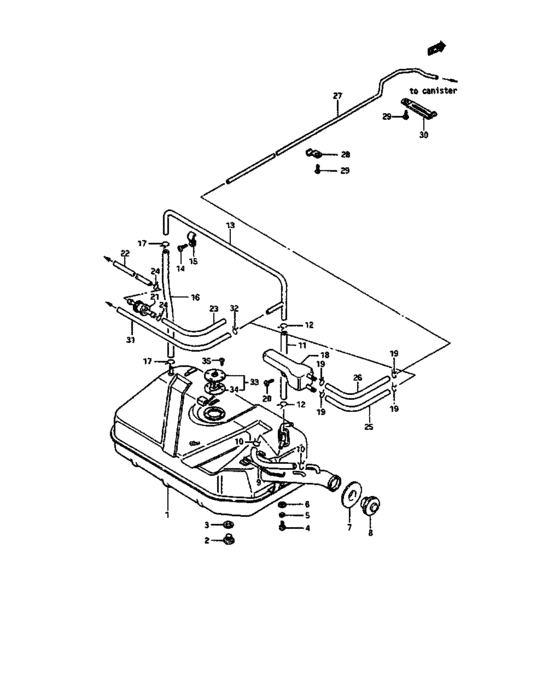

Fuel tank (T,K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-85000-000
Tank assy, fuel
T |
89101-85000-000 |
— | ||
|
1
|
1
89101-85010-000
Tank assy, fuel
K |
89101-85010-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-60C51-000
TANK ASSY,FUEL
K |
89101-60C51-000 |
— | ||
|
1
|
1
89101-85050-000
Tank assy, fuel
, Switzerland, Belgium, 5, Sinagpore, Italy, Israel |
89101-85050-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-60C51-000
TANK ASSY,FUEL
, Switzerland, Belgium, 5, Sinagpore, Italy, Israel |
89101-60C51-000 |
— | ||
|
2
|
2
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
2
|
2
01517-08166-000
Bolt 8x16
DA21T-100776~,JSAEDA21T00100053~ |
01517-08166-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0816B-000 BOLTDA21T-100776~,JSAEDA21T00100053~ |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
09168-12005-000
ガスケット,12X21X1.5
|
09168-12005-000 |
— | ||
| replacement | |||||
|
3
|
3
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
3
|
3
09168-08022-000
ガスケット,8X17.5X1.5
DA21T-100776~,JSAEDA21T00100053~ |
09168-08022-000 |
— | ||
| replacement | |||||
|
3
|
3
09168-08033-000
Gasket,8x17.5x1.5
DA21T-100776~,JSAEDA21T00100053~ |
09168-08033-000 |
— | ||
|
4
|
4
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
5
|
5
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
7
|
7
85369-67000-000 PACKING,FUEL TANK INLETT |
85369-67000-000 |
US $2.90 |
||
|
8
|
8
85410-79202-000
キャップアッシ,フューエルタンクフィラ
|
85410-79202-000 |
— | ||
| replacement | |||||
|
8
|
8
89260-50C00-000 CAP ASSY,FUEL FILLER |
89260-50C00-000 |
from US $35.24 |
||
|
8
|
8
89260-80001-000
キャップアッシ,フューエルフィラ
, Switzerland, Belgium, 5, Italy, Saudi Arabia, Israel |
89260-80001-000 |
— | ||
| replacement | |||||
|
8
|
8
89260-50C00-000 CAP ASSY,FUEL FILLER, Switzerland, Belgium, 5, Italy, Saudi Arabia, Israel |
89260-50C00-000 |
from US $35.24 |
||
|
9
|
9
09343-09028-000
Joint hose, breather
T, L:380->350 |
09343-09028-000 |
— | ||
| replacements | |||||
|
9
|
9
09352-90133-600
HOSE(9X13X600)
T, L:380->350 |
09352-90133-600 |
— | ||
|
9
|
9
09352-90134-600 Hose(9X13X600)T, L:380->350 |
09352-90134-600 |
from US $11.68 |
||
|
10
|
10
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
11
|
11
09343-09039-000
ホース,9X13X100
|
09343-09039-000 |
— | ||
| replacements | |||||
|
11
|
11
09352-90133-600
HOSE(9X13X600)
|
09352-90133-600 |
— | ||
|
11
|
11
09352-90134-600 Hose(9X13X600) |
09352-90134-600 |
from US $11.68 |
||
|
12
|
12
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
13
|
13
89250-85000-000 PIPE,FUEL TANK BREATHER |
89250-85000-000 |
US $17.60 |
||
|
14
|
14
03112-06129-000
New Genuine Part
|
03112-06129-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
15
|
15
09403-09306-000 CLAMP |
09403-09306-000 |
from US $1.12 |
||
|
16
|
16
09343-09017-000
Hose 9x14x700
L:700->165 |
09343-09017-000 |
— | ||
|
17
|
17
09401-14301-000 CLIPClip |
09401-14301-000 |
from US $2.13 |
||
|
18
|
18
85421-79000-000 SEPARATOR,FUELSaudi Arabia |
85421-79000-000 |
US $18.95 |
||
|
19
|
19
09401-08301-000 CLIPSaudi Arabia |
09401-08301-000 |
from US $0.96 |
||
|
20
|
20
03141-06166-000
New Genuine Part
Saudi Arabia |
03141-06166-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0616A-000 SCREWSaudi Arabia |
03141-0616A-000 |
from US $0.76 |
||
|
21
|
21
85451-75100-000 VALVE,2WAY CHECKValve, check , Switzerland, Belgium, 5, Italy, Israel |
85451-75100-000 |
from US $30.40 |
||
|
22
|
22
09344-05024-000
Hose, breather outlet
, Switzerland, Belgium, 5, Italy, Israel |
09344-05024-000 |
— | ||
| replacement | |||||
|
22
|
22
09351-50803-00B HOSE(5X8X2000)Hose, overflow , Switzerland, Belgium, 5, Italy, Israel |
09351-50803-00B |
from US $8.66 |
||
|
23
|
23
09344-05040-000 Hose, valve inlet, Switzerland, Belgium, 5, Italy, Israel |
09344-05040-000 |
US $1.98 |
||
| replacements | |||||
|
23
|
23
09351-50803-00B HOSE(5X8X2000)Hose, overflow , Switzerland, Belgium, 5, Italy, Israel |
09351-50803-00B |
from US $8.66 |
||
|
23
|
23
09351-50803-00A HOSE(5X8X1000), Switzerland, Belgium, 5, Italy, Israel |
09351-50803-00A |
US $10.29 |
||
|
24
|
24
09401-08401-000 CLIPClip, fuel hose , Switzerland, Belgium, 5, Italy, Israel |
09401-08401-000 |
from US $0.96 |
||
|
25
|
25
09343-05129-000
Hose, fuel (l:240)
Saudi Arabia:L:240->220 |
09343-05129-000 |
— | ||
| replacements | |||||
|
25
|
25
44420-44AR0-000 HOSE SET,FUELSaudi Arabia:L:240->220 |
44420-44AR0-000 |
US $11.95 |
||
|
25
|
25
09352-50823-600
HOSE(5X8.2X600)
Saudi Arabia:L:240->220 |
09352-50823-600 |
— | ||
|
25
|
25
09352-50005-600 Hose(5X8.2X600)Saudi Arabia:L:240->220 |
09352-50005-600 |
US $4.10 |
||
|
26
|
26
09343-05129-000
Hose, fuel (l:240)
Saudi Arabia |
09343-05129-000 |
— | ||
| replacements | |||||
|
26
|
26
44420-44AR0-000 HOSE SET,FUELSaudi Arabia |
44420-44AR0-000 |
US $11.95 |
||
|
26
|
26
09352-50823-600
HOSE(5X8.2X600)
Saudi Arabia |
09352-50823-600 |
— | ||
|
26
|
26
09352-50005-600 Hose(5X8.2X600)Saudi Arabia |
09352-50005-600 |
US $4.10 |
||
|
27
|
27
89461-85200-000
PIPE,FUEL TANK EVAP
Saudi Arabia |
89461-85200-000 |
— | ||
|
28
|
28
09403-05302-000 CLAMPClamp Saudi Arabia |
09403-05302-000 |
US $1.28 |
||
|
29
|
29
03112-06129-000
New Genuine Part
Saudi Arabia |
03112-06129-000 |
— | ||
| replacement | |||||
|
29
|
29
03111-0612A-000 SCREWSaudi Arabia |
03111-0612A-000 |
US $0.80 |
||
|
30
|
30
09404-06401-000
Clamp, oil hose
Saudi Arabia |
09404-06401-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06432-000
CLAMP(L:65)
Saudi Arabia |
09404-06432-000 |
— | ||
|
30
|
30
09404-06206-000
CLAMP(L:45)
Saudi Arabia |
09404-06206-000 |
— | ||
|
30
|
30
09404-06039-000 Clamp(L:65)Saudi Arabia |
09404-06039-000 |
from US $1.82 |
||
|
30
|
30
09404-06031-000 Clamp,rsvr Tank Ovfl HoseSaudi Arabia |
09404-06031-000 |
from US $1.37 |
||
|
31
|
31
09344-05014-000
Hose, inlet
|
09344-05014-000 |
— | ||
| replacement | |||||
|
31
|
31
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
32
|
32
09401-08301-000 CLIP |
09401-08301-000 |
from US $0.96 |
||
|
33
|
33
34810-79002-000 GAUGE ASSY,FUEL LEVEL |
34810-79002-000 |
US $39.20 |
||
|
34
|
34
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
35
|
35
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
35
|
35
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
