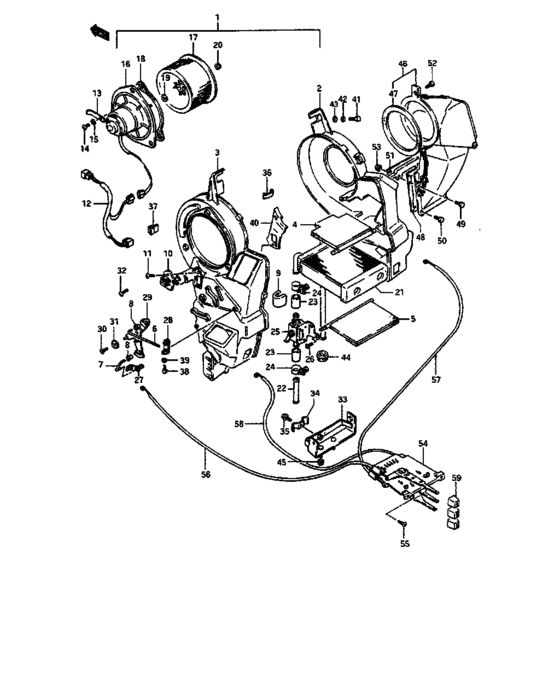

Heater (HEATER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-85200-000
Heater assy
LHD |
74100-85200-000 |
— | ||
|
1
|
1
74100-85001-000
ヒータアッシ
RHD |
74100-85001-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-85010-000
Heater assy
RHD |
74100-85010-000 |
— | ||
|
2
|
2
74111-85200-000 CASE,HEATER,LLHD |
74111-85200-000 |
US $55.94 |
||
|
2
|
2
74111-85000-000
CASE,HEATER
RHD |
74111-85000-000 |
— | ||
|
3
|
3
74112-85200-000 CASE,HEATER,RLHD |
74112-85200-000 |
US $55.94 |
||
|
3
|
3
74112-85000-000
CASE,HEATER
RHD |
74112-85000-000 |
— | ||
|
4
|
4
74113-85200-000 DAMPER,VENTLHD |
74113-85200-000 |
US $15.46 |
||
|
4
|
4
74113-85000-000
DAMPER ASSY
RHD |
74113-85000-000 |
— | ||
|
5
|
5
74114-85200-000 DAMPER,HEAT/DEFLHD |
74114-85200-000 |
US $15.46 |
||
|
5
|
5
74114-85000-000
DAMPER ASSY
RHD |
74114-85000-000 |
— | ||
|
6
|
6
74115-85000-000 SHAFT |
74115-85000-000 |
US $3.46 |
||
|
7
|
7
74116-85000-000
シャフト
|
74116-85000-000 |
— | ||
|
8
|
8
74117-85000-000
カラー,リンク
|
74117-85000-000 |
— | ||
| replacement | |||||
|
8
|
8
74189-64A00-000 BUSH |
74189-64A00-000 |
US $1.91 |
||
|
9
|
9
74118-85000-000
COVER,HEATER
|
74118-85000-000 |
— | ||
|
10
|
10
74120-85200-000
RESISTOR
LHD |
74120-85200-000 |
— | ||
|
10
|
10
74120-85000-000 REGISTER,BLOWERRHD |
74120-85000-000 |
US $17.66 |
||
|
11
|
11
03211-04126-000
Screw
|
03211-04126-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
12
|
12
74121-85200-000
Wire
LHD |
74121-85200-000 |
— | ||
|
12
|
12
74121-85000-000
ワイヤ,エアコンディショナ
RHD |
74121-85000-000 |
— | ||
|
13
|
13
74122-85000-000
Clamp
|
74122-85000-000 |
— | ||
| replacements | |||||
|
13
|
13
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
13
|
13
09404-06405-000
Clamp
|
09404-06405-000 |
— | ||
|
13
|
13
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
13
|
13
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
13
|
13
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
14
|
14
03212-05169-000
Screw
|
03212-05169-000 |
— | ||
| replacements | |||||
|
14
|
14
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
14
|
14
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
15
|
15
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
16
|
16
74140-80060-000 MOTOR ASSY |
74140-80060-000 |
US $309.12 |
||
|
17
|
17
88140-78000-000 BLOWER ASSYLHD |
88140-78000-000 |
US $20.61 |
||
|
17
|
17
88190-79000-000 FAN,BLOWERRHD |
88190-79000-000 |
US $29.81 |
||
|
18
|
18
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
19
|
19
88196-79000-000
ワッシャ
|
88196-79000-000 |
— | ||
| replacement | |||||
|
19
|
19
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
20
|
20
08316-16056-000
Nut
|
08316-16056-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
21
|
21
74130-85200-000
Unit,radiator
LHD |
74130-85200-000 |
— | ||
|
21
|
21
74130-85001-000
ユニットアッシ,ラジエータ
RHD |
74130-85001-000 |
— | ||
| replacement | |||||
|
21
|
21
74130-85010-000 UNIT ASSY,RADIATORRHD |
74130-85010-000 |
US $478.72 |
||
|
22
|
22
74131-85000-000 PIPE |
74131-85000-000 |
US $5.60 |
||
|
23
|
23
74132-85000-000 HOSE |
74132-85000-000 |
US $1.60 |
||
|
24
|
24
88165-79000-000
クランプ
<-74133-85000 |
88165-79000-000 |
— | ||
| replacements | |||||
|
24
|
24
09400-20311-000 CLAMP<-74133-85000 |
09400-20311-000 |
US $17.30 |
||
|
24
|
24
09400-20901-000
Clamp
<-74133-85000 |
09400-20901-000 |
— | ||
|
25
|
25
74710-85200-000
VALVE ASSY,WATER
LHD |
74710-85200-000 |
— | ||
|
25
|
25
74710-85000-000
バルブアッシ,ウォータ
RHD |
74710-85000-000 |
— | ||
| replacement | |||||
|
25
|
25
74710-85001-000 VALVE,WATERRHD |
74710-85001-000 |
US $72.86 |
||
|
26
|
26
03112-05169-000
スクリュ
|
03112-05169-000 |
— | ||
| replacement | |||||
|
26
|
26
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
27
|
27
74161-85000-000
レバーサブアッシ,コントロール
|
74161-85000-000 |
— | ||
| replacement | |||||
|
27
|
27
74180-85000-000 LEVER ASSY,HEAT |
74180-85000-000 |
US $7.73 |
||
|
28
|
28
74162-85200-000 LEVER ASSY,CONTROLLHD |
74162-85200-000 |
US $3.46 |
||
|
28
|
28
74162-85000-000
LEVER ASSY,CONT
RHD |
74162-85000-000 |
— | ||
|
29
|
29
74163-85200-000 LEVER ASSY,CONTROLLHD |
74163-85200-000 |
US $9.64 |
||
|
29
|
29
74163-85000-000
LEVER ASSY,CONT
RHD |
74163-85000-000 |
— | ||
|
30
|
30
03111-04165-000
Screw
|
03111-04165-000 |
— | ||
| replacement | |||||
|
30
|
30
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
31
|
31
74183-85000-000
ワッシャ
|
74183-85000-000 |
— | ||
|
32
|
32
03212-04169-000 SCREWScrew |
03212-04169-000 |
from US $2.13 |
||
|
33
|
33
74171-85200-000 BRACKETLHD |
74171-85200-000 |
US $20.98 |
||
|
33
|
33
74171-85000-000
BRACKET
RHD |
74171-85000-000 |
— | ||
|
34
|
34
74172-85200-000
CLAMP
LHD |
74172-85200-000 |
— | ||
|
34
|
34
74172-85000-000
クランプ
RHD |
74172-85000-000 |
— | ||
|
35
|
35
74173-85000-000 Bolt |
74173-85000-000 |
US $1.62 |
||
|
36
|
36
95495-78000-000
Clamp, evaporator case
<-88119-79000 |
95495-78000-000 |
— | ||
| replacement | |||||
|
36
|
36
74133-82000-000 CLAMP,CASE<-88119-79000 |
74133-82000-000 |
US $2.91 |
||
|
37
|
37
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
38
|
38
02112-03087-000
L.lock washer
|
02112-03087-000 |
— | ||
| replacement | |||||
|
38
|
38
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
39
|
39
08321-21038-000
Lock washer
|
08321-21038-000 |
— | ||
| replacements | |||||
|
39
|
39
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
39
|
39
09162-03001-000 WASHER,LOCKLock washer |
09162-03001-000 |
from US $1.85 |
||
|
40
|
40
74119-85000-000
プレート,カバー
|
74119-85000-000 |
— | ||
|
41
|
41
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
41
|
41
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
42
|
42
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
42
|
42
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
43
|
43
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
43
|
43
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
44
|
44
09308-10005-000 GROMMETGrommet, rr lead |
09308-10005-000 |
from US $1.72 |
||
|
45
|
45
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
45
|
45
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
46
|
46
74200-85200-000
BOX ASSY,HTR CONTROL
LHD |
74200-85200-000 |
— | ||
|
46
|
46
74200-85001-000
Box assy,htr control
RHD, <-74200-85000 |
74200-85001-000 |
— | ||
|
47
|
47
74213-85000-000 PAD,HTR CONTROL BOX |
74213-85000-000 |
US $5.60 |
||
|
48
|
48
74214-85000-000 PACKING,HEATER CONTROL BOX |
74214-85000-000 |
US $6.24 |
||
|
49
|
49
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
49
|
49
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
50
|
50
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
50
|
50
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
51
|
51
74252-85200-000 GUTTER,CONTROL BOXLHD |
74252-85200-000 |
US $4.23 |
||
|
51
|
51
74252-85000-000
ガッタ,コントロールボックス
RHD |
74252-85000-000 |
— | ||
|
52
|
52
03141-06168-000
スクリュ
|
03141-06168-000 |
— | ||
| replacement | |||||
|
52
|
52
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
53
|
53
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
53
|
53
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
54
|
54
74400-85000-000 LEVER ASSY,HTR CONT |
74400-85000-000 |
US $37.90 |
||
|
55
|
55
03141-05126-000
Screw
|
03141-05126-000 |
— | ||
| replacement | |||||
|
55
|
55
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
56
|
56
74441-85200-000 CABLE,HEAT&VENT&DFR,LLHD |
74441-85200-000 |
US $4.31 |
||
|
56
|
56
74441-85000-000
CABLE,HEAT&BENT&DEFROSTER
RHD |
74441-85000-000 |
— | ||
|
57
|
57
74442-85000-000
CABLE,COOL&HOT
|
74442-85000-000 |
— | ||
|
58
|
58
74443-85200-000 CABLE,FRESH&CIRCULATIONLHD |
74443-85200-000 |
US $4.23 |
||
|
58
|
58
74443-85000-000
CABLE,FRESH&CIRCULATION
RHD |
74443-85000-000 |
— | ||
|
59
|
59
74431-85000-000
New Genuine Part
|
74431-85000-000 |
— | ||
| replacement | |||||
|
59
|
59
74417-60A00-000 KNOB,CONTROL LEVER |
74417-60A00-000 |
US $1.60 |
||
