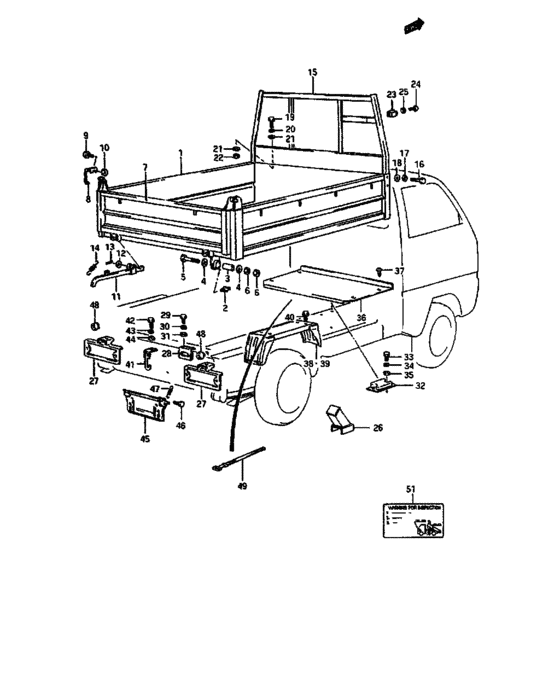

Rear body panel (DUMP TRUCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73100-85950-000
Body assy, rear
|
73100-85950-000 |
— | ||
| replacement | |||||
|
1
|
1
97641-8595V-000
ブッシュ,リヤボディNO.1
|
97641-8595V-000 |
— | ||
|
2
|
2
97641-67202-000 NIPPLE,GREASE |
97641-67202-000 |
US $8.02 |
||
|
3
|
3
97642-85970-000
Pin, rear body
<-97642-79340 |
97642-85970-000 |
— | ||
| replacement | |||||
|
3
|
3
97642-79340-000
ピン,デッキフロア
<-97642-79340 |
97642-79340-000 |
— | ||
|
4
|
4
97643-67202-000
Washer
|
97643-67202-000 |
— | ||
| replacement | |||||
|
4
|
4
97643-72D00-000
Washerxx
|
97643-72D00-000 |
— | ||
|
5
|
5
09100-10109-000
Bolt
|
09100-10109-000 |
— | ||
| replacement | |||||
|
5
|
5
09100-10152-000 BOLT(10X115) |
09100-10152-000 |
from US $3.93 |
||
|
6
|
6
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
6
|
6
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
7
|
7
73710-79340-000
Gate, deck rear
|
73710-79340-000 |
— | ||
|
8
|
8
97542-67202-000
HOOK,TAIL GATE
|
97542-67202-000 |
— | ||
|
9
|
9
01107-10256-000
Bolt 10x25 upper
|
01107-10256-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
10
|
10
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
97711-79340-000
Arm, rear gate lock
|
97711-79340-000 |
— | ||
|
12
|
12
09160-12001-000 WASHER(12.5X32X2.3)Washer, lh |
09160-12001-000 |
US $1.60 |
||
|
13
|
13
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
13
|
13
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
14
|
14
97716-79340-000
Spring
|
97716-79340-000 |
— | ||
|
15
|
15
93310-85950-000
Protector, cabin
|
93310-85950-000 |
— | ||
|
16
|
16
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
17
|
17
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
17
|
17
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
17
|
17
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
18
|
18
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
20
|
20
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
21
|
21
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
22
|
22
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
93318-79940-000 CLAMP,SHOVEL |
93318-79940-000 |
US $37.54 |
||
|
24
|
24
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
24
|
24
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
25
|
25
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
26
|
26
97560-79340-000
Block, safety
|
97560-79340-000 |
— | ||
|
27
|
27
73221-79340-000
Bracket, tail lamp
|
73221-79340-000 |
— | ||
| replacement | |||||
|
27
|
27
73220-72D00-000
New Genuine Part
|
73220-72D00-000 |
— | ||
|
28
|
28
73224-79340-000
Bracket, back up lamp
|
73224-79340-000 |
— | ||
|
29
|
29
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
29
|
29
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
30
|
30
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
30
|
30
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
31
|
31
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
31
|
31
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
32
|
32
73251-79340-000 PACKING,FRAME |
73251-79340-000 |
US $36.06 |
||
|
33
|
33
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
34
|
34
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
35
|
35
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
36
|
36
73811-79340-000
Panel, engine splash
|
73811-79340-000 |
— | ||
|
37
|
37
03141-06168-000
スクリュ
|
03141-06168-000 |
— | ||
| replacement | |||||
|
37
|
37
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
38
|
38
73360-79940-000
Panel, rear wheel house rh
|
73360-79940-000 |
— | ||
| replacement | |||||
|
38
|
38
73360-72D00-000 PANEL,RR WHEEL HOUSE |
73360-72D00-000 |
US $144.26 |
||
|
39
|
39
73370-79940-000
Panel, rear wheel house lh
|
73370-79940-000 |
— | ||
| replacement | |||||
|
39
|
39
73360-72D00-000 PANEL,RR WHEEL HOUSE |
73360-72D00-000 |
US $144.26 |
||
|
40
|
40
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
41
|
41
73823-79370-000
Hook, spare tire
|
73823-79370-000 |
— | ||
|
42
|
42
08310-22067-000 Nut |
08310-22067-000 |
US $1.98 |
||
| replacement | |||||
|
42
|
42
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
43
|
43
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
43
|
43
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
44
|
44
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
44
|
44
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
45
|
45
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
45
|
45
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
46
|
46
73860-79000-000
ブラケット,リヤライセンス
|
73860-79000-000 |
— | ||
| replacement | |||||
|
46
|
46
73860-70D00-000 BRACKET,RR LICENSE |
73860-70D00-000 |
US $17.60 |
||
|
47
|
47
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
48
|
48
09443-15004-000 SPRING |
09443-15004-000 |
US $2.08 |
||
|
49
|
49
73941-79000-000
ストッパ,ゲートオープン
|
73941-79000-000 |
— | ||
| replacement | |||||
|
49
|
49
73941-79010-000 STOPPER,GATE OPEN |
73941-79010-000 |
from US $5.25 |
||
|
50
|
50
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $1.98 |
||
|
51
|
51
97951-79370-000
Caution plate, damp safety
|
97951-79370-000 |
— | ||
