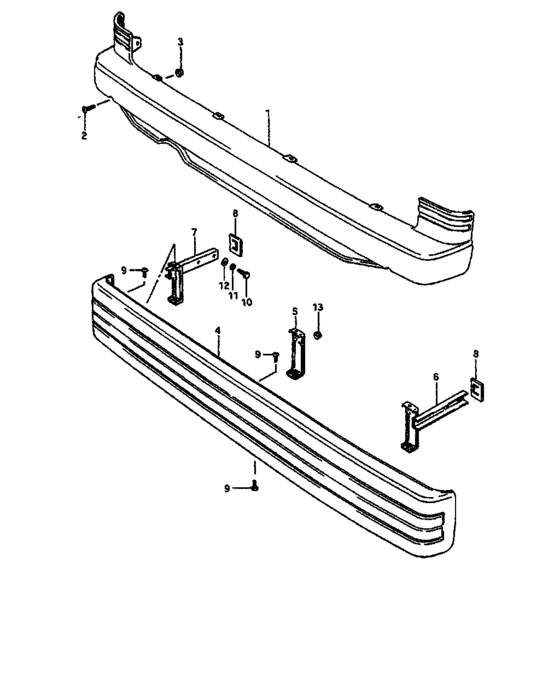

Rear bumber (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71800-85700-000
BAR ASSY,RR BUMPER
LOW FLOOR |
71800-85700-000 |
— | ||
|
2
|
2
02142-06164-000
Screw
LOW FLOOR |
02142-06164-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0616A-000 SCREWLOW FLOOR |
02142-0616A-000 |
from US $0.76 |
||
|
3
|
3
09159-06017-000
Adjust nut
LOW FLOOR |
09159-06017-000 |
— | ||
| replacement | |||||
|
3
|
3
08319-31067-000 NUTNut, center LOW FLOOR |
08319-31067-000 |
from US $1.44 |
||
|
4
|
4
71811-85510-000
Bar, rear bumper
FLAT FLOOR |
71811-85510-000 |
— | ||
| replacement | |||||
|
4
|
4
71811-85510-5PK BAR,RR BUMPER(BLACK)FLAT FLOOR |
71811-85510-5PK |
US $153.82 |
||
|
5
|
5
71820-85510-000
STAY,REAR BUMPER CENTER
FLAT FLOOR |
71820-85510-000 |
— | ||
|
6
|
6
71830-85510-000
STAY,REAR BUMPER,R
FLAT FLOOR |
71830-85510-000 |
— | ||
|
7
|
7
71840-85510-000
STAY,REAR BUMPER,L
FLAT FLOOR |
71840-85510-000 |
— | ||
|
8
|
8
71834-85510-000
DUST SEAL,RR BUMPER
FLAT FLOOR |
71834-85510-000 |
— | ||
|
9
|
9
02142-06125-000
Screw
FLAT FLOOR |
02142-06125-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0612B-000 SCREWFLAT FLOOR |
02142-0612B-000 |
from US $0.76 |
||
|
9
|
9
02142-0612A-000 SCREWFLAT FLOOR |
02142-0612A-000 |
from US $0.80 |
||
|
10
|
10
01107-08207-000 Bolt, rearFLAT FLOOR |
01107-08207-000 |
US $2.38 |
||
| replacement | |||||
|
10
|
10
01500-08207-000 BoltFLAT FLOOR |
01500-08207-000 |
from US $0.76 |
||
|
11
|
11
08321-21088-000
Lock washer
FLAT FLOOR |
08321-21088-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01087-000 WASHER,LOCKWasher, lock FLAT FLOOR |
08321-01087-000 |
from US $0.76 |
||
|
12
|
12
08322-11088-000
Washer
FLAT FLOOR |
08322-11088-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01087-000 WASHERLock washer FLAT FLOOR |
08322-01087-000 |
from US $0.76 |
||
|
13
|
13
08316-16086-000
Nut, reverse lever pivot
FLAT FLOOR |
08316-16086-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUTFLAT FLOOR |
08316-1008B-000 |
from US $0.76 |
||
