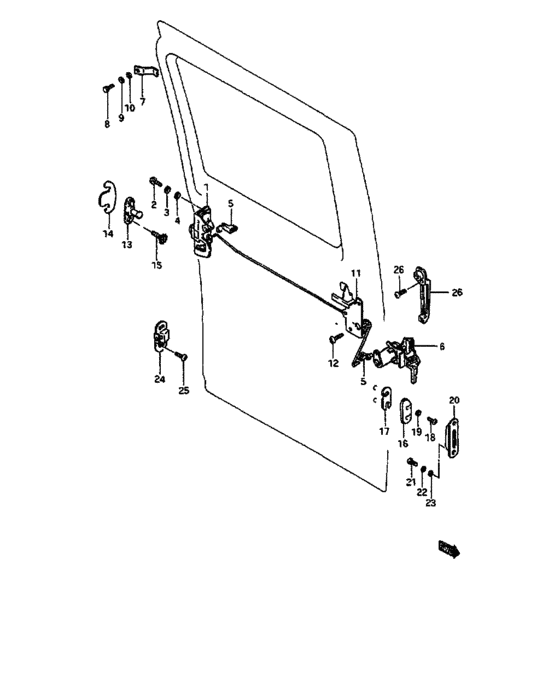

Rear door lock (PANEL VAN) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77104-79500-000 LOCK ASSY,RR DR,L |
77104-79500-000 |
US $53.73 |
||
|
2
|
2
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
2
|
2
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
2
|
2
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
3
|
3
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
4
|
4
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
77400-79820-000
Key cylinder assy
|
77400-79820-000 |
— | ||
|
7
|
7
68397-61300-000
SPRING,RR DOOR STOPPER
|
68397-61300-000 |
— | ||
|
8
|
8
01107-05106-000
Bolt
|
01107-05106-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0510B-000 Bolt |
01500-0510B-000 |
from US $0.80 |
||
|
9
|
9
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
9
|
9
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
10
|
10
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
10
|
10
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
11
|
11
77660-79300-000
Handle,rr door inside,l
|
77660-79300-000 |
— | ||
|
12
|
12
02142-06086-000
Screw
|
02142-06086-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0608A-000 SCREW |
02142-0608A-000 |
from US $1.60 |
||
|
13
|
13
78130-79500-000 STRIKER,DOOR LOCK |
78130-79500-000 |
US $17 |
||
|
14
|
14
78199-79000-000 SPACER |
78199-79000-000 |
US $1.60 |
||
|
15
|
15
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
15
|
15
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
16
|
16
77748-68000-000
Male, shut stopper front
|
77748-68000-000 |
— | ||
|
17
|
17
77898-61300-000
Spacer
|
77898-61300-000 |
— | ||
|
18
|
18
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
19
|
19
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
20
|
20
77758-68000-000
Female, shut stopper front
|
77758-68000-000 |
— | ||
|
21
|
21
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
21
|
21
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
21
|
21
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
22
|
22
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
23
|
23
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
24
|
24
78250-79500-000 SHUT STOPPER,REAR |
78250-79500-000 |
US $7.29 |
||
|
25
|
25
02142-06086-000
Screw
|
02142-06086-000 |
— | ||
| replacement | |||||
|
25
|
25
02142-0608A-000 SCREW |
02142-0608A-000 |
from US $1.60 |
||
|
26
|
26
78330-79600-000 HANDLE,OUTSIDE |
78330-79600-000 |
US $52.45 |
||
|
27
|
27
02142-06086-000
Screw
|
02142-06086-000 |
— | ||
| replacement | |||||
|
27
|
27
02142-0608A-000 SCREW |
02142-0608A-000 |
from US $1.60 |
||
