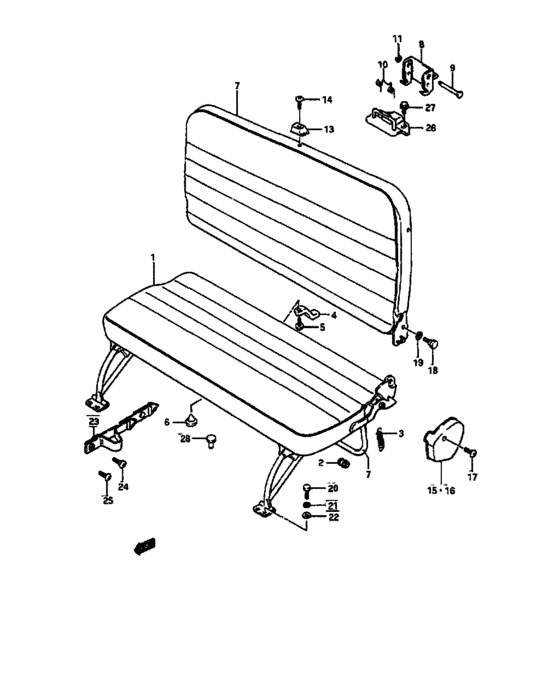

Rear seat (LOW FLOOR:BENCH TYPE , Switzerland, Germany, Holland, New Zealand, Austria, Israel) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-85740-7WS
Cushion assy, seat
TYPE 1:TA |
87101-85740-7WS |
— | ||
|
1
|
1
87101-85740-7WV
Cushion assy, seat
TYPE 1:TA |
87101-85740-7WV |
— | ||
|
1
|
1
87101-85740-9WR
Cushion assy, seat
TYPE 2:TA |
87101-85740-9WR |
— | ||
|
1
|
1
87101-85450-8FE
Cushion assy, seat
TYPE 1:TA:Israel |
87101-85450-8FE |
— | ||
|
1
|
1
87101-85450-8FF
Cushion assy, seat
TYPE 1:TA:Israel |
87101-85450-8FF |
— | ||
|
1
|
1
87101-85450-2EH
Cushion assy, seat
TYPE 2:TA:Israel |
87101-85450-2EH |
— | ||
|
1
|
1
87101-85720-7WU
Cushion assy, rear seat
TYPE 1:TX |
87101-85720-7WU |
— | ||
|
1
|
1
87101-85720-7WY
Cushion assy, rear seat
TYPE 1:TX |
87101-85720-7WY |
— | ||
|
1
|
1
87101-85720-2EG
Cushion assy, rear seat
TYPE 2:TX |
87101-85720-2EG |
— | ||
|
2
|
2
84354-79450-000
Cushion
|
84354-79450-000 |
— | ||
|
3
|
3
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
4
|
4
87291-85720-000
CUSHION,REAR SEAT REAR
|
87291-85720-000 |
— | ||
|
5
|
5
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
6
|
6
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
7
|
7
87260-85720-000
Leg, seat cushion
|
87260-85720-000 |
— | ||
|
8
|
8
84363-79450-000 STOPPER,SEAT BELT ANCHOR |
84363-79450-000 |
US $20.61 |
||
|
9
|
9
84366-79450-000 PIN,SEAT BELT ANCHOR STOPPER |
84366-79450-000 |
US $4.53 |
||
|
10
|
10
84367-79450-000
Spring,rr seat belt
|
84367-79450-000 |
— | ||
|
11
|
11
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
11
|
11
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
12
|
12
87301-85740-7WS
Back assy, seat
TYPE 1:TA |
87301-85740-7WS |
— | ||
|
12
|
12
87301-85740-7WV
Back assy, seat
TYPE 1:TA |
87301-85740-7WV |
— | ||
|
12
|
12
87301-85740-9WR
Back assy, seat
TYPE 2:TA |
87301-85740-9WR |
— | ||
|
12
|
12
87301-85450-8FE
Back assy, seat
TYPE 1:TA:Israel |
87301-85450-8FE |
— | ||
|
12
|
12
87301-85450-8FF
Back assy, seat
TYPE 1:TA:Israel |
87301-85450-8FF |
— | ||
|
12
|
12
87301-85450-2EH
Back assy, seat
TYPE 2:TA:Israel |
87301-85450-2EH |
— | ||
|
12
|
12
87301-85720-7WU
Back assy, rear seat
TYPE 1:TX |
87301-85720-7WU |
— | ||
|
12
|
12
87301-85720-7WY
Back assy, rear seat
TYPE 1:TX |
87301-85720-7WY |
— | ||
|
12
|
12
87301-85720-2EG
Back assy, rear seat
TYPE 2:TX |
87301-85720-2EG |
— | ||
|
13
|
13
87396-85530-000 CUSHION,REAR SEAT BACK STOPPER |
87396-85530-000 |
US $1.98 |
||
|
14
|
14
03241-05108-000
New Genuine Part
|
03241-05108-000 |
— | ||
| replacements | |||||
|
14
|
14
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
14
|
14
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
15
|
15
87221-85530-281
カバー,リヤシートヒンジ,ライト
|
87221-85530-281 |
— | ||
|
16
|
16
87222-85530-281
カバー,リヤシートヒンジ,レフト
|
87222-85530-281 |
— | ||
| replacement | |||||
|
16
|
16
87222-85530-5PK
COVER,RR SEAT HINGE,L
|
87222-85530-5PK |
— | ||
|
17
|
17
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
18
|
18
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
19
|
19
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
20
|
20
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
21
|
21
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
22
|
22
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
87880-85720-000 BAND,RR SEAT STOPPER |
87880-85720-000 |
US $15.46 |
||
|
24
|
24
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
25
|
25
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
26
|
26
87830-85720-000
Striker comp,rear seat lock
|
87830-85720-000 |
— | ||
|
27
|
27
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
27
|
27
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
28
|
28
09250-10013-000
Plug, seat lock striker hole
2 PERSONS |
09250-10013-000 |
— | ||
| replacement | |||||
|
28
|
28
09250-10017-000 PLUG(OD:22)2 PERSONS |
09250-10017-000 |
US $17.70 |
||
