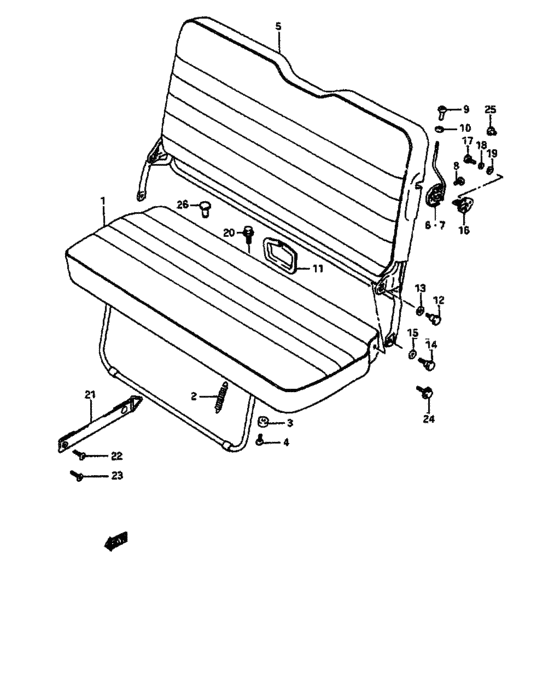

Rear seat (FLAT FLOOR:BENCH TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-85760-7WS
Cushion assy, seat
TYPE 1 |
87101-85760-7WS |
— | ||
|
1
|
1
87101-85760-7WV
Cushion assy, seat
TYPE 1 |
87101-85760-7WV |
— | ||
|
1
|
1
87101-85760-9WR
Cushion assy, seat
TYPE 2 |
87101-85760-9WR |
— | ||
|
1
|
1
87101-85460-2EH
Cushion assy, seat
TYPE 2:TA:Israel |
87101-85460-2EH |
— | ||
|
2
|
2
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
3
|
3
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
4
|
4
03141-05168-000
スクリュ
|
03141-05168-000 |
— | ||
| replacements | |||||
|
4
|
4
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
4
|
4
03142-05169-000
Tapping screw
|
03142-05169-000 |
— | ||
|
5
|
5
87301-85760-7WS
Back assy, seat
TYPE 1 |
87301-85760-7WS |
— | ||
|
5
|
5
87301-85760-7WV
Back assy, seat
TYPE 1 |
87301-85760-7WV |
— | ||
|
5
|
5
87301-85760-9WR
Back assy, seat
TYPE 2 |
87301-85760-9WR |
— | ||
|
5
|
5
87301-85460-2EH
Back assy, seat
TYPE 2:TA:Israel |
87301-85460-2EH |
— | ||
|
6
|
6
87840-85550-000
ロックアッシ,リヤシートバック,ライト
TYPE 1 |
87840-85550-000 |
— | ||
|
6
|
6
87840-85760-000
Lock assy, seat back rh
TYPE 2 |
87840-85760-000 |
— | ||
|
7
|
7
87940-85550-000
ロックアッシ,リヤシートバック,レフト
TYPE 1 |
87940-85550-000 |
— | ||
|
7
|
7
87940-85760-000
Lock assy, seat back lh
TYPE 2 |
87940-85760-000 |
— | ||
|
8
|
8
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
9
|
9
87846-82000-281
ノブ(ブラック)
|
87846-82000-281 |
— | ||
| replacement | |||||
|
9
|
9
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK) |
87846-82000-5ES |
US $1.76 |
||
|
10
|
10
87391-85550-000
アイレット,リヤシートバック
|
87391-85550-000 |
— | ||
|
11
|
11
87373-85760-000
Protector, seat belt
|
87373-85760-000 |
— | ||
|
12
|
12
87272-85500-000
ボルト,ヒンジ
|
87272-85500-000 |
— | ||
|
13
|
13
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
13
|
13
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
14
|
14
09111-08062-000
Bolt,8x17
|
09111-08062-000 |
— | ||
| replacement | |||||
|
14
|
14
09111-08064-000 BOLT(8X21)Bolt, front |
09111-08064-000 |
from US $6.14 |
||
|
15
|
15
08321-21126-000
Lock washer
|
08321-21126-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
16
|
16
87830-85760-000
STRIKER,REAR SEAT BACK LOCK
|
87830-85760-000 |
— | ||
|
17
|
17
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
18
|
18
06321-21066-000
Lock washer
|
06321-21066-000 |
— | ||
|
19
|
19
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
20
|
20
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
21
|
21
87880-85550-000
バンド,リヤシートストッパ
|
87880-85550-000 |
— | ||
|
22
|
22
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
23
|
23
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
24
|
24
01517-08126-000
Bolt, front
2 PERSONS |
01517-08126-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0812B-000 BoltPlug, drain 2 PERSONS |
01550-0812B-000 |
from US $0.96 |
||
|
24
|
24
01550-0812A-000 BOLT2 PERSONS |
01550-0812A-000 |
from US $0.91 |
||
|
25
|
25
09250-05003-000 PLUG(OD:12)Plug 2 PERSONS |
09250-05003-000 |
from US $1.17 |
||
|
26
|
26
09250-10013-000
Plug, seat lock striker hole
2 PERSONS |
09250-10013-000 |
— | ||
| replacement | |||||
|
26
|
26
09250-10017-000 PLUG(OD:22)2 PERSONS |
09250-10017-000 |
US $17.70 |
||
