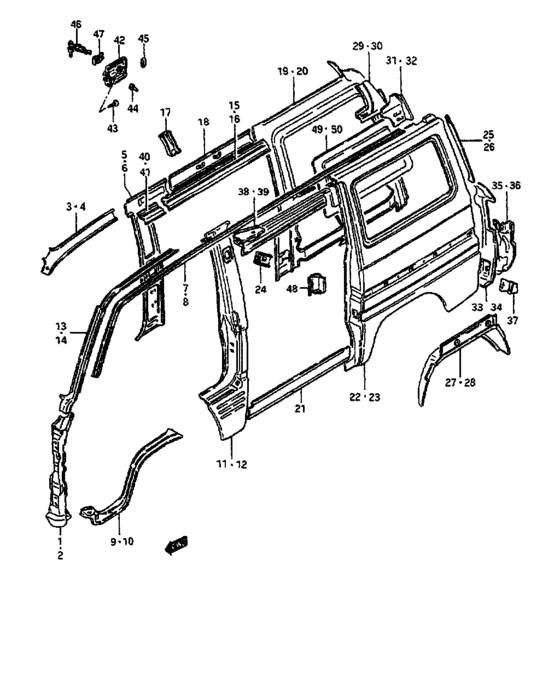

Side body panel (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63101-85200-000
Frame comp,fr pillar lower,r
LHD |
63101-85200-000 |
— | ||
|
1
|
1
63101-85500-000
フレーム,フロントピラーロア,ライト
RHD |
63101-85500-000 |
— | ||
|
2
|
2
63601-85700-000
Frame, front pillar lower lh
|
63601-85700-000 |
— | ||
|
3
|
3
62121-85000-000
Panel, roof side inner rh
TYPE 1 |
62121-85000-000 |
— | ||
| replacement | |||||
|
3
|
3
62121-85500-000 PANEL,ROOF SIDE INR,RTYPE 1 |
62121-85500-000 |
US $22.82 |
||
|
3
|
3
62121-85500-000 PANEL,ROOF SIDE INR,RTYPE 2 |
62121-85500-000 |
US $22.82 |
||
|
4
|
4
62621-85400-000
Panel, roof side inner lh
TYPE 1 |
62621-85400-000 |
— | ||
| replacement | |||||
|
4
|
4
62621-85500-000 PANEL,ROOF SIDE INR,LTYPE 1 |
62621-85500-000 |
US $22.82 |
||
|
4
|
4
62621-85450-000
パネル,ルーフサイドインナ,レフト
TYPE 2 |
62621-85450-000 |
— | ||
| replacement | |||||
|
4
|
4
62621-85500-000 PANEL,ROOF SIDE INR,LTYPE 2 |
62621-85500-000 |
US $22.82 |
||
|
4
|
4
62621-85000-000
Panel, roof side inner lh
TYPE 1:Cyprus |
62621-85000-000 |
— | ||
| replacement | |||||
|
4
|
4
62621-85500-000 PANEL,ROOF SIDE INR,LTYPE 1:Cyprus |
62621-85500-000 |
US $22.82 |
||
|
4
|
4
62621-85500-000 PANEL,ROOF SIDE INR,LTYPE 2:, Cyprus |
62621-85500-000 |
US $22.82 |
||
|
5
|
5
62210-85570-000
Panel, center pillar inner rh
FLAT FLOOR,N/E.L.R SEAT BELT |
62210-85570-000 |
— | ||
| replacement | |||||
|
5
|
5
62210-85510-000 PANEL,CTR PILLAR INNER,RFLAT FLOOR,N/E.L.R SEAT BELT |
62210-85510-000 |
US $55.20 |
||
|
5
|
5
62210-85520-000
パネル,センタピラーインナ,ライト
FLAT FLOOR,W/E.L.R SEAT BELT |
62210-85520-000 |
— | ||
| replacement | |||||
|
5
|
5
62210-85740-000 PANEL,CTR PILLAR INNER,RFLAT FLOOR,W/E.L.R SEAT BELT |
62210-85740-000 |
US $55.94 |
||
|
5
|
5
62210-85510-000 PANEL,CTR PILLAR INNER,RLOW FLOOR,2 PERSONS,4 PERSONS,N/E.L.R SEAT BELT |
62210-85510-000 |
US $55.20 |
||
|
5
|
5
62210-85540-000
パネル,センタピラーインナ,ライト
LOW FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62210-85540-000 |
— | ||
| replacement | |||||
|
5
|
5
62210-85740-000 PANEL,CTR PILLAR INNER,RLOW FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62210-85740-000 |
US $55.94 |
||
|
5
|
5
62210-85530-000
パネル,センタピラーインナ,ライト
LOW FLOOR,Cyprus:W/E.L.R SEAT BELT |
62210-85530-000 |
— | ||
|
5
|
5
62210-85581-000
パネル,センタピラーインナ,ライト
FLAT FLOOR: |
62210-85581-000 |
— | ||
|
5
|
5
62210-85740-000 PANEL,CTR PILLAR INNER,RFLAT FLOOR:New Zealand |
62210-85740-000 |
US $55.94 |
||
|
6
|
6
62710-85570-000
Panel, center pillar inner lh
FLAT FLOOR,N/E.L.R SEAT BELT |
62710-85570-000 |
— | ||
| replacement | |||||
|
6
|
6
62710-85510-000 PANEL,CTR PILLAR INNER,LFLAT FLOOR,N/E.L.R SEAT BELT |
62710-85510-000 |
US $55.20 |
||
|
6
|
6
62710-85520-000
パネル,センタピラーインナ,レフト
FLAT FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62710-85520-000 |
— | ||
| replacement | |||||
|
6
|
6
62710-85740-000 PANEL,CTR PILLAR INNER,LFLAT FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62710-85740-000 |
US $55.94 |
||
|
6
|
6
62710-85510-000 PANEL,CTR PILLAR INNER,LLOW FLOOR,2 PERSONS, 4 PERSONS,N/E.L.R SEAT BELT |
62710-85510-000 |
US $55.20 |
||
|
6
|
6
62710-85540-000
パネル,センタピラーインナ,レフト
LOW FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62710-85540-000 |
— | ||
| replacement | |||||
|
6
|
6
62710-85740-000 PANEL,CTR PILLAR INNER,LLOW FLOOR,4 PERSONS,W/E.L.R SEAT BELT |
62710-85740-000 |
US $55.94 |
||
|
6
|
6
62710-85530-000
パネル,センタピラーインナ,レフト
LOW FLOOR,Cyprus:W/E.L.R SEAT BELT |
62710-85530-000 |
— | ||
|
6
|
6
62710-85581-000
パネル,センタピラーインナ,レフト
FLAT FLOOR: |
62710-85581-000 |
— | ||
|
6
|
6
62710-85740-000 PANEL,CTR PILLAR INNER,LFLAT FLOOR:New Zealand |
62710-85740-000 |
US $55.94 |
||
|
7
|
7
63161-85500-000 RAIL,ROOF SIDE DRIP,R |
63161-85500-000 |
US $22.82 |
||
|
8
|
8
63661-85500-000 RAIL,ROOF SIDE DRIP,L |
63661-85500-000 |
US $22.82 |
||
|
9
|
9
63141-85220-000
パネル,ホイールハウスアウタ,ライト
|
63141-85220-000 |
— | ||
| replacement | |||||
|
9
|
9
63141-85000-000 PANEL,WHEEL HOUSE OUTER,R |
63141-85000-000 |
US $32.68 |
||
|
10
|
10
63641-85220-000
パネル,ホイールハウスアウタ,レフト
|
63641-85220-000 |
— | ||
| replacement | |||||
|
10
|
10
63641-85000-000 PANEL,WHEEL HOUSE OUTER,L |
63641-85000-000 |
US $32.68 |
||
|
11
|
11
63210-85500-000
パネル,センタピラーアウタ,ライト
|
63210-85500-000 |
— | ||
| replacement | |||||
|
11
|
11
63210-75D00-000
PANEL,CTR PILLAR OUTER,R
|
63210-75D00-000 |
— | ||
|
11
|
11
63210-85720-000
Panel, center pillar outer rh
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Sinagpore, Italy, Austria,,Israel, 8 |
63210-85720-000 |
— | ||
| replacement | |||||
|
11
|
11
63210-67C20-000 PANEL,CTR PILLAR OUTER,R, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Sinagpore, Italy, Austria,,Israel, 8 |
63210-67C20-000 |
US $172.96 |
||
|
12
|
12
63710-85500-000
パネル,センタピラーアウタ,レフト
|
63710-85500-000 |
— | ||
| replacement | |||||
|
12
|
12
63710-75D00-000
PANEL,CTR PILLAR OUTER,L
|
63710-75D00-000 |
— | ||
|
12
|
12
63710-85720-000
Panel, center pillar outer lh
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Sinagpore, Italy, Austria,,Israel, 8 |
63710-85720-000 |
— | ||
| replacement | |||||
|
12
|
12
63710-67C20-000 PANEL,CTR PILLAR OUTER,L, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Sinagpore, Italy, Austria,,Israel, 8 |
63710-67C20-000 |
US $172.96 |
||
|
13
|
13
63150-85450-000 PANEL,FR PILLAR UPPER,R |
63150-85450-000 |
US $45.63 |
||
|
14
|
14
63650-85450-000 PANEL,FR PILLAR UPPER,L |
63650-85450-000 |
US $45.63 |
||
|
15
|
15
63261-85500-000 MEMBER UPR RAIL SIDE,R |
63261-85500-000 |
US $25.58 |
||
|
16
|
16
63761-85500-000 MEMBER UPR RAIL SIDE,L |
63761-85500-000 |
US $25.58 |
||
|
17
|
17
63262-85510-000 BRACKET,ROOF REINFHIGH ROOF |
63262-85510-000 |
US $5.19 |
||
|
18
|
18
62231-85500-000 PANEL,ROOF SIDE INR RR |
62231-85500-000 |
US $22.82 |
||
|
19
|
19
62311-85710-000
Panel, rear quarter inner rh
TYPE 1:FLAT FLOOR:TA |
62311-85710-000 |
— | ||
|
19
|
19
62310-85720-000
Panel, rear quarter inner rh
TYPE 2:FLAT FLOOR:TA |
62310-85720-000 |
— | ||
|
19
|
19
62311-85510-000
パネル,リヤクォータインナ,ライト
TYPE 1:FLAT FLOOR:TX |
62311-85510-000 |
— | ||
| replacement | |||||
|
19
|
19
62311-85720-000
PANEL,RR QUARTER INNER,R
TYPE 1:FLAT FLOOR:TX |
62311-85720-000 |
— | ||
|
19
|
19
62310-85700-000 PANEL,RR QUARTER INNER,RTYPE 1:4 PERSONS |
62310-85700-000 |
US $222.64 |
||
|
19
|
19
62310-85500-000
パネル,リヤクォータインナ,ライト
TYPE 2:LOW FLOOR,,4 PERSONS |
62310-85500-000 |
— | ||
| replacement | |||||
|
19
|
19
62310-85700-000 PANEL,RR QUARTER INNER,RTYPE 2:LOW FLOOR,,4 PERSONS |
62310-85700-000 |
US $222.64 |
||
|
19
|
19
62311-85720-000
PANEL,RR QUARTER INNER,R
TYPE 1:6 PERSONS |
62311-85720-000 |
— | ||
|
19
|
19
62310-85730-000
Panel, rear quarter inner rh
FLAT FLOOR:, , Norway, Switzerland,,Belgium, 2, 5, Austria, Israel |
62310-85730-000 |
— | ||
|
19
|
19
62310-85760-000
Panel, rear quarter inner rh
FLAT FLOOR:,(E.L.R SEAT BELT) |
62310-85760-000 |
— | ||
|
19
|
19
62310-85710-000
Panel, rear quarter inner rh
LOW FLOOR:, Finland, Switzerland, Belgium,,Germany, Holland, Denmark, Austria, Israel |
62310-85710-000 |
— | ||
|
19
|
19
62310-85740-000
Panel, rear quarter inner rh
TYPE 1 TX:New Zealand,TYPE 2:New Zealand |
62310-85740-000 |
— | ||
|
20
|
20
62811-85710-000
Panel, rear quarter inner lh
TYPE 1:FLAT FLOOR:TA |
62811-85710-000 |
— | ||
| replacement | |||||
|
20
|
20
62811-85720-000
PANEL,RR QUARTER INNER,L
TYPE 1:FLAT FLOOR:TA |
62811-85720-000 |
— | ||
|
20
|
20
62810-85720-000
Panel, rear quarter inner lh
TYPE 2:FLAT FLOOR:TA |
62810-85720-000 |
— | ||
|
20
|
20
62811-85510-000
パネル,リヤクォータインナ,レフト
FLAT FLOOR:TX |
62811-85510-000 |
— | ||
| replacement | |||||
|
20
|
20
62811-85720-000
PANEL,RR QUARTER INNER,L
FLAT FLOOR:TX |
62811-85720-000 |
— | ||
|
20
|
20
62810-85700-000 PANEL,RR QUARTER INNER,LTYPE 1:4 PERSONS |
62810-85700-000 |
US $231.84 |
||
|
20
|
20
62810-85500-000
パネル,リヤクォータインナ,レフト
TYPE 2:4 PERSONS |
62810-85500-000 |
— | ||
| replacement | |||||
|
20
|
20
62810-85700-000 PANEL,RR QUARTER INNER,LTYPE 2:4 PERSONS |
62810-85700-000 |
US $231.84 |
||
|
20
|
20
62811-85720-000
PANEL,RR QUARTER INNER,L
TYPE 1:6 PERSONS |
62811-85720-000 |
— | ||
|
20
|
20
62810-85730-000
Panel, rear quarter inner lh
FLAT FLOOR:, ,,Norway, Switzerland, Belgium, 2, 5, Austria,,Saudi Arabia, Israel |
62810-85730-000 |
— | ||
|
20
|
20
62810-85760-000
Panel, rear quarter inner lh
FLAT FLOOR:,(E.L.R SEAT BELT) |
62810-85760-000 |
— | ||
|
20
|
20
62810-85710-000
Panel, rear quarter inner lh
LOW FLOOR:, Finland, Switzerland, Belgium,,Germany, Holland, Denmark, Austria, Saudi Arabia, Israel |
62810-85710-000 |
— | ||
|
20
|
20
62810-85740-000
Panel, rear quarter inner lh
TX:New Zealand |
62810-85740-000 |
— | ||
|
21
|
21
63281-85500-000
PANEL,SILL SIDE
|
63281-85500-000 |
— | ||
|
22
|
22
63310-85502-000
パネル,リヤクォータアウタ,ライト
<-63310-85501 |
63310-85502-000 |
— | ||
| replacement | |||||
|
22
|
22
63310-85503-000
PANEL,RR QUARTER OUTER,R
<-63310-85501 |
63310-85503-000 |
— | ||
|
23
|
23
63810-85502-000
パネル,リヤクォータアウタ,レフト
<-63810-85501 |
63810-85502-000 |
— | ||
| replacement | |||||
|
23
|
23
63810-85503-000
PANEL,RR QUARTER OUTER,L
<-63810-85501 |
63810-85503-000 |
— | ||
|
24
|
24
62313-85500-000
リンフォースメント,リヤシートバックストライカ
|
62313-85500-000 |
— | ||
|
25
|
25
63331-85500-000 PANEL,BACK PILLAR OUTER UPR,R |
63331-85500-000 |
US $11.37 |
||
|
26
|
26
63831-85500-000 PANEL,BACK PILLAR OUTER UPR,L |
63831-85500-000 |
US $11.37 |
||
|
27
|
27
63341-85510-000 PANEL,RR WHEEL HOUSE OTR,RFLAT FLOOR |
63341-85510-000 |
US $74.40 |
||
|
27
|
27
63341-85500-000
パネル,リヤホイールハウスアウタ,ライト
LOW FLOOR |
63341-85500-000 |
— | ||
| replacement | |||||
|
27
|
27
63341-85510-000 PANEL,RR WHEEL HOUSE OTR,RLOW FLOOR |
63341-85510-000 |
US $74.40 |
||
|
28
|
28
63841-85510-000 PANEL,RR WHEEL HOUSE OTR,LFLAT FLOOR |
63841-85510-000 |
US $74.40 |
||
|
28
|
28
63841-85500-000
パネル,リヤホイールハウスアウタ,レフト
LOW FLOOR |
63841-85500-000 |
— | ||
| replacement | |||||
|
28
|
28
63841-85510-000 PANEL,RR WHEEL HOUSE OTR,LLOW FLOOR |
63841-85510-000 |
US $74.40 |
||
|
29
|
29
63351-85510-000
PANEL,RR QUARTER OUTER EXT,R
FLAT FLOOR |
63351-85510-000 |
— | ||
|
30
|
30
63851-85510-000
Panel,rear quarter outer ext,l
FLAT FLOOR |
63851-85510-000 |
— | ||
|
31
|
31
63361-85510-000
REINFORCEMENT,BACK DOOR STAY,R
FLAT FLOOR |
63361-85510-000 |
— | ||
|
31
|
31
63361-85500-000 REINFORCEMENT,BACK DOOR STAY,RLOW FLOOR |
63361-85500-000 |
US $13.73 |
||
|
32
|
32
63861-85510-000
Reinf,back door stay,l
FLAT FLOOR |
63861-85510-000 |
— | ||
|
32
|
32
63861-85500-000 REINFORCEMENT,BACK DOOR STAY,LLOW FLOOR |
63861-85500-000 |
US $13.73 |
||
|
33
|
33
63370-85510-000 PANEL,BACK PILLAR OUTER,RFLAT FLOOR |
63370-85510-000 |
US $55.20 |
||
|
33
|
33
63370-85700-000
Panel, back pillar outer rh
LOW FLOOR,->63370-85500,USED WITH 63372-85700 |
63370-85700-000 |
— | ||
| replacements | |||||
|
33
|
33
63370-85500-000 PANEL,BACK PILLAR OUTER,RLOW FLOOR,->63370-85500,USED WITH 63372-85700 |
63370-85500-000 |
US $53.73 |
||
|
33
|
33
63372-85700-000
BRACKET,RR BUMPER SIDE
LOW FLOOR,->63370-85500,USED WITH 63372-85700 |
63372-85700-000 |
— | ||
|
33
|
33
63370-85500-000 PANEL,BACK PILLAR OUTER,RLOW FLOOR,DA21V-100489~,JSAEDA21V00100312~,JSAEDA21V08100041~ |
63370-85500-000 |
US $53.73 |
||
|
34
|
34
63870-85510-000 PANEL,BACK PILLAR OUTER,LFLAT FLOOR |
63870-85510-000 |
US $55.20 |
||
|
34
|
34
63870-85700-000
Panel, back pillar outer lh
LOW FLOOR,->63870-85500,USED WITH 63372-85700 |
63870-85700-000 |
— | ||
| replacements | |||||
|
34
|
34
63372-85700-000
BRACKET,RR BUMPER SIDE
LOW FLOOR,->63870-85500,USED WITH 63372-85700 |
63372-85700-000 |
— | ||
|
34
|
34
63870-85500-000 PANEL,BACK PILLAR OUTER,LLOW FLOOR,->63870-85500,USED WITH 63372-85700 |
63870-85500-000 |
US $53.73 |
||
|
34
|
34
63870-85500-000 PANEL,BACK PILLAR OUTER,LLOW FLOOR,DA21V-100489~,JSAEDA21V00100312~,JSAEDA21V08100041~ |
63870-85500-000 |
US $53.73 |
||
|
35
|
35
63390-85510-000
Reinf,back pillar,r
FLAT FLOOR |
63390-85510-000 |
— | ||
|
35
|
35
63390-85500-000 REINFORCEMENT,BACK PILLAR,RLOW FLOOR |
63390-85500-000 |
US $23.74 |
||
|
36
|
36
63890-85510-000
REINFORCEMENT,BACK PILLAR,L
FLAT FLOOR |
63890-85510-000 |
— | ||
|
36
|
36
63890-85500-000 REINFORCEMENT,BACK PILLAR,LLOW FLOOR |
63890-85500-000 |
US $23.74 |
||
|
37
|
37
63372-85700-000
BRACKET,RR BUMPER SIDE
DA21V-100489~,JSAEDA21V00100312~,JSAEDA21V08100041~ |
63372-85700-000 |
— | ||
|
38
|
38
63270-85500-000 RAIL,RR DOOR UPR,R |
63270-85500-000 |
US $51.52 |
||
|
39
|
39
63770-85500-000 RAIL,RR DOOR UPR,L |
63770-85500-000 |
US $51.15 |
||
|
40
|
40
63263-85500-000
リンフォース,サイドフロント,ライト
|
63263-85500-000 |
— | ||
| replacement | |||||
|
40
|
40
63263-85501-000 REINFORCEMENT,UPR RAIL SIDE FR |
63263-85501-000 |
US $4.75 |
||
|
41
|
41
63763-85500-000
リンフォース,サイドフロント,レフト
|
63763-85500-000 |
— | ||
| replacement | |||||
|
41
|
41
63263-85501-000 REINFORCEMENT,UPR RAIL SIDE FR |
63263-85501-000 |
US $4.75 |
||
|
42
|
42
63250-85501-000
リッド,フューエルインレット
<-63250-85500 |
63250-85501-000 |
— | ||
| replacement | |||||
|
42
|
42
63250-85502-000 LID,FUEL INLET<-63250-85500 |
63250-85502-000 |
US $21.60 |
||
|
43
|
43
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
43
|
43
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
44
|
44
09321-05005-000
Cushion rr brac
|
09321-05005-000 |
— | ||
| replacement | |||||
|
44
|
44
77192-50E00-000 CUSHION |
77192-50E00-000 |
US $2.56 |
||
|
45
|
45
09329-01003-000 CUSHION |
09329-01003-000 |
from US $2.08 |
||
|
46
|
46
89300-85811-000 CYLINDER SET,FUEL LID LOCK<-89300-85810 |
89300-85811-000 |
US $34.41 |
||
|
47
|
47
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
48
|
48
63336-85740-000
Bracket, seat belt side upper
, Finland, Norway, Switzerland, Belgium, Germany,,Holland, Denmark, New Zealand, Sinagpore, Austria, Israel |
63336-85740-000 |
— | ||
|
49
|
49
63328-85760-000 COVER,RR QUARTER WINDOW,RBLIND VAN |
63328-85760-000 |
US $52.45 |
||
|
50
|
50
63828-85760-000 COVER,RR QUARTER WINDOW,LBLIND VAN |
63828-85760-000 |
US $52.45 |
||
