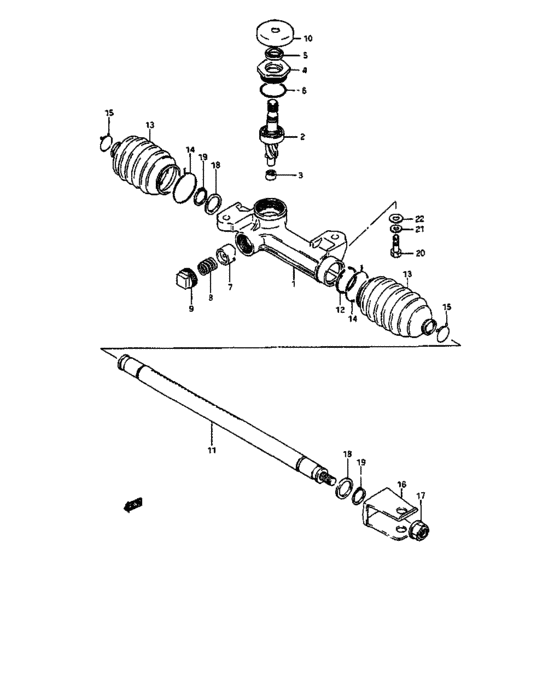

Steering gear (RHD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-85001-000 CASE,STRG GEAR<-48510-85000 |
48510-85001-000 |
US $140.94 |
||
|
2
|
2
48550-85000-000
PINION,STEERING
|
48550-85000-000 |
— | ||
|
3
|
3
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low |
09263-10014-000 |
from US $8.66 |
||
|
4
|
4
48562-82000-000
Plug, pinion bearing
|
48562-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
48562-82K00-000 PLUG,PINION BEARING |
48562-82K00-000 |
US $11.20 |
||
|
5
|
5
09283-15002-000 SEAL,OIL(15X25X5) |
09283-15002-000 |
from US $2 |
||
|
6
|
6
09280-34003-000 O RING(D:2,ID:34.1) |
09280-34003-000 |
US $1.76 |
||
|
7
|
7
48534-78000-000
プランジャ,ステアリングラック
|
48534-78000-000 |
— | ||
| replacement | |||||
|
7
|
7
48534-50F00-000 PLUNGER,STEERING RACK |
48534-50F00-000 |
US $43.20 |
||
|
8
|
8
09440-19011-000 SPRING |
09440-19011-000 |
from US $1.37 |
||
|
9
|
9
48535-85000-000 SCREW,RACK DAMPER |
48535-85000-000 |
US $4.23 |
||
|
10
|
10
48581-85000-000
Cap, steering pinion
TYPE 1 |
48581-85000-000 |
— | ||
| replacement | |||||
|
10
|
10
48581-85002-000
CAP,STRG PINION
TYPE 1 |
48581-85002-000 |
— | ||
|
10
|
10
48581-85001-000
キャップ,ステアリングピニオン
TYPE 2 |
48581-85001-000 |
— | ||
| replacement | |||||
|
10
|
10
48581-85002-000
CAP,STRG PINION
TYPE 2 |
48581-85002-000 |
— | ||
|
11
|
11
48531-85000-000
RACK,STEERING
|
48531-85000-000 |
— | ||
|
12
|
12
09381-32001-000
CIRCLIP
|
09381-32001-000 |
— | ||
|
13
|
13
48571-85000-000
Boot, steering rack
|
48571-85000-000 |
— | ||
| replacement | |||||
|
13
|
13
48571-85001-000 BOOT,STEERING RACK |
48571-85001-000 |
US $16.80 |
||
|
14
|
14
09460-01024-000
ワイヤ
|
09460-01024-000 |
— | ||
| replacement | |||||
|
14
|
14
09460-01023-000 WIRE |
09460-01023-000 |
US $2.24 |
||
|
15
|
15
09401-20403-000
クリップ
|
09401-20403-000 |
— | ||
| replacement | |||||
|
15
|
15
09401-20403-XC0 CLIP |
09401-20403-XC0 |
US $1.92 |
||
|
16
|
16
48591-85000-000
YOKE,STEERING RACK
|
48591-85000-000 |
— | ||
|
17
|
17
09159-12017-000 NUT |
09159-12017-000 |
US $1.92 |
||
|
18
|
18
09160-20059-000
WASHER(20X30X3.2)
|
09160-20059-000 |
— | ||
|
19
|
19
09380-20013-000
CIRCLIP
|
09380-20013-000 |
— | ||
|
20
|
20
09100-10231-000
ボルト,10X35
|
09100-10231-000 |
— | ||
| replacement | |||||
|
20
|
20
09118-10047-000 BOLT(10X35) |
09118-10047-000 |
US $22.80 |
||
|
21
|
21
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
22
|
22
08322-21103-000 ワッシャ |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
22
|
22
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
22
|
22
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
