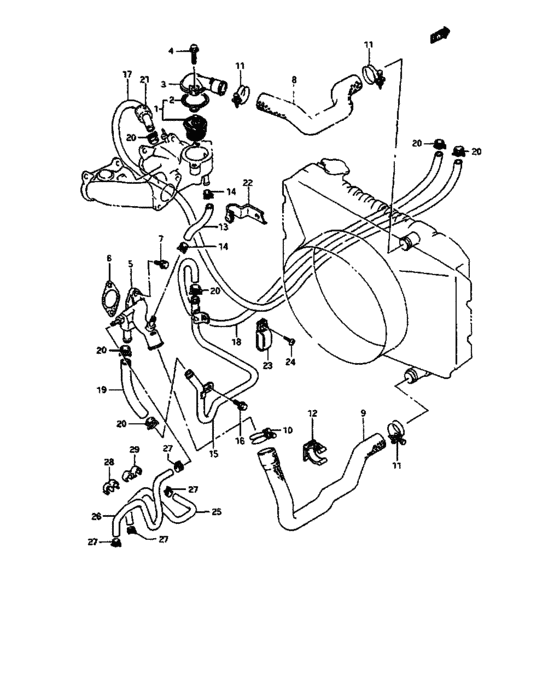

Water hose (WATER HOSE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-83821-000
Thermostat, water
|
17600-83821-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-85831-000 THERMOSTAT SET,WATER |
17600-85831-000 |
US $24.80 |
||
|
1
|
1
17600-83831-000
Thermostat set, water
Finland, Norway |
17600-83831-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-83851-H17 THERMOSTAT SET,WATERFinland, Norway |
17600-83851-H17 |
US $24.66 |
||
|
1
|
1
17600-83841-000
Thermostat set, water
OPT |
17600-83841-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-85841-000 THERMOSTAT SET,WATEROPT |
17600-85841-000 |
US $24.29 |
||
|
2
|
2
17569-80000-000
Joint thermostat
|
17569-80000-000 |
— | ||
| replacement | |||||
|
2
|
2
17569-60A10-000 GASKET,THERMO CAP |
17569-60A10-000 |
US $4.32 |
||
|
3
|
3
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
from US $11.10 |
||
|
4
|
4
01537-08303-000
New Genuine Part
|
01537-08303-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
17550-85200-000
Pipe, water inlet
W/HEATER |
17550-85200-000 |
— | ||
| replacement | |||||
|
5
|
5
17550-77X50-000
PIPE,WATER INLET
W/HEATER |
17550-77X50-000 |
— | ||
|
5
|
5
17550-77300-000
Pipe, water inlet
N/HEATER |
17550-77300-000 |
— | ||
| replacement | |||||
|
5
|
5
17550-77X50-000
PIPE,WATER INLET
N/HEATER |
17550-77X50-000 |
— | ||
|
5
|
5
17550-85210-000
PIPE,WATER INLET
TYPE 2:Switzerland, Austria |
17550-85210-000 |
— | ||
|
6
|
6
17559-73000-000
ガスケット,ウォータインレット
|
17559-73000-000 |
— | ||
| replacement | |||||
|
6
|
6
17559-73010-000 GASKET,WATER INLET PIPE |
17559-73010-000 |
from US $1.52 |
||
|
7
|
7
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
8
|
8
17841-85200-000
Hose, radiator inlet
|
17841-85200-000 |
— | ||
| replacement | |||||
|
8
|
8
17841-85202-000 HOSE,RADIATOR INLET |
17841-85202-000 |
US $34.40 |
||
|
9
|
9
17851-85200-000
Hose, radiator outlet
|
17851-85200-000 |
— | ||
| replacement | |||||
|
9
|
9
17851-85202-000
HOSE,RADIATOR OUTLET
|
17851-85202-000 |
— | ||
|
10
|
10
09400-40311-000 CLAMP |
09400-40311-000 |
from US $4.49 |
||
|
11
|
11
09400-36311-000
クランプ
|
09400-36311-000 |
— | ||
| replacement | |||||
|
11
|
11
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
12
|
12
09403-32301-000 HOLDER |
09403-32301-000 |
US $1.28 |
||
|
13
|
13
17859-79102-000
Hose, water bypass
|
17859-79102-000 |
— | ||
| replacement | |||||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) |
09352-70121-600 |
from US $4.84 |
||
|
14
|
14
09401-11408-000
Clip
|
09401-11408-000 |
— | ||
| replacements | |||||
|
14
|
14
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
|
15
|
15
17880-85200-000
PIPE,HEATER OUTLET
W/HEATER |
17880-85200-000 |
— | ||
|
16
|
16
01517-08123-000
ボルト
W/HEATER |
01517-08123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0812B-000 BoltPlug, drain W/HEATER |
01550-0812B-000 |
from US $0.96 |
||
|
16
|
16
01550-0812A-000 BOLTW/HEATER |
01550-0812A-000 |
from US $0.91 |
||
|
17
|
17
17874-72070-000 HOSELHD, W/HEATER,L:3000->1370 |
17874-72070-000 |
US $100.80 |
||
|
18
|
18
17874-72070-000 HOSELHD, W/HEATER,L:3000->1150 |
17874-72070-000 |
US $100.80 |
||
|
19
|
19
17872-72070-000 HOSE,HEATERL:1000>440 W/HEATER,L:1000->110 |
17872-72070-000 |
US $31.20 |
||
|
20
|
20
09401-18401-000
Clamp
W/HEATER |
09401-18401-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
21
|
21
09320-18002-000
クッション,18X30X25
W/HEATER |
09320-18002-000 |
— | ||
| replacements | |||||
|
21
|
21
15868-67B00-000 PROTECTOR,FUEL HOSEW/HEATER |
15868-67B00-000 |
US $2.56 |
||
|
21
|
21
17885-60C00-000
クッション,ヒータホース
W/HEATER |
17885-60C00-000 |
— | ||
|
22
|
22
17879-85200-000
クランプ,ヒータホース
W/HEATER |
17879-85200-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-08420-000 CLAMP(L:120 T:1.0)W/HEATER |
09404-08420-000 |
from US $2.08 |
||
|
22
|
22
09404-08405-000
Clamp, drain tube
W/HEATER |
09404-08405-000 |
— | ||
|
23
|
23
09403-19401-000
クランプ
W/HEATER |
09403-19401-000 |
— | ||
| replacement | |||||
|
23
|
23
09403-19406-000 CLAMPW/HEATER |
09403-19406-000 |
US $32.40 |
||
|
24
|
24
03141-06123-000
Screw 6x12
W/HEATER |
03141-06123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0612A-000 SCREWW/HEATER |
03141-0612A-000 |
US $0.76 |
||
|
25
|
25
13194-85200-000
Hose,intake to egr
TYPE 2:Switzerland, Austria |
13194-85200-000 |
— | ||
|
26
|
26
13195-85200-000
Hose,egr to water inlet
TYPE 2:Switzerland, Austria |
13195-85200-000 |
— | ||
|
27
|
27
09401-10409-000 CLIPTYPE 2:Switzerland, Austria |
09401-10409-000 |
from US $1.12 |
||
|
28
|
28
09408-00100-000 CLIPTYPE 2:Switzerland, Austria |
09408-00100-000 |
US $19.50 |
||
|
29
|
29
09408-00043-000 CLAMPHolder, fuse case TYPE 2:Switzerland, Austria |
09408-00043-000 |
US $9.60 |
||
