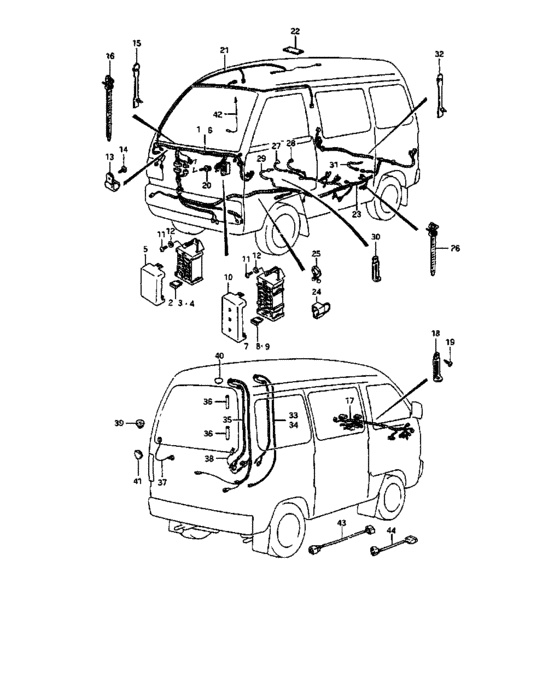

Wiring harness (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-85120-000
ハーネスアッシ,ワイヤリング,NO.1
|
36610-85120-000 |
— | ||
|
1
|
1
36610-85122-000
ハーネスアッシ,ワイヤリング,NO.1
DA21V-102138~,JSAEDA21V00102482~,JSAEDA21V0B100158~,<-36610-85121 |
36610-85122-000 |
— | ||
|
1
|
1
36610-85112-000
Harness assy, wiring no.1
TYPE 2 |
36610-85112-000 |
— | ||
|
1
|
1
36610-85111-000
Harness assy, wiring no.1
Saudi Arabia, <-36610-85110 |
36610-85111-000 |
— | ||
|
2
|
2
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09481-20101-000 FUSE(20A)EXC/Saudi Arabia,DA21V-101799~ |
09481-20101-000 |
from US $3.35 |
||
|
5
|
5
36717-80021-000
Cover,fuse box
|
36717-80021-000 |
— | ||
|
5
|
5
36717-85000-000
カバー,フューズボックス
EXC/Saudi Arabia,DA21V-101799~ |
36717-85000-000 |
— | ||
| replacement | |||||
|
5
|
5
36717-85001-000 COVER,FUSE BOXEXC/Saudi Arabia,DA21V-101799~ |
36717-85001-000 |
US $6.24 |
||
|
6
|
6
36610-85060-000
Harness assy, wiring no.1
, , Belgium, 6, Italy, Israel, 8 |
36610-85060-000 |
— | ||
|
6
|
6
36610-85250-000
Harness assy, wiring no.1
:JSAEDA21V00105198~ |
36610-85250-000 |
— | ||
|
6
|
6
36610-85141-000
Harness assy, wiring no.1
Finland |
36610-85141-000 |
— | ||
|
6
|
6
36610-85170-000
Harness assy, wiring no.1
Norway |
36610-85170-000 |
— | ||
|
6
|
6
36610-85190-000
Harness assy, wiring no.1
TYPE 1:Switzerland(W/CATALYZER) |
36610-85190-000 |
— | ||
|
6
|
6
36610-85310-000
Harness assy, wiring no.1
TYPE 2:Switzerland, Austria |
36610-85310-000 |
— | ||
|
7
|
7
09481-05101-000 FUSE(5A), , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
09481-05101-000 |
from US $2.82 |
||
|
8
|
8
09481-10101-000 FUSE(10A), , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
09481-10101-000 |
from US $1.28 |
||
|
9
|
9
09481-15101-000 FUSE(15A)Fuse (15a) , , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
09481-15101-000 |
from US $1.28 |
||
|
10
|
10
36717-80D11-000
Cover, fuse box
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
36717-80D11-000 |
— | ||
|
11
|
11
02112-05166-000
Screw
|
02112-05166-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
11
|
11
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
12
|
12
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
12
|
12
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
12
|
12
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
13
|
13
09403-23402-000 CLAMPLHD |
09403-23402-000 |
US $23.90 |
||
|
14
|
14
03141-06126-000
スクリュ
LHD |
03141-06126-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0612A-000 SCREWLHD |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
09407-14408-000 CLAMP(L:120) |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
16
|
16
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
17
|
17
36620-85030-000
Harness assy, wiring no.2
LHD |
36620-85030-000 |
— | ||
|
17
|
17
36620-85010-000
ハーネスアッシ,ワイヤリング,NO.2
TYPE 1:RHD |
36620-85010-000 |
— | ||
|
17
|
17
36620-85050-000
Harness assy, wiring no.2
TYPE 2:RHD |
36620-85050-000 |
— | ||
|
17
|
17
36620-85080-000
Harness assy, wiring no.2
Switzerland, Germany, Holland, Austria:,W/CATALYZER |
36620-85080-000 |
— | ||
|
18
|
18
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
18
|
18
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
18
|
18
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
18
|
18
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
18
|
18
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
19
|
19
03541-05166-000
スクリュ
|
03541-05166-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
20
|
20
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
20
|
20
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
36630-85550-000
Harness assy, wiring no.3
LHD:HIGH ROOF |
36630-85550-000 |
— | ||
|
21
|
21
36630-85541-000
Harness assy, wiring no.3
RHD:HIGH ROOF,<-36630-85540 |
36630-85541-000 |
— | ||
|
21
|
21
36630-85542-000
ハーネスアッシ,ワイヤリング,NO.3
RHD:HIGH ROOF,DA21V-106760~ |
36630-85542-000 |
— | ||
|
21
|
21
36630-85520-000
Harness assy, wiring no.3
LHD:STD ROOF |
36630-85520-000 |
— | ||
|
21
|
21
36630-85530-000
Harness assy, wiring no.3
RHD:STD ROOF |
36630-85530-000 |
— | ||
|
21
|
21
36630-85510-000
Harness assy, wiring no.3
TYPE 1:STD ROOF(New Zealand) |
36630-85510-000 |
— | ||
|
21
|
21
36630-85560-000
Harness assy, wiring no.3
LHD:SUN ROOF |
36630-85560-000 |
— | ||
|
21
|
21
36630-85511-000
ハーネスアッシ,ワイヤリング,NO.3
RHD:SUN ROOF,DA21V-106760~ |
36630-85511-000 |
— | ||
|
22
|
22
36930-82000-000
カバー
SUN ROOF |
36930-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
36930-82010-000 COVER,HARNESSCover, roof wire SUN ROOF |
36930-82010-000 |
from US $1.73 |
||
|
23
|
23
36650-85031-000
ハーネスアッシ,ワイヤリング,NO.5
<-36650-85030 |
36650-85031-000 |
— | ||
|
23
|
23
36650-85032-000
ハーネスアッシ,ワイヤリング,NO.5
DA21V-102138~,JSAEDA21V00102482~,JSAEDA21V0B100158~ |
36650-85032-000 |
— | ||
|
23
|
23
36650-85112-000
Harness assy, wiring no.5
TYPE 2 |
36650-85112-000 |
— | ||
|
23
|
23
36650-85061-000
Harness assy, wiring no.5
, , Finland, Norway, Belgium, 6,,Italy, Israel, 8,<-36650-85060 |
36650-85061-000 |
— | ||
|
23
|
23
36650-85140-000
Harness assy, wiring no.5
TYPE 1:Switzerland(W/CATALYZER) |
36650-85140-000 |
— | ||
|
23
|
23
36650-85240-000
Harness assy, wiring no.5
TYPE 2:Switzerland, Austria |
36650-85240-000 |
— | ||
|
23
|
23
36650-85141-000
Harness assy, wiring no.5
Germany, Holland:W/CATALYZER,<-36650-85140 |
36650-85141-000 |
— | ||
|
23
|
23
36650-85111-000
Harness assy, wiring no.5
Saudi Arabia, <-36650-85110 |
36650-85111-000 |
— | ||
|
24
|
24
36830-85010-000
Wire, joint
DA21V-102138~,JSAEDA21V00102482~,JSAEDA21V0B100158~ |
36830-85010-000 |
— | ||
|
25
|
25
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) DA21V-102138~,JSAEDA21V00102482~,JSAEDA21V0B100158~ |
09408-00012-000 |
from US $3.37 |
||
|
26
|
26
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
26
|
26
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
27
|
27
36846-85000-000
ワイヤ,ジェネレータ
|
36846-85000-000 |
— | ||
|
28
|
28
36748-85000-000
ワイヤ,ジェネレータ
|
36748-85000-000 |
— | ||
| replacement | |||||
|
28
|
28
36748-60C12-000 WIRE,GENERATOR |
36748-60C12-000 |
US $13.73 |
||
|
29
|
29
36890-85030-000
Wire, oil pressure switch
|
36890-85030-000 |
— | ||
| replacement | |||||
|
29
|
29
36890-79210-000 WIRE,OIL PRESS SW |
36890-79210-000 |
US $2.58 |
||
|
30
|
30
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
30
|
30
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
30
|
30
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
30
|
30
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
31
|
31
34823-85500-000
ワイヤ,フューエルレベルゲージ
|
34823-85500-000 |
— | ||
|
32
|
32
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
33
|
33
36840-85500-000
ワイヤ,ライセンスランプ デフォッガ ナシ
FLAT FLOOR |
36840-85500-000 |
— | ||
|
33
|
33
36840-85520-000
Wire,license lamp
FLAT FLOOR:Saudi Arabia |
36840-85520-000 |
— | ||
|
33
|
33
36840-85510-000
ワイヤ,ライセンスランプ デフォッガ ナシ
LOW FLOOR |
36840-85510-000 |
— | ||
| replacement | |||||
|
33
|
33
36840-85530-000 WIRE,LICENSE LAMPLOW FLOOR |
36840-85530-000 |
US $20.98 |
||
|
33
|
33
36840-85530-000 WIRE,LICENSE LAMPLOW FLOOR:Saudi Arabia |
36840-85530-000 |
US $20.98 |
||
|
34
|
34
36840-85520-000
Wire,license lamp
FLAT FLOOR,N/REAR WIPER,W/REAR DEFOGGER |
36840-85520-000 |
— | ||
|
34
|
34
36840-85530-000 WIRE,LICENSE LAMPLOW FLOOR,N/REAR WIPER,W/REAR DEFOGGER |
36840-85530-000 |
US $20.98 |
||
|
35
|
35
36640-85500-000 HARNESS ASSY,RR WIPERFLAT FLOOR,W/REAR WIPER,W/REAR DEFOGGER |
36640-85500-000 |
US $47.47 |
||
|
35
|
35
36640-85511-000
ハーネスアッシ,リヤワイパ
LOW FLOOR,W/REAR WIPER,W/REAR DEFOGGER,<-36640-85510 |
36640-85511-000 |
— | ||
|
36
|
36
09351-80902-070
ホース
<-09344-08002 |
09351-80902-070 |
— | ||
| replacement | |||||
|
36
|
36
09351-80902-600 PROTECTOR(8X9X600)<-09344-08002 |
09351-80902-600 |
US $3.28 |
||
|
37
|
37
36891-85000-000
ワイヤ,リヤデフォッガグランド
W/REAR DEFOGGER |
36891-85000-000 |
— | ||
|
38
|
38
36892-85010-000
ワイヤ,リヤデフォッガプラス
W/REAR DEFOGGER |
36892-85010-000 |
— | ||
| replacement | |||||
|
38
|
38
36890-70C00-000 WIRE,RR DF LEADW/REAR DEFOGGER |
36890-70C00-000 |
US $3.28 |
||
|
39
|
39
09308-03005-000 GROMMETW/REAR DEFOGGER |
09308-03005-000 |
US $12.90 |
||
|
40
|
40
67627-70000-000
シール,ホール
N/REAR DEFOGGER |
67627-70000-000 |
— | ||
| replacement | |||||
|
40
|
40
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/REAR DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
|
41
|
41
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
42
|
42
36850-85000-000
ワイヤ,フロントドアスイッチ
New Zealand |
36850-85000-000 |
— | ||
| replacement | |||||
|
42
|
42
36850-79500-000 WIRE,BACK DR SWITCHNew Zealand |
36850-79500-000 |
US $2.56 |
||
|
43
|
43
36863-85500-000
WIRE,WATER TEMP SW
Switzerland, Germany, Holland, Austria:,W/CATALYZER |
36863-85500-000 |
— | ||
|
44
|
44
36740-85500-000
FUSE ASSY,SLIDING ROOF
Switzerland, Germany:W/CATALYZER,SUN ROOF |
36740-85500-000 |
— | ||
