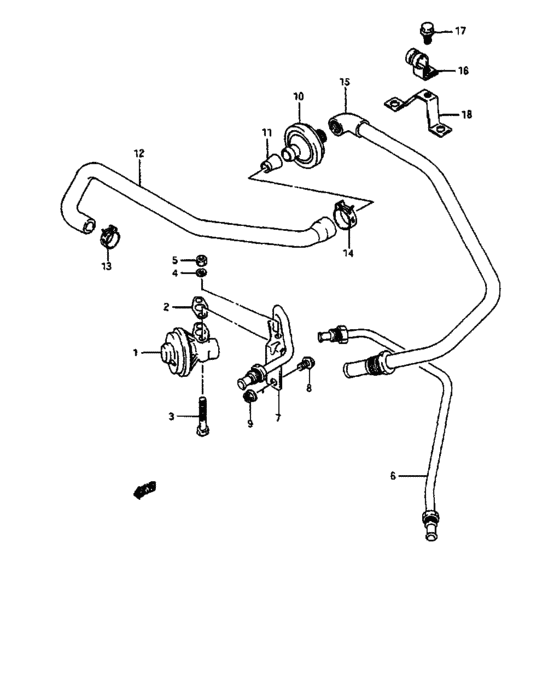

Auxiliary air (TYPE 1:Switzerland, Germany, TYPE 2:Germany, Holland,W/CATALYZER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-85200-000
Valve, egr
Switzerland |
18111-85200-000 |
— | ||
| replacement | |||||
|
1
|
1
18520-60F01-000 VALVE,EGRSwitzerland |
18520-60F01-000 |
US $154.56 |
||
|
1
|
1
18111-85210-000
Valve,egr
Germany, Holland |
18111-85210-000 |
— | ||
|
2
|
2
18529-73030-000
ガスケット,EGRバルブ
|
18529-73030-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-85200-000 GASKET,EGR VALVE |
18529-85200-000 |
US $1.60 |
||
|
3
|
3
01907-06553-000
ボルト
|
01907-06553-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0655B-000 Bolt |
01500-0655B-000 |
from US $4.28 |
||
|
4
|
4
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
18530-85000-000
パイプ,EGRエキゾースト
|
18530-85000-000 |
— | ||
| replacement | |||||
|
6
|
6
18530-85010-000
Pipe,egr exhaust
|
18530-85010-000 |
— | ||
|
7
|
7
18540-85201-000
Pipe, egr intake
<-18540-85200 |
18540-85201-000 |
— | ||
| replacement | |||||
|
7
|
7
18540-85220-000
PIPE,EGR INTAKE
<-18540-85200 |
18540-85220-000 |
— | ||
|
8
|
8
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
9
|
9
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
18450-81001-000
Valve, auxiliary air
|
18450-81001-000 |
— | ||
| replacement | |||||
|
10
|
10
18450-84000-000
VALVE,2ND AIR
|
18450-84000-000 |
— | ||
|
11
|
11
18328-85200-000
Jet, auxiliary air hose
|
18328-85200-000 |
— | ||
|
12
|
12
18329-85200-000
Hose, auxiliary air
|
18329-85200-000 |
— | ||
|
13
|
13
09401-21401-000
(ca) clip
|
09401-21401-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $5.56 |
||
|
14
|
14
09401-26401-000
Clip
|
09401-26401-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-26408-000 CLIP |
09401-26408-000 |
US $1.68 |
||
|
15
|
15
18320-85200-000
Pipe, auxiliary air
|
18320-85200-000 |
— | ||
|
16
|
16
18391-85200-000
Clamp, auxiliary air pipe
|
18391-85200-000 |
— | ||
|
17
|
17
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
17
|
17
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
18
|
18
18392-85200-000
Bracket, auxiliary air pipe
|
18392-85200-000 |
— | ||
