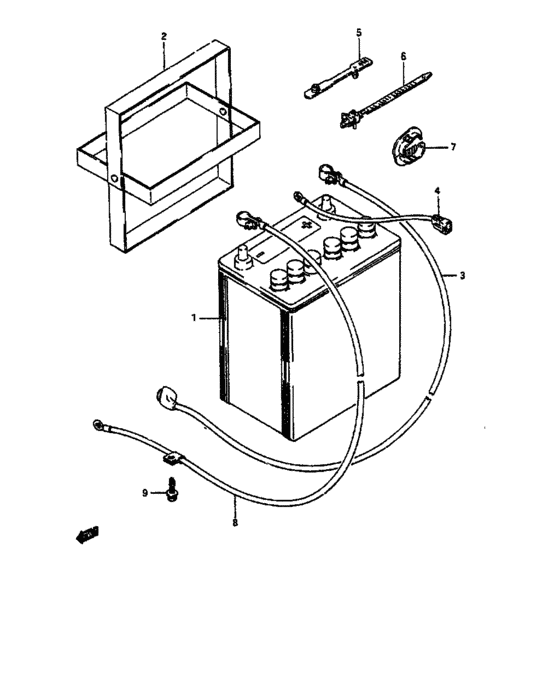

Battery (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-80020-000
バッテリ,28B19RーMF,12V24AH/5HR,YB
|
33610-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
|
33610-750V1-000 |
— | ||
|
1
|
1
33610-80011-000
Battery
Finland, Norway, China |
33610-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60A11-000
バッテリ,55B24R(S)ーMF,12V36AH,YB
Finland, Norway, China |
33610-60A11-000 |
— | ||
|
2
|
2
33721-89030-000
Strap assy,battery han
Finland, Norway, China |
33721-89030-000 |
— | ||
|
3
|
3
33810-85541-000
ケーブル,スターティングモータ
FLAT FLOOR |
33810-85541-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-75D10-000 CABLE,STARTING MOTORFLAT FLOOR |
33810-75D10-000 |
US $58.51 |
||
|
3
|
3
33810-85561-000
Cable, starting motor
FLAT FLOOR:Norway, China |
33810-85561-000 |
— | ||
|
3
|
3
33810-85531-000
ケーブル,スターティングモータ
LOW FLOOR |
33810-85531-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-75D00-000 CABLE,STARTING MOTORLOW FLOOR |
33810-75D00-000 |
US $42.32 |
||
|
3
|
3
33810-85600-000
Cable, starting motor
LOW FLOOR:Finland, China |
33810-85600-000 |
— | ||
|
4
|
4
36740-85000-000 FUSE ASSY,MAIN |
36740-85000-000 |
from US $6.21 |
||
|
5
|
5
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
5
|
5
09407-05405-000
Clamp (l:103)
China |
09407-05405-000 |
— | ||
| replacement | |||||
|
5
|
5
09407-05406-000 CLAMP(L:118)China |
09407-05406-000 |
from US $1.06 |
||
|
6
|
6
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
6
|
6
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
7
|
7
09308-26001-000 GROMMET |
09308-26001-000 |
US $2.13 |
||
|
8
|
8
33850-85530-000
ケーブル,バッテリグランド
FLAT FLOOR |
33850-85530-000 |
— | ||
| replacement | |||||
|
8
|
8
33850-76D00-000
CABLE,BATTERY GND
FLAT FLOOR |
33850-76D00-000 |
— | ||
|
8
|
8
33850-85560-000
Cable, battery ground
FLAT FLOOR:Norway, China |
33850-85560-000 |
— | ||
|
8
|
8
33850-85520-000
ケーブル,バッテリグランド
LOW FLOOR |
33850-85520-000 |
— | ||
| replacement | |||||
|
8
|
8
33850-75D10-000
Cable,btry gnd
LOW FLOOR |
33850-75D10-000 |
— | ||
|
8
|
8
33850-85600-000
Cable, battery ground
LOW FLOOR:Finland, China |
33850-85600-000 |
— | ||
|
9
|
9
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
9
|
9
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
