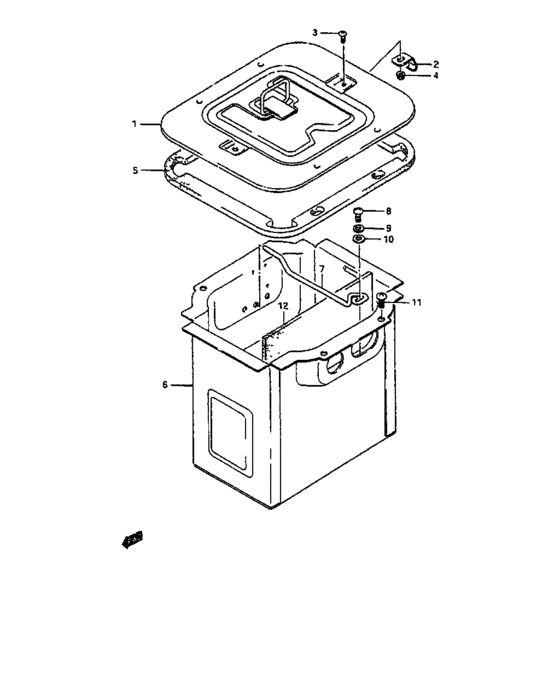

Battery box (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66430-79500-000 LID,BATTERY BOX |
66430-79500-000 |
US $40.80 |
||
|
2
|
2
65647-68000-000 SPRING,SERVICE LID |
65647-68000-000 |
US $1.60 |
||
|
3
|
3
02142-05124-000
Screw
|
02142-05124-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
4
|
4
08316-26056-000
Nut, cam lever
|
08316-26056-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
5
|
5
66521-79500-000
ダストシール,リッド
|
66521-79500-000 |
— | ||
| replacement | |||||
|
5
|
5
66522-75D00-000 DUST SEAL,BATTERY BOX |
66522-75D00-000 |
US $8.32 |
||
|
6
|
6
66440-79502-000
PANEL,BATTERY BOX
|
66440-79502-000 |
— | ||
|
7
|
7
66461-79501-000 HOLDER,BATTER |
66461-79501-000 |
US $8.16 |
||
|
8
|
8
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
9
|
9
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
10
|
10
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
11
|
11
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
12
|
12
72515-85500-000
INSULATOR,BATTERY BOX
|
72515-85500-000 |
— | ||
