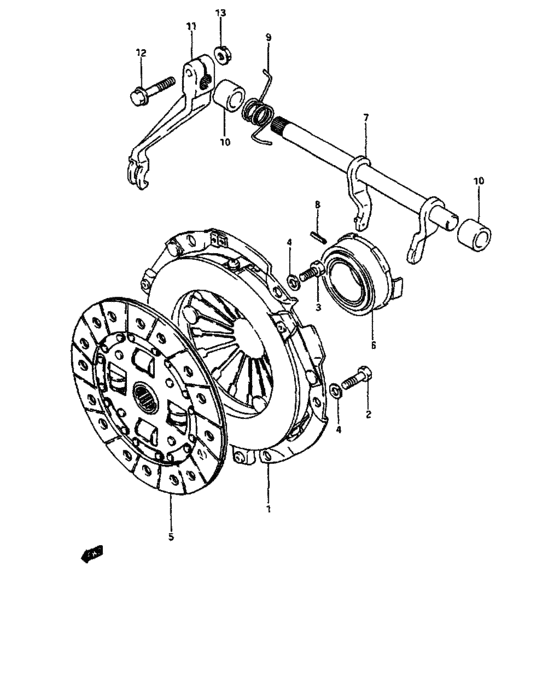

Clutch (CLUTCH) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-85200-000 COVER ASSY,CLUTCH<-22100-75122 |
22100-85200-000 |
US $166.40 |
||
|
2
|
2
09111-08035-000 BOLT(8X20) |
09111-08035-000 |
US $1.44 |
||
|
3
|
3
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
3
|
3
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
4
|
4
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
5
|
5
22400-85200-000
Disc, clutch
<-22400-80020 |
22400-85200-000 |
— | ||
| replacement | |||||
|
5
|
5
22400-85141-000 DISC,CLUTCH<-22400-80020 |
22400-85141-000 |
US $84.80 |
||
|
6
|
6
09269-33002-000 BEARING |
09269-33002-000 |
US $148 |
||
|
7
|
7
23260-85202-000
Shaft, clutch release
<-23260-85201 |
23260-85202-000 |
— | ||
| replacement | |||||
|
7
|
7
23260-85203-000
SHAFT,CLUTCH RELEASE
<-23260-85201 |
23260-85203-000 |
— | ||
|
8
|
8
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
9
|
9
09448-20007-000
SPRING
|
09448-20007-000 |
— | ||
|
10
|
10
09300-14012-000
Bonille axe
|
09300-14012-000 |
— | ||
| replacement | |||||
|
10
|
10
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
11
|
11
23266-85001-000
アーム,クラッチレリーズ
|
23266-85001-000 |
— | ||
| replacement | |||||
|
11
|
11
23266-85002-000 ARM,CLUTCH RELEASE |
23266-85002-000 |
from US $20.79 |
||
|
12
|
12
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
12
|
12
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
