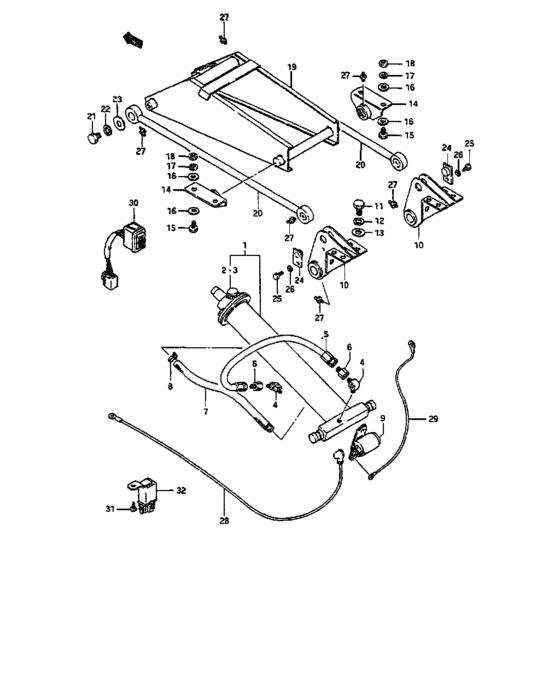

Cylinder (DUMP TRUCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97100-79341-000
Cylinder assy
|
97100-79341-000 |
— | ||
|
2
|
2
97100-79810-000
Seal set, cylinder
|
97100-79810-000 |
— | ||
|
3
|
3
97131-79340-000
Elbow, cylinder
|
97131-79340-000 |
— | ||
|
4
|
4
97131-79340-000
Elbow, cylinder
|
97131-79340-000 |
— | ||
|
5
|
5
97110-79340-000
Hose, cylinder high
|
97110-79340-000 |
— | ||
|
6
|
6
97132-79340-000
Nipple, hose
|
97132-79340-000 |
— | ||
|
7
|
7
97120-79340-000
Hose, cylinder low
|
97120-79340-000 |
— | ||
|
8
|
8
09400-16301-000
Reservoir hose
|
09400-16301-000 |
— | ||
| replacement | |||||
|
8
|
8
09400-16304-000 CLAMP |
09400-16304-000 |
from US $4.96 |
||
|
9
|
9
97310-79340-000
STARTER RELAY
|
97310-79340-000 |
— | ||
|
10
|
10
97410-79340-000
Bracket, cylinder
|
97410-79340-000 |
— | ||
| replacement | |||||
|
10
|
10
97641-8595V-000
ブッシュ,リヤボディNO.1
|
97641-8595V-000 |
— | ||
|
11
|
11
01107-10206-000
Bolt
|
01107-10206-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
12
|
12
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
12
|
12
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
13
|
13
08322-11106-000
Washer 10.5x18x1.6
|
08322-11106-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
13
|
13
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
14
|
14
97420-79340-000
Bracket, body mount
|
97420-79340-000 |
— | ||
| replacements | |||||
|
14
|
14
97420-72D50-000
ブラケット,ボディマウント
|
97420-72D50-000 |
— | ||
|
14
|
14
97641-8595V-000
ブッシュ,リヤボディNO.1
|
97641-8595V-000 |
— | ||
|
15
|
15
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
16
|
16
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
16
|
16
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
17
|
17
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
18
|
18
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
18
|
18
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
18
|
18
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
|
19
|
19
97730-85950-000
Triple arm assy
|
97730-85950-000 |
— | ||
| replacement | |||||
|
19
|
19
97641-8595V-000
ブッシュ,リヤボディNO.1
|
97641-8595V-000 |
— | ||
|
20
|
20
97430-79340-000
Connrod, triple arm
|
97430-79340-000 |
— | ||
| replacement | |||||
|
20
|
20
97641-8595V-000
ブッシュ,リヤボディNO.1
|
97641-8595V-000 |
— | ||
|
21
|
21
01107-10256-000
Bolt 10x25 upper
|
01107-10256-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
22
|
22
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
22
|
22
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
23
|
23
97643-67202-000
Washer
|
97643-67202-000 |
— | ||
| replacement | |||||
|
23
|
23
97643-72D00-000
Washerxx
|
97643-72D00-000 |
— | ||
|
24
|
24
97451-79340-000
Pin, tension
|
97451-79340-000 |
— | ||
|
25
|
25
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
26
|
26
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
27
|
27
97641-67202-000 NIPPLE,GREASE |
97641-67202-000 |
US $8.02 |
||
|
28
|
28
97825-79340-000
Wire, battery lead
|
97825-79340-000 |
— | ||
|
29
|
29
97826-79340-000
Wire, motor earth
|
97826-79340-000 |
— | ||
|
30
|
30
97810-85971-5CZ
Switch, damp control
<-97810-85971 |
97810-85971-5CZ |
— | ||
| replacement | |||||
|
30
|
30
97810-85900-5PK SWITCH,DUMP CONTROL(BLACK)<-97810-85971 |
97810-85900-5PK |
US $48.58 |
||
|
31
|
31
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
32
|
32
95572-79640-000
Relay, damp switch
|
95572-79640-000 |
— | ||
| replacement | |||||
|
32
|
32
95572-79641-000 RELAY,A/C |
95572-79641-000 |
US $42.69 |
||
