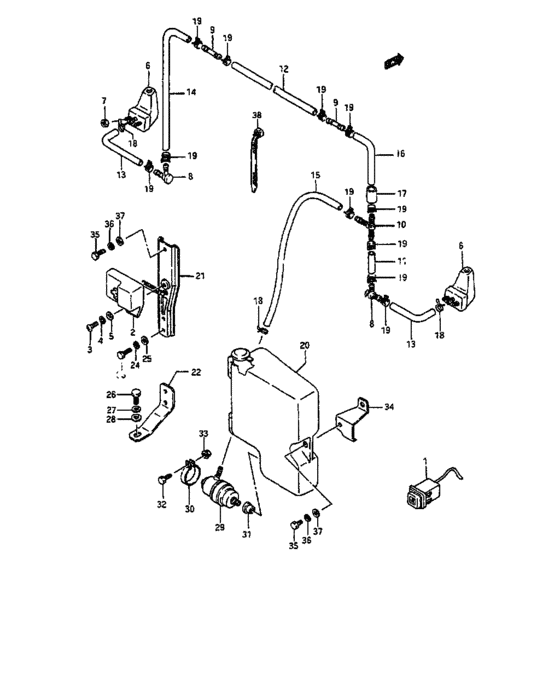

Head lamp cleaner (Finland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37930-80010-000
Switch assy, cleaner
|
37930-80010-000 |
— | ||
|
2
|
2
38630-80000-000
CONTROLLER ASSY,WASHER
|
38630-80000-000 |
— | ||
|
3
|
3
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
3
|
3
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
4
|
4
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
6
|
6
39110-85000-000
Nozzle assy, cleaner
|
39110-85000-000 |
— | ||
|
7
|
7
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
39121-85000-000 VALVE ASSY,CHECK |
39121-85000-000 |
US $9.57 |
||
|
9
|
9
39122-82000-000
Joint
|
39122-82000-000 |
— | ||
|
10
|
10
39122-85000-000
JOINT
|
39122-85000-000 |
— | ||
|
11
|
11
39123-85000-000
HOSE,L:50
|
39123-85000-000 |
— | ||
|
12
|
12
39124-85000-000
Hose
|
39124-85000-000 |
— | ||
| replacement | |||||
|
12
|
12
39123-56B00-000 HOSE,L:660 |
39123-56B00-000 |
US $13.62 |
||
|
13
|
13
39125-85000-000
Hose
|
39125-85000-000 |
— | ||
|
14
|
14
39126-85000-000
Hose
|
39126-85000-000 |
— | ||
|
15
|
15
39127-85000-000
Hose
|
39127-85000-000 |
— | ||
|
16
|
16
39128-85000-000
Hose
|
39128-85000-000 |
— | ||
|
17
|
17
39129-85000-000
Protector
|
39129-85000-000 |
— | ||
|
18
|
18
39193-82000-000 CLIP |
39193-82000-000 |
US $1.84 |
||
|
19
|
19
39193-85000-000
Clip
|
39193-85000-000 |
— | ||
|
20
|
20
39131-79000-000
Tank assy, head lamp washer
|
39131-79000-000 |
— | ||
|
21
|
21
39133-85000-000
Bracket assy
|
39133-85000-000 |
— | ||
|
22
|
22
39134-85000-000
Bracket assy
|
39134-85000-000 |
— | ||
|
23
|
23
01107-06165-000
Bolt
|
01107-06165-000 |
— | ||
| replacement | |||||
|
23
|
23
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
24
|
24
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
25
|
25
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
26
|
26
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
27
|
27
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
28
|
28
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
28
|
28
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
28
|
28
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
29
|
29
39141-85000-000
MOTOR ASSY
|
39141-85000-000 |
— | ||
|
30
|
30
39142-85000-000
Bracket, motor
|
39142-85000-000 |
— | ||
|
31
|
31
39143-80000-000 PACKING,MOTOR |
39143-80000-000 |
US $2.91 |
||
|
32
|
32
01107-06205-000
Bolt
|
01107-06205-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
33
|
33
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
33
|
33
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
34
|
34
39138-85001-000
Bracket, cleaner side
|
39138-85001-000 |
— | ||
|
35
|
35
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
35
|
35
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
36
|
36
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
36
|
36
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
37
|
37
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
38
|
38
09407-18402-000 CLAMP(L:165)Clamp (l:165) <-09407-14301 |
09407-18402-000 |
from US $1.98 |
||
