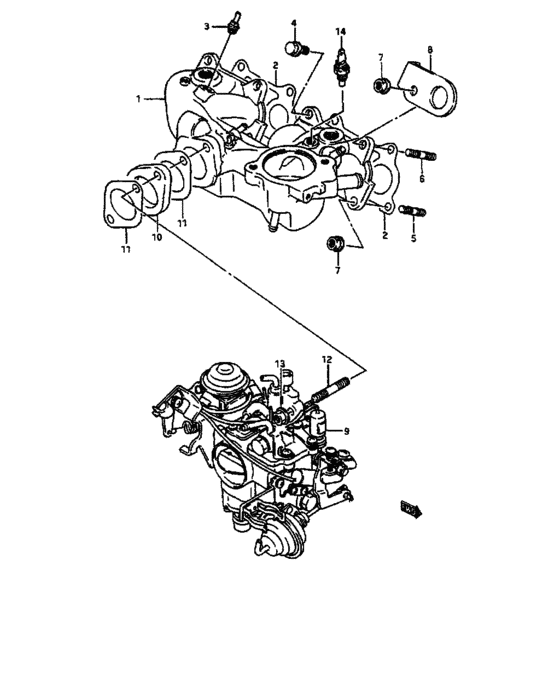

Intake manifold and carburetor (TYPE 2:Switzerland, Austria) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-85270-000
Manifold, intake
|
13110-85270-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-85X55-000
MANIFOLD,INTK
|
13110-85X55-000 |
— | ||
|
2
|
2
13119-73001-000
Gasket, intake menifold
|
13119-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
13119-73001-H17 GASKET,INTK MANF |
13119-73001-H17 |
US $2.24 |
||
|
3
|
3
95562-78190-000
ユニオン,バキュームホース
|
95562-78190-000 |
— | ||
| replacement | |||||
|
3
|
3
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
4
|
4
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
5
|
5
01411-08203-000
Stud 8x20
|
01411-08203-000 |
— | ||
| replacement | |||||
|
5
|
5
01411-0820B-000 BOLT,STUD |
01411-0820B-000 |
US $1.12 |
||
|
6
|
6
01411-08253-000
New Genuine Part
|
01411-08253-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0825A-000 BOLT,STUD |
01411-0825A-000 |
US $1.12 |
||
|
7
|
7
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
11851-79100-000
フック,エンジン
|
11851-79100-000 |
— | ||
| replacement | |||||
|
8
|
8
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
13200-85250-000
Carburetor assy
|
13200-85250-000 |
— | ||
| replacement | |||||
|
9
|
9
13200-85251-000
Carburetor assy
|
13200-85251-000 |
— | ||
|
10
|
10
13121-80000-000 INSULATOR,CARBURETOR |
13121-80000-000 |
US $15.20 |
||
|
11
|
11
13125-80000-000
Joint de bride
|
13125-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
13125-80000-H17
GASKET,CARB
|
13125-80000-H17 |
— | ||
|
12
|
12
09108-08169-000
Stud bolt
|
09108-08169-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.44 |
||
|
13
|
13
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
34850-82000-000
ゲージアッシ,ウォータテンパレチャ
|
34850-82000-000 |
— | ||
| replacement | |||||
|
14
|
14
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
