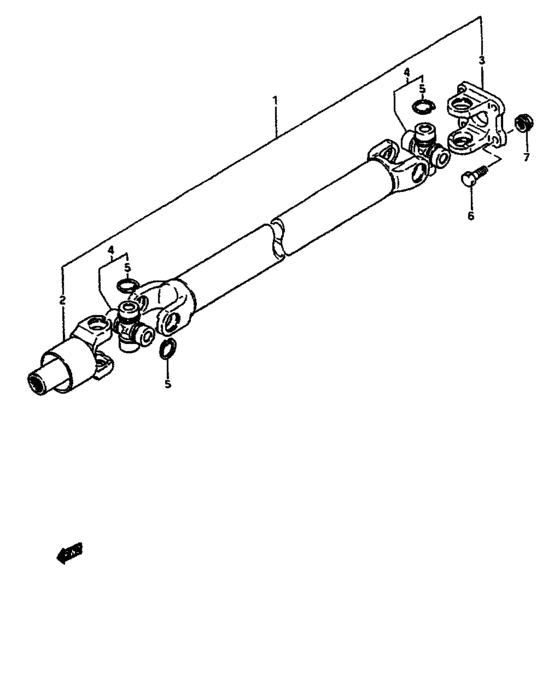

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27100-85202-000
Shaft assy, propeller
<-27100-85202 |
27100-85202-000 |
— | ||
| replacement | |||||
|
1
|
1
27100-85203-000
SHAFT ASSY,PROPELLER
<-27100-85202 |
27100-85203-000 |
— | ||
|
2
|
2
27140-83001-000 YOKE,SLIDING<-27140-83000 |
27140-83001-000 |
US $122.37 |
||
|
3
|
3
27131-83001-000 YOKE,CROSS JOINT FLANGE<-27131-83000 |
27131-83001-000 |
US $52.62 |
||
|
4
|
4
27200-83810-000
ジョイントアッシ,ユニバーサル
|
27200-83810-000 |
— | ||
| replacements | |||||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
|
4
|
4
27200-83813-000 Joint Set,universal |
27200-83813-000 |
US $57.60 |
||
|
5
|
5
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
5
|
5
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
09100-08172-000
Vis
|
09100-08172-000 |
— | ||
| replacement | |||||
|
6
|
6
09100-08270-000 BOLT(8X28) |
09100-08270-000 |
US $1.67 |
||
|
7
|
7
09159-08068-000
ナット
|
09159-08068-000 |
— | ||
| replacement | |||||
|
7
|
7
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
