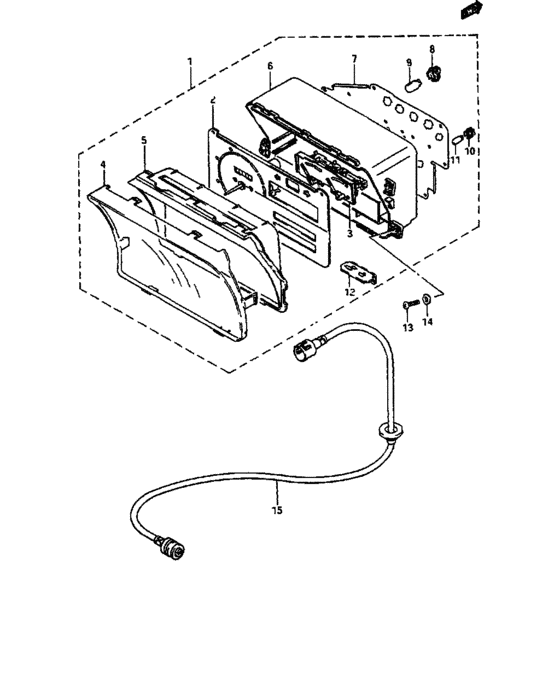

Speedometer (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-85180-000
Speedometer assy
TYPE 1:TA |
34100-85180-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 1:TA |
34100-85611-000 |
— | ||
|
1
|
1
34100-85560-000
Speedometer assy
TYPE 2:TA |
34100-85560-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 2:TA |
34100-85611-000 |
— | ||
|
1
|
1
34100-85200-000
Speedometer assy
TYPE 1:TA |
34100-85200-000 |
— | ||
|
1
|
1
34100-85570-000
Speedometer assy
TYPE 2:TA |
34100-85570-000 |
— | ||
|
1
|
1
34100-85190-000
Speedometer assy
TYPE 1:TX |
34100-85190-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 1:TX |
34100-85611-000 |
— | ||
|
1
|
1
34100-85580-000
Speedometer assy
TYPE 2:TX |
34100-85580-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 2:TX |
34100-85611-000 |
— | ||
|
1
|
1
34100-85210-000
Speedometer assy
TYPE 1:TX |
34100-85210-000 |
— | ||
|
1
|
1
34100-85590-000
Speedometer assy
TYPE 2:TX |
34100-85590-000 |
— | ||
|
1
|
1
34100-85130-000
Speedometer assy
TYPE 1:, Ireland |
34100-85130-000 |
— | ||
|
1
|
1
34100-85600-000
Speedometer assy
TYPE 2:, Ireland |
34100-85600-000 |
— | ||
|
1
|
1
34100-85140-000
Speedometer assy
TYPE 1:, Finland, Norway, Switzerland,,Belgium, Germany, Holland, Austria, Israel |
34100-85140-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 1:, Finland, Norway, Switzerland,,Belgium, Germany, Holland, Austria, Israel |
34100-85611-000 |
— | ||
|
1
|
1
34100-85610-000
Speedometer assy
TYPE 2:, Finland, Norway, Switzerland, Belgium,,Germany, Holland, Denmark, Italy, Austria, Israel |
34100-85610-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-85611-000
Speedometer assy,comb
TYPE 2:, Finland, Norway, Switzerland, Belgium,,Germany, Holland, Denmark, Italy, Austria, Israel |
34100-85611-000 |
— | ||
|
1
|
1
34100-85270-000
Speedometer assy
TYPE 1:Saudi Arabia |
34100-85270-000 |
— | ||
|
1
|
1
34100-85630-000
Speedometer assy
TYPE 2:Saudi Arabia |
34100-85630-000 |
— | ||
|
2
|
2
34120-85140-000
Body assy,speedometer
TYPE 1 |
34120-85140-000 |
— | ||
|
2
|
2
34120-85560-000
Body, speedometer
TYPE 2 |
34120-85560-000 |
— | ||
| replacement | |||||
|
2
|
2
34120-85140-000
Body assy,speedometer
TYPE 2 |
34120-85140-000 |
— | ||
|
2
|
2
34120-85130-000
Body, speedometer
TYPE 1 |
34120-85130-000 |
— | ||
|
2
|
2
34120-85570-000
Body, speedometer
TYPE 2 |
34120-85570-000 |
— | ||
|
3
|
3
34320-85020-000 BODY ASSY,FUEL&TEMP |
34320-85020-000 |
US $89.79 |
||
|
4
|
4
34112-84000-000 GLASS |
34112-84000-000 |
US $17.60 |
||
|
5
|
5
34111-84000-000
バイザ
|
34111-84000-000 |
— | ||
|
6
|
6
34151-85180-000
Case
TA |
34151-85180-000 |
— | ||
|
6
|
6
34151-85190-000
Case
TX |
34151-85190-000 |
— | ||
|
6
|
6
34151-84160-000
Case
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
34151-84160-000 |
— | ||
|
6
|
6
34151-85270-000
Case
Saudi Arabia |
34151-85270-000 |
— | ||
|
7
|
7
34152-84160-000
Print, meter
|
34152-84160-000 |
— | ||
| replacement | |||||
|
7
|
7
34152-85611-000
PLATE,PRINTED
|
34152-85611-000 |
— | ||
|
7
|
7
34152-85270-000
Plate, printed
Saudi Arabia |
34152-85270-000 |
— | ||
|
8
|
8
34173-64010-000
ソケット
<-34173-70220 |
34173-64010-000 |
— | ||
| replacement | |||||
|
8
|
8
34172-50E10-000 SOCKET<-34173-70220 |
34172-50E10-000 |
US $1.60 |
||
|
9
|
9
09471-12028-000 BULB(12V3.4W,T10) |
09471-12028-000 |
from US $1.98 |
||
|
10
|
10
34174-82100-000
ソケット
TA |
34174-82100-000 |
— | ||
| replacement | |||||
|
10
|
10
34175-78900-000 SOCKETTA |
34175-78900-000 |
US $1.52 |
||
|
11
|
11
09471-12055-000 BULB(14V1.4W,T5)TA |
09471-12055-000 |
from US $2.40 |
||
|
12
|
12
34154-84160-000
PLATE,HAZARD WARNING
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, Italy, Austria, Israel, 8 |
34154-84160-000 |
— | ||
|
12
|
12
34180-85270-000
Plate, seat belt warning
Saudi Arabia |
34180-85270-000 |
— | ||
|
13
|
13
03511-05168-000
スクリュ
|
03511-05168-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
14
|
14
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
15
|
15
34910-85000-000
Cable assy, speedometer
|
34910-85000-000 |
— | ||
| replacement | |||||
|
15
|
15
34910-85001-000
CABLE ASSY,SPEEDOMETER
|
34910-85001-000 |
— | ||
